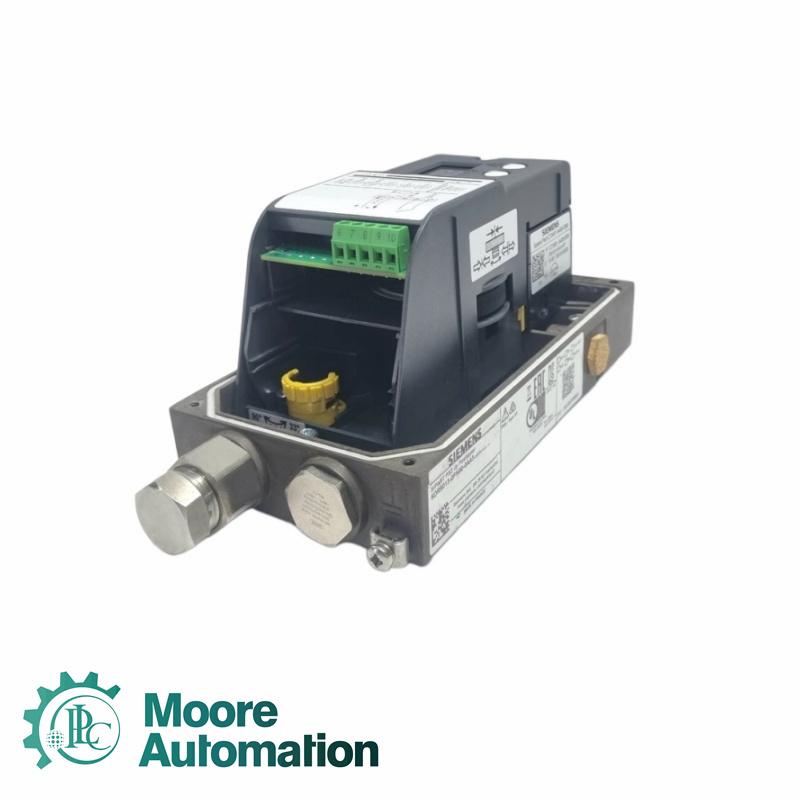

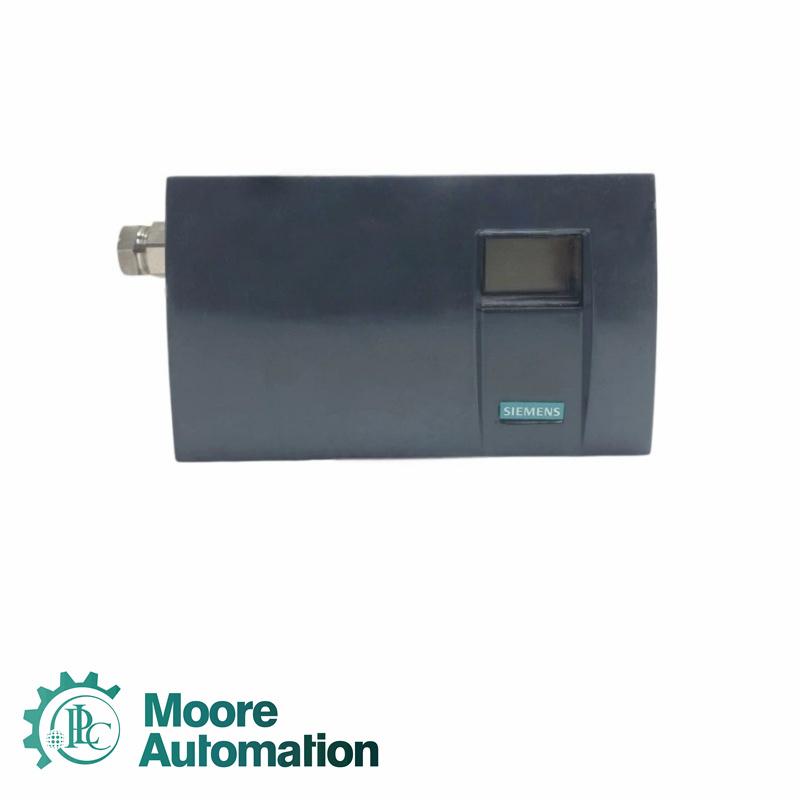

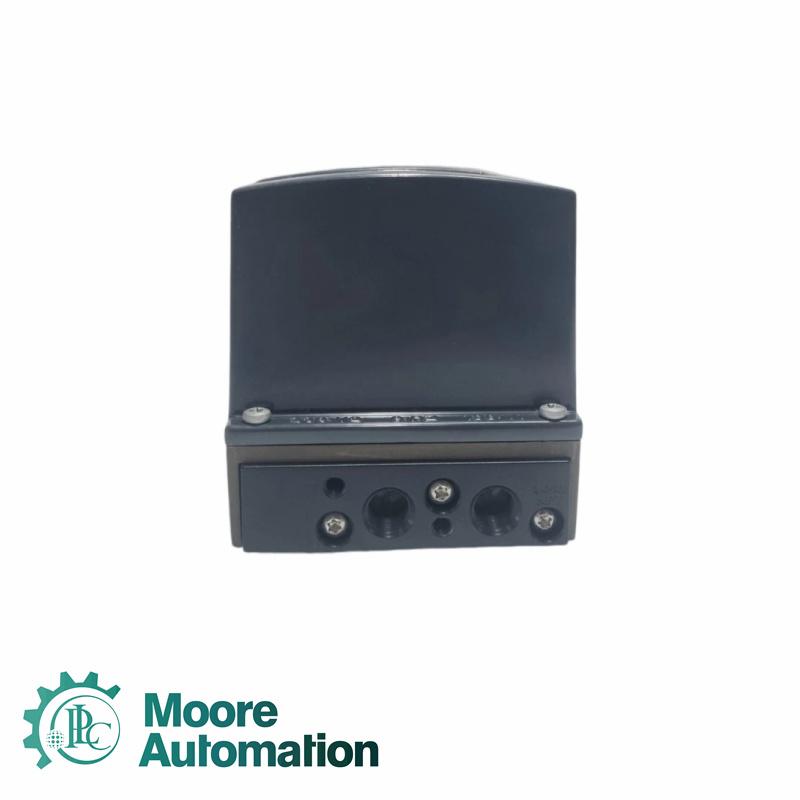

Siemens 6DR5013-0FN00-0AA3 electropneumatic positioner
The 6DR5013-0FN00-0AA3 positioner is used to adjust and control pneumatic actuators. The positioner can be used to control valves as follows: with linear actuator or with part-turn actuator VDI/VDE 3845. Different mounting types are available for linear actuators:NAMUR or IEC 534, integrated mounting to ARCA, integrated mounting to SAMSON (non-explosion-proof version). This means the positioner can be installed and operated on all common actuator systems.
|
Sale Manager: |
Email: |
Mobile(WhatsApp): |
|
John Yang |
Specification Highlights
Model:
6DR5013-0FN00-0AA3
Weight:
1.6 kg
Signal:
4...20 mA
Actuator Type:
Ex/Non-Ex, single-acting
Enclosure Material:
Aluminum
Position Detection:
Non-contacting (wear-free) NCS
Explosion Protection:
Standard without explosion protection
Minimum Current to Maintain Power Supply:
≥ 3.6 mA
Permissible Ambient Temperature:
-30 to +80 °C (-22 to +176 °F)
Travel Range (Linear Actuators):
3 to 130 mm (0.12 to 5.12 inch)
Angle of Feedback Shaft (Linear Actuators):
16 to 90°
Angle of Rotation (Part-turn Actuators):
30 to 100°
Pressure Gauge Block:
Aluminium AIMgSi, anodized
Vibration Resistance (Sine-wave, Harmonic Oscillations):
2–27 Hz: 3.5 mm, 3 cycles/axis; 27–300 Hz: 98.1 m/s², 3 cycles/axis
A/D Converter Scan Time:
10 ms
A/D Converter Resolution:
≤ 0.05%
Transmission Error:
≤ 0.2%
Temperature Effect:
≤ 0.1% per 10 K (≤ 0.1% per 18 °F)
Cycle Time:
20 mA/HART device: 20 ms; PA device: 60 ms; FF device: 60 ms (min. loop time)
Binary Input BE1:
Suitable only for floating contact; max. contact load < 5 mA with 3 V
Actuator Types Supported:
Plastic casing: single/double-action; Aluminium casing: single-action; Flameproof casing: single/double-action; Stainless steel casing: single/double-action
★Your choice, our service ★Your trust, our quality ★Your satisfaction, our pursuit
If you want to more details，please contact me without hesitate.
Email: sales3@askplc.com Mobile(WhatsApp): 86-18150117685
Application:
Offshore platforms and ships: Resistant to salt spray corrosion.
Food and pharmaceutical industries: Meets frequent rinsing and hygiene requirements.
Chemical and paper industries: Resists acid and alkali corrosive atmospheres.
General industries: Improves the positioning accuracy of pneumatic control valves and reduces compressed air waste.
Maintenance:
Internal motion cycle generation.Positioner in metal housing and explosion proof version
1. Switch off the pneumatic power supply and remove the pipes.
2. Remove the metal filters carefully from the holes and clean (e.g. with compressed air).
3. Insert the filters.
4. Re-connect the pipes and supply pneumatic energy.
Positioner in plastic housing Removal
1. Switch off the pneumatic power supply and remove the pipes.
2. Unscrew the cover
3. Remove the three screws from the pneumatic connector strip.
4. Remove the filters and O-rings behind the connector strip.
5. Clean the filters (e.g. with compressed air).
Installation
6. First insert the filters in the recesses in the plastic housing and then
place the O-rings on the filters.
7. Align the pneumatic connector strip on the two lugs and screw tight
with the three self--tapping screws.
Internal oscilloscope function.
FAQ
Q: What is the 6DR5013-0FN00-0AA3?
A: It is an electropneumatic positioner.
Q: Does this 6DR5013-0FN00-0AA3 have 4-20mA feedback?
A: This basic model does not have built-in position feedback. For feedback functionality, a 6DR4004-8J module (Iy module) needs to be added.
Q: Can 6DR5013-0FN00-0AA3 be modified to a double-acting position?
A: No. Single-acting and double-acting pneumatic circuit boards have different structures and are not interchangeable.
Q: Why is the display off of 6DR5013-0FN00-0AA3?
A: Check if the input current is below 3.6 mA. This positioner draws power from a 4-20mA signal line; insufficient current will prevent it from operating.
Q: Do you offer any discounts?
A: Yes! For discounts on 6DR5013-0FN00-0AA3, please contact John for the best offer on Email: sales3@askplc.com or Mobile(WhatsApp): 86-18150117685.
