SIEMENS 6AV6648-0EC11-3AX0 SIMATIC HMI SMART 700 IE V5

│Contact us│

Sales manager: Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

│Basic Information │

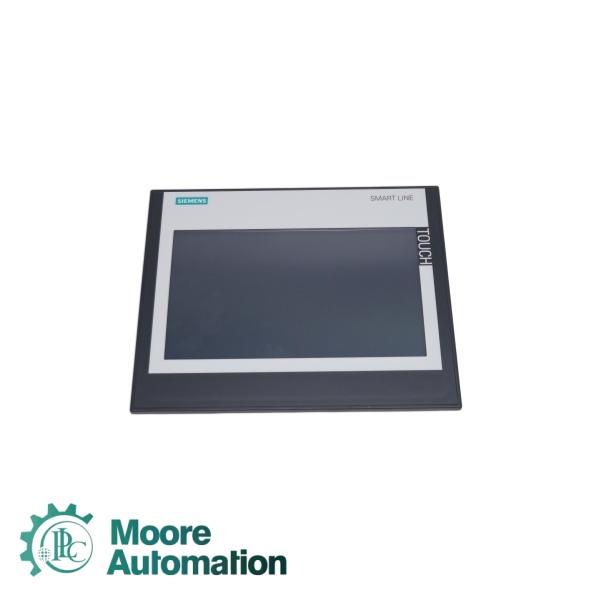

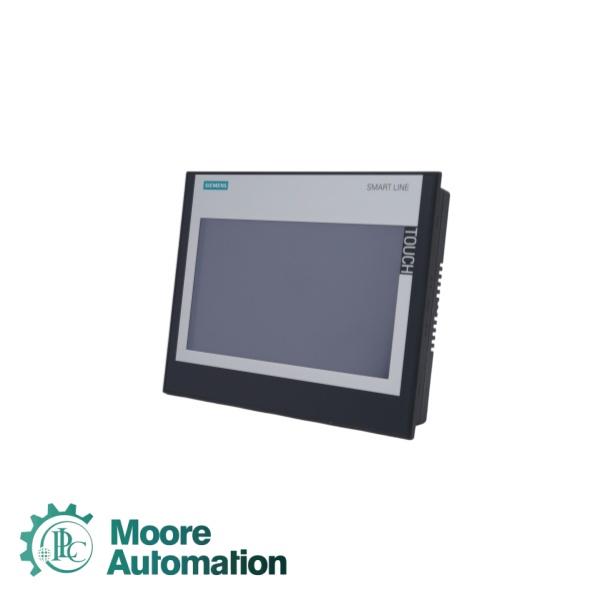

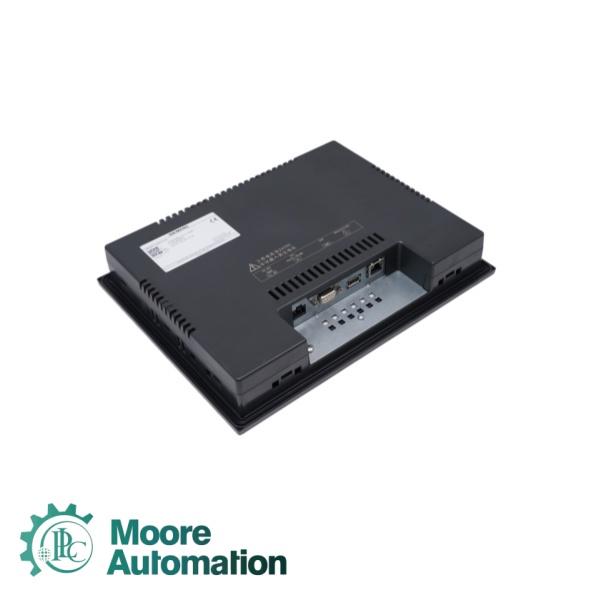

The Siemens 6AV6648-0EC11-3AX0 is a high-efficiency industrial Human Machine Interface (HMI) widescreen touch panel belonging to the specialized SIMATIC HMI SMART V5 family. Outfitted with a vibrant 7-inch TFT display showing up to 16 million colors, it is engineered to deliver crisp visualization and intuitive operator-level machine control in cost-sensitive automation environments. The panel features diverse communication choices, including a dual-purpose RS-422/485 serial interface, an isolated RS-232 port, and a standard RJ45 Ethernet interface to connect seamlessly to host PLCs (most notably the SIMATIC S7-200 SMART series). Configured using the WinCC flexible SMART software platform, this panel handles complex logging, trend plotting, recipe administration, and real-time process monitoring, making it a rugged, competitive hardware option for basic to mid-range industrial operations.

│Details│

Screen Diagonal: 7.0 inches

Display Color Depth: 16,000,000 colors

Display Resolution: 800 x 480 pixels

Ethernet Ports: 1 x RJ45 (10/100 Mbit/s)

USB Ports: 1 x USB 2.0 Host (Type A)

Nominal Supply Voltage: 24 VDC

Configuration Software Minimum: WinCC flexible SMART V3 or newer

│Applications│

➟ Packaging and Labeling Machinery: Serves as the localized operator interface on high-speed bottling, wrapping, and boxing machines to let technicians monitor throughput speeds and execute system start/stop routines.

➟ Water and Wastewater Treatment Control: Deployed on water purification skids and pump control panels to display real-time tank level levels, valve positions, and flow meter metrics via color-coded graphics.

➟ HVAC and Building Automation Systems: Integrated into commercial building management cabinets to oversee centralized chiller, boiler, and air handler parameters, enabling manual temperature setpoint adjustments.
