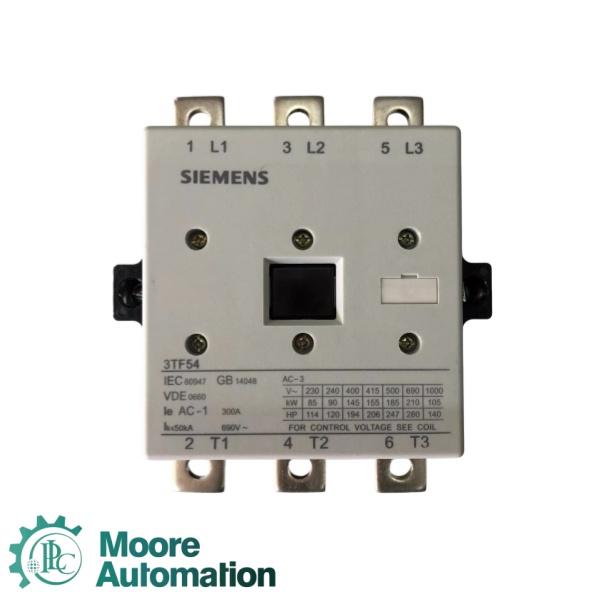

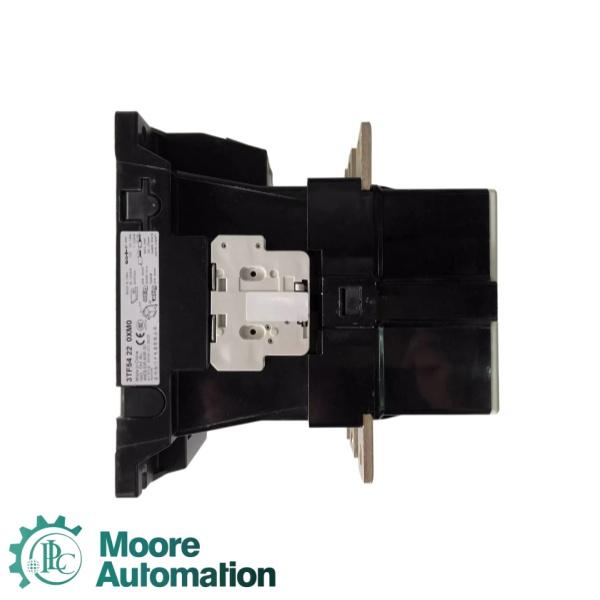

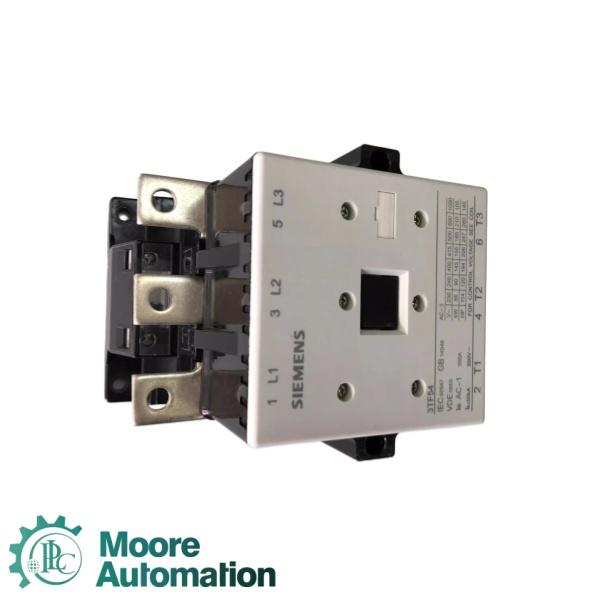

SIEMENS 3TF5422-0XM0 3TF54 22-0XM0 Contactor

--- PLEASE CONTACT FOR DETAILS

Sales manager : Yuki Huang

Email : sales6@askplc.com

WhatsApp : +86 17359287459

--- Item specifics

The Siemens 3TF5422-0XM0 is a 3-pole, industrial-grade power contactor engineered for heavy-duty motor switching and electrical distribution applications. Belonging to the SICOP/World Series product family, it features an integrated auxiliary switch block configured with 2 Normally Open (NO) and 2 Normally Closed (NC) safety contacts. The mechanical design incorporates a "positively driven" contact architecture, meaning the auxiliary NC contacts are mechanically prevented from closing if the main power contacts weld together, providing vital structural safety for emergency stop and automation circuits.

---Data Info

·Rated Operational Current: 250 Amps

·Rated Insulation Voltage: Up to 1000 V AC

·Coil Operating Voltage: 220 V AC at 50Hz

·Motor Power Rating: 132 kW

·Operational Temperature Bounds: -25°C to +55°C

---FAQ

Q1: What are Siemens' primary business areas and fields of operation?

A1: Siemens is a leading technology company focused on four core business areas: industry (digital industry and automation), infrastructure (intelligent infrastructure and smart buildings), mobility (rail transport solutions), and healthcare (through Siemens Healthineers, a separately publicly listed company majority-owned by Siemens) .

Q2: What are Siemens' proprietary technologies in power electronics and grid protection?

A2: Siemens has developed advanced power electronics including an optimized clocked buck-boost converter with dual switch elements and a regulating unit that generates separate control signals for buck and boost modes, enabling efficient input-to-output voltage conversion. For grid protection, Siemens has pioneered an optimized protection system using grid-protection units (GPUs) that detect fault signals and disconnect power lines or generation units, combined with inverter-based resource supervisory controllers (IBR SC) that are co-optimized through a protection system co-optimizer to maximize dependability, security, and operation speed during grid faults. The company also offers dynamic isolators that monitor voltage differences across busbars and automatically connect or disconnect electrical groups based on real-time conditions.

Q3: How does Siemens implement diagnostic fault handling in SIMATIC PLC systems through organization blocks?

A3: Siemens SIMATIC PLCs (S7-300/400/1500) use dedicated fault organization blocks for real-time system diagnostics: OB82 handles diagnostic interrupts (e.g., wire break detection on I/O modules), OB83 manages module insertion/removal interrupts (for PROFINET IO devices), and OB86 processes rack or PROFINET station failures. These blocks contain 20 bytes of temporary variables including OB82_MDL_ADDR , OB82_MDL_TYPE , and OB82_DATE_TIME for timestamping, allowing engineers to write diagnostic routines that capture fault details and safely condition outputs to prevent hazardous states during maintenance .
