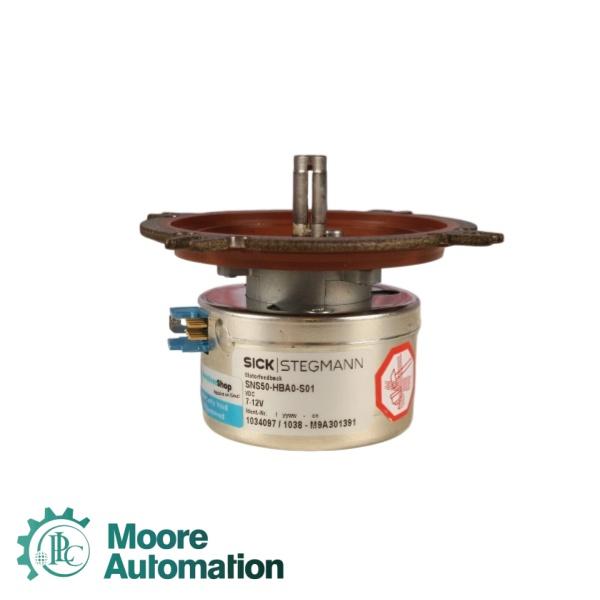

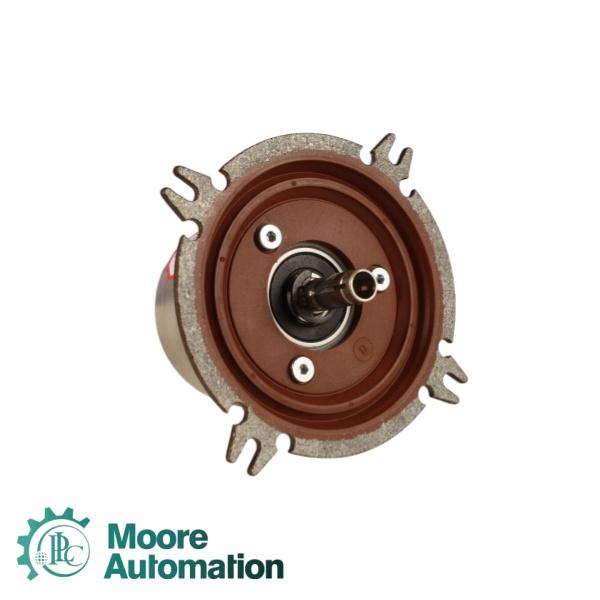

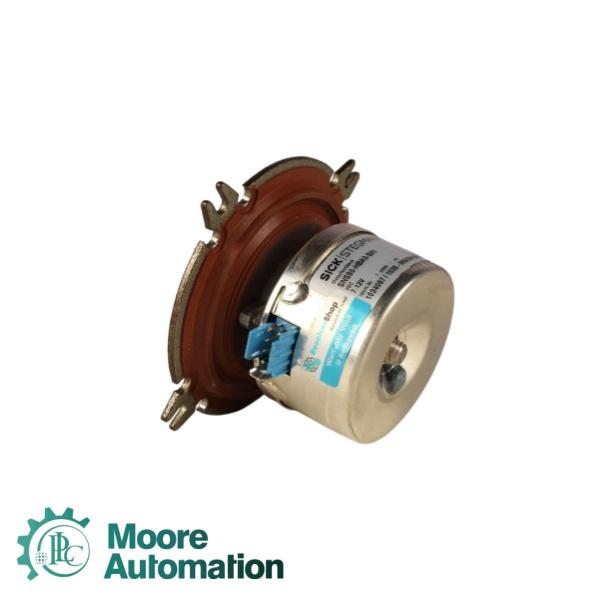

Sick SNS50-HBA0-S01 Encoder

Contact Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

Product Details

The SICK SNS50-HBA0-S01 Rotary Encoder is a heavy-duty industrial motor feedback system designed to deliver precise absolute and incremental position tracking for automated drive applications. Functioning via a dual-channel architecture, the module generates a high-resolution analog Sine/Cosine (SIN/COS) process data path combined with an RS-485 digital parameter communication channel. This dynamic combination allows the encoder to transmit real-time speed, rotation angle, and micro-positioning metrics while filtering localized line noise and mechanical vibration, ensuring exceptional motion control and synchronization inside servo-drive systems.

(1) Operating Supply Voltage: Operates on a standard DC voltage window rated at 7 to 12 VDC.

(2) Maximum Operational Speed: Hardened mechanical design supporting rotational frequencies up to 3,000 RPM to 6,000 RPM.

(3) Operating Temperature Range: Engineered to perform consistently across a wide industrial temperature span from -40°C to +105°C.

(4) SIN/COS Channel Resolutions: Features two software-selectable modes: 1024 periods per revolution and 1 period per revolution.

Application

❖ Servo Motor Velocity Feedback: Integrated directly into industrial AC brushless servo motors to provide precise dynamic shaft tracking and angle calculations for master drives.

❖ Robotic Articulation Control: Installed inside automated robotic arms and multi-axis CNC machines to govern high-accuracy position feedback during complex motion cycles.

❖ Synchronized Drive Startups: Utilizes its 1-period-per-revolution startup mode to securely establish raw component orientation before switching to high-resolution 1024-period tracking.

Faq

Q: What is SICK’s primary market positioning and core industry focus?

A: SICK is one of the world’s leading manufacturers of industrial sensors, safety systems, and automatic identification solutions. Founded in Germany in 1946, the company focuses on three macro-business segments:

· Factory Automation: Providing sensors for automotive, electronics, food & beverage, and consumer goods manufacturing.

· Logistics Automation: Designing complex sorting, tracking, and vision systems for airports, courier hubs, and automated warehouses.

· Process Automation: Delivering gas analyzers, dust monitors, and flowmeters for power plants, waste treatment, and maritime shipping.

Q: How does SICK support Industry 4.0 and Smart Manufacturing?

A: SICK bridges the gap between physical machinery and digital IT systems through its "Sensor Intelligence" initiative. Instead of just delivering raw data, SICK sensors are equipped with decentralized computing power (edge computing) to preprocess data directly on the device. By using open standards like IO-Link, OPC UA, and MQTT, SICK sensors enable predictive maintenance, self-diagnostics, and seamless cloud integration to optimize overall equipment effectiveness (OEE).

Q: What is SICK's strategy regarding sustainability and environmental monitoring?

A: SICK operates as a major enabler of global environmental compliance. Under its Green Efficiency initiative, the company manufactures advanced continuous emission monitoring systems (CEMS) that track greenhouse gases, toxic emissions, and marine exhaust. Internally, the brand enforces strict carbon-neutral manufacturing goals, prioritizing eco-friendly product design (using fewer materials and toxic substances) and maximizing energy efficiency across its worldwide production facilities.

Company Service

Fast delivery (1-2 days will ship out for in stock products)

Rich experience (Established more than 10 years)

Large inventory ( Various brands and overseas warehouse)

Quality insurance ( Clear products condition with 1 year warranty)
