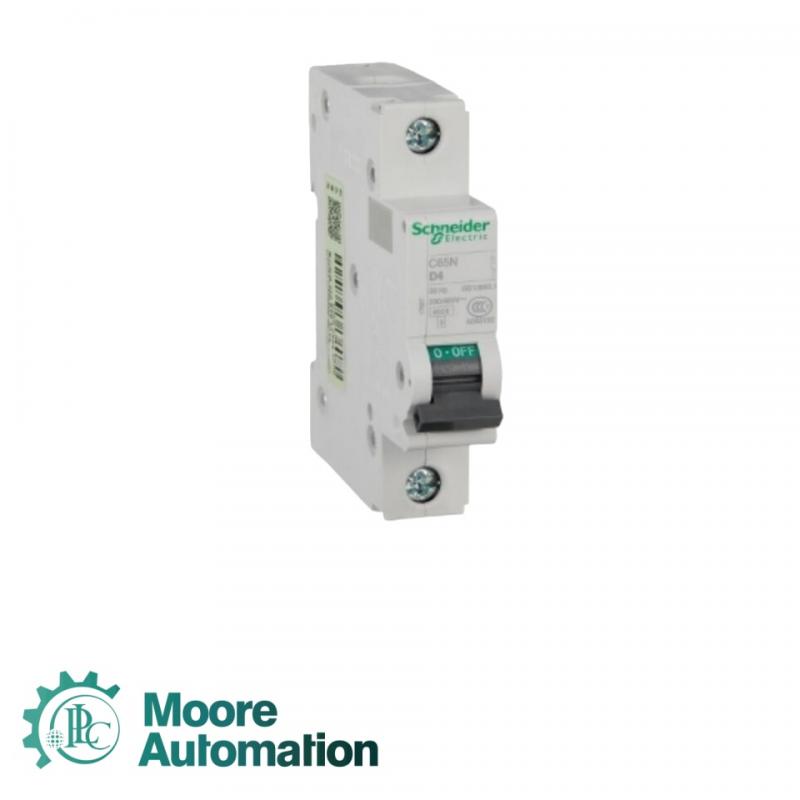

Schneider Multi 9 C65N D4 Circuit Breakers

Schneider Multi 9 C65N D4 Circuit Breakers

Brand:
Schneider
Order(MOQ):
1
Payment:
T/T
Product Origin:
Multi9 series
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

❖Please consult with John Yang

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

❖About the Product

The Schneider Multi 9 C65N D4 Circuit Breakers are high-performance miniature circuit breakers designed for the protection of electrical circuits in residential, commercial, and industrial applications. Engineered with Schneider Electric’s renowned reliability and safety standards, the C65N series provides precise overcurrent protection against short circuits and overloads, ensuring safe and uninterrupted operation of electrical systems.

❖Product Data

Polar number: 1P
Number of protection poles: 1
Rated current [In]: 4 A @ 30 ° C
Grid type: AC
Release type: thermal magnetic type
Release curve: D
Breaking capacity [Icn]: 6 kA @ 230 V AC in accordance with IEC 60898-1
Isolation function: compliant with IEC 60898-1
Grid frequency: 50-60 Hz
Rated operating voltage [Ue]: 230 V AC
Magnetic release limit: 10-14 × In
Using breaking capacity [Ics]: 6 kA 100% @ 230 V AC in accordance with IEC 60898-1
Current limiting level: 3 in accordance with IEC 60898-1
Rated impulse withstand voltage [Uimp]: 6 kV in accordance with IEC 60898-1
Contact position indication: Yes
Control type: joystick
Local signal indication: on/off indication
Installation type: Locking clip locking
Installation method: DIN rail installation
Height: 81 mm
Width: 18mm
Depth: 66 mm
Net weight: 110 g
Mechanical lifespan: 20000 cycles
Wiring capability: Tunnel terminal (upper or lower wiring) ≤ 25 mm ²
Tightening torque: Power circuit: 2.5 N · m (upper or lower wiring)
Leakage current protection: None
Compliant with standards: IEC 60898-1, GB 10963.1
Product certification: CCS, CCC
IP protection level: IP20
Pollution level: 3
Overvoltage category: IV
Moisture and heat resistance: 2 in accordance with IEC 60068-1
Relative humidity: 95% @ 55 ° C
Operating temperature: -30... 70 ° C
Packaging unit type: PCE
Packaging quantity: 1 piece/kg
Packaging dimensions (height x width x length): 8 x 9 x 1.8 cm
Packaging weight: 119.24 g

❖FAQ

Q1: What type of protection does the Multi 9 C65N D4 provide?
A1: The C65N D4 is a thermal-magnetic circuit breaker, providing protection against both overload (thermal release) and short-circuit (magnetic release) conditions.

Q2: What is the rated current of this circuit breaker?
A2: The rated current is 4 A at 30 °C.

Q3: How many poles does the C65N D4 have?
A3: This model is 1-pole (1P) with 1 protection pole.

Q4: What is the breaking capacity of the circuit breaker?
A4: The nominal breaking capacity (Icn) is 6 kA @ 230 V AC, fully compliant with IEC 60898-1. The using breaking capacity (Ics) is also 6 kA at 100% rating.
