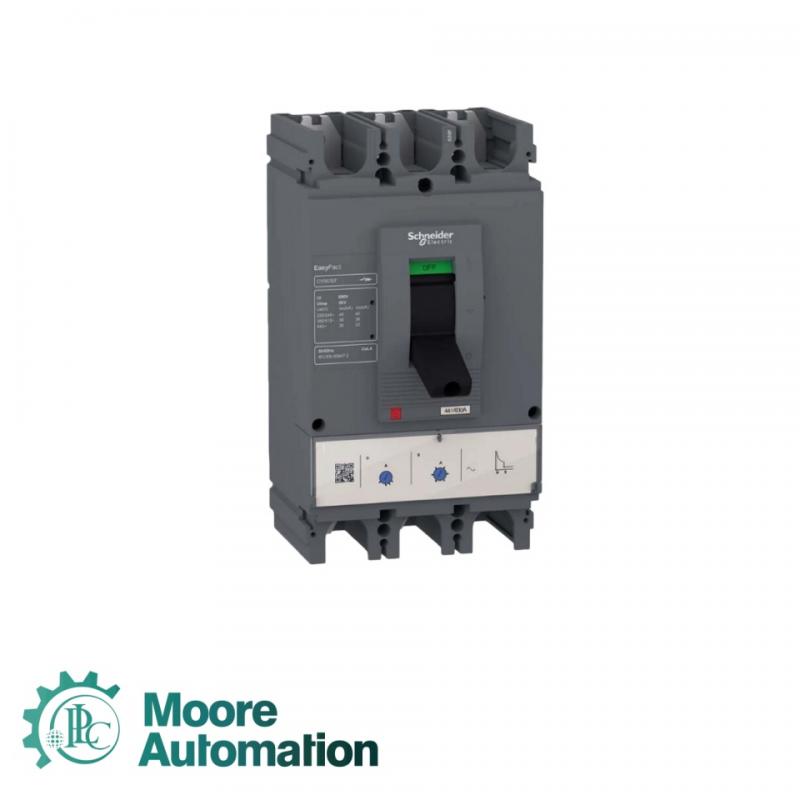

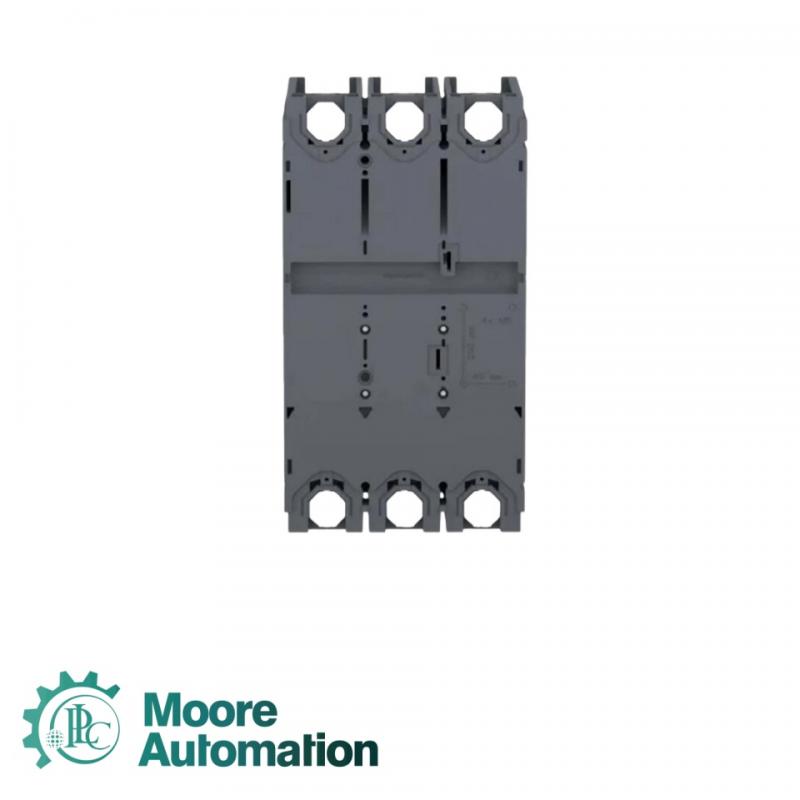

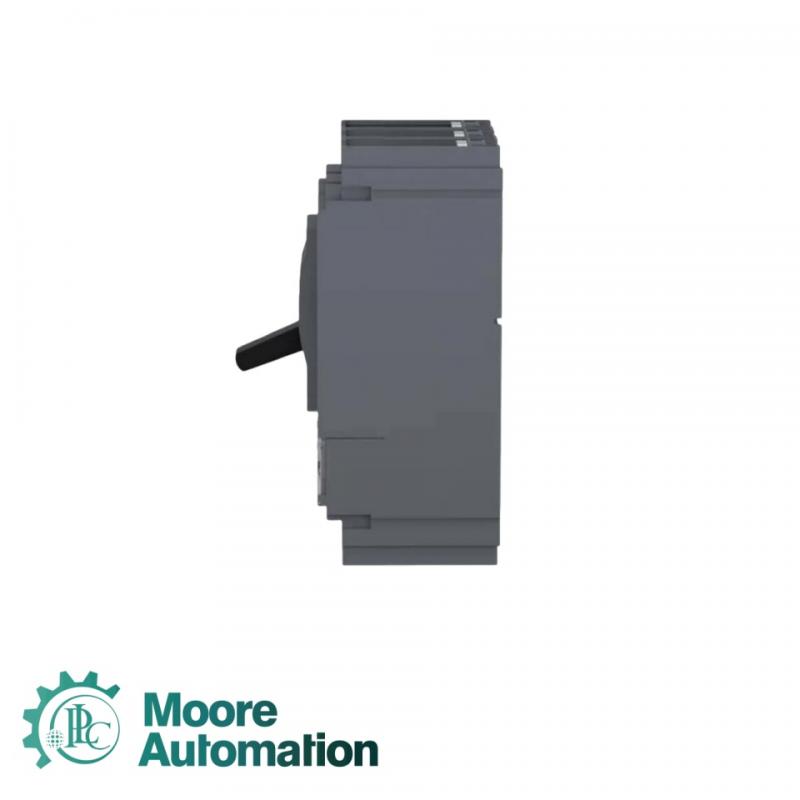

Schneider LV563306 circuit breaker

Details for LV563306

Rated current (In): 630 A
Rated operating voltage (Ue): 690 V AC (50/60 Hz)
Rated insulation voltage (Ui): 1000 V AC
Rated impulse withstand voltage (Uimp): 12 kV
Rated short-circuit breaking capacity (Icu): 65 kA @ 415 V AC
Rated operating short-circuit breaking capacity (Ics): 100% Icu
Pole number: 3P (three poles)/4P (four poles) optional
Control unit type: Micrologic 2.0/5.0/6.0 (configurable)
Release type: thermal magnetic+electronic release combination
Overload protection setting range: 0.4~1 × In
Short circuit instantaneous trip setting range: 5-10 × In
Working temperature range: -25 ℃ to+70 ℃
Storage temperature range: -40 ℃ to+85 ℃
Relative humidity: 5% to 95% (no condensation)
Altitude limit: ≤ 2000 meters

Schneider LV563306 is a circuit breaker  of Schneider Electric Masterpact NW series air circuit breakers, designed specifically for circuit protection, isolation, and control in medium and low voltage distribution systems. This model has excellent breaking capacity and reliable overload, short circuit, and ground fault protection performance, ensuring high safety and system continuity in complex industrial environments.
