Schneider ATV61HD75N4 Speed Control Drive

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
Schneider
Order(MOQ):
1
Payment:
T/T
Product Origin:
FRANCE
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
FRANCE
Lead Time:
3-5 days

Product Detail

INQUIRY YUKI

Email : sales6@askplc.com

Whatsapp : +86 17359287459

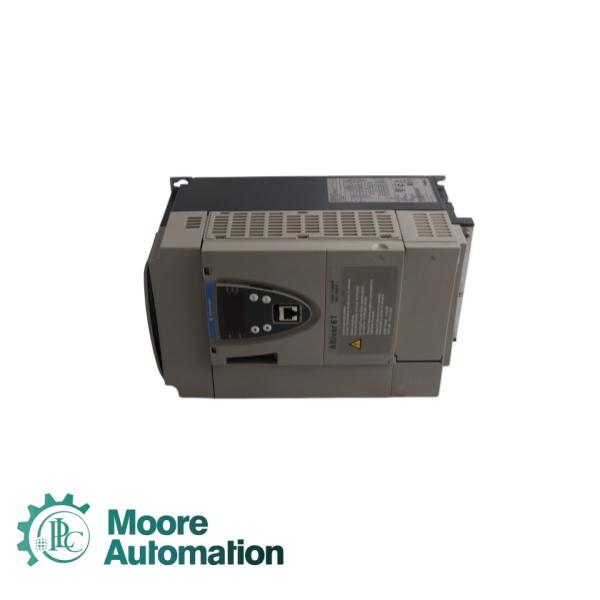

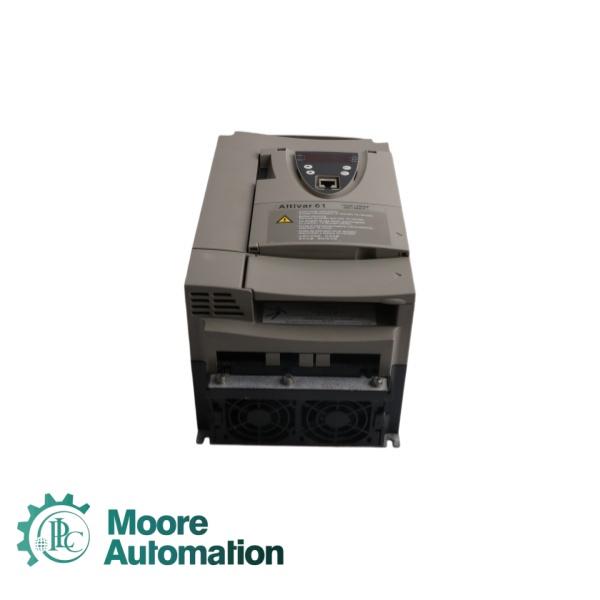

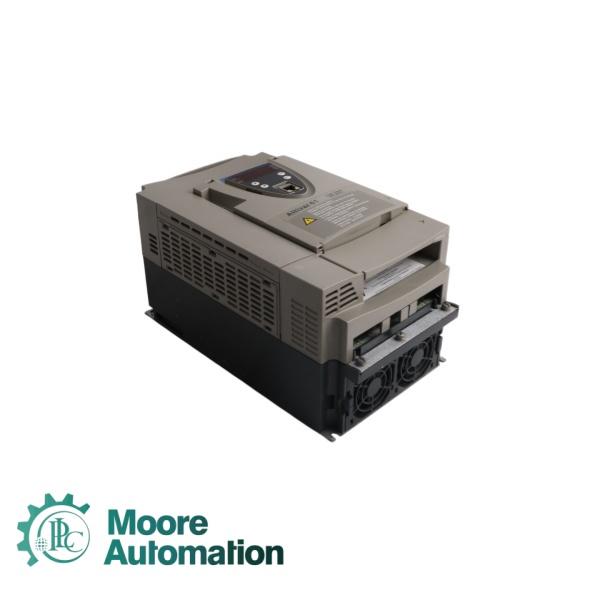

Schneider ATV61HD75N4

The Schneider Electric ATV61HD75N4 is a variable speed drive (VSD) from the Altivar 61 series, designed for three-phase asynchronous motors . It is specifically engineered for demanding pumping, ventilation, and HVAC applications in industrial and commercial buildings, with a strong emphasis on energy efficiency and user comfort .

Motor power kW	75 kW 3 phases at 380...480 V
Motor power hp	100 hp 3 phases at 380...480 V
Line current	137 A for 480 V 3 phases 75 kW / 100 hp 167 A for 380 V 3 phases 75 kW / 100 hp
Apparent power	109.9 kVA for 380 V 3 phases 75 kW / 100 hp
Prospective line Isc	22 kA 3 phases
Maximum transient current	192 A for 60 s 3 phases
Nominal switching frequency	12 kHz
Switching frequency	1...16 kHz adjustable 12...16 kHz with derating factor
Asynchronous motor control profile	Voltage/Frequency ratio, 2 points Voltage/Frequency ratio, 5 points Flux vector control without sensor, standard Voltage/Frequency ratio - Energy Saving, quadratic U/f
Supply voltage limits	323...528 V
Supply frequency	50...60 Hz (- 5...5 %)
Continuous output current	124 A at 12 kHz, 460 V 3 phases 160 A at 12 kHz, 380 V 3 phases

FAQ

Q1. What are some of the major product families offered by Schneider Electric?
Schneider Electric offers widely recognized product families including Modicon PLCs for industrial control, Altivar variable frequency drives, Telemecanique contactors and relays, Merlin Gerin circuit breakers and switchgear, Square D electrical distribution products, APC uninterruptible power supplies, and Clipsal wiring devices.

Q2. How does Schneider Electric help customers improve energy efficiency?
Schneider Electric helps customers improve energy efficiency through its EcoStruxure platform, which uses IoT-enabled sensors, smart meters, variable speed drives, and analytics software to monitor, control, and reduce energy consumption by up to 30 percent, particularly in motor-driven applications like pumps, fans, and compressors.

Q3. What is Schneider Electric known for in the industrial automation and energy management sectors?

Schneider Electric is a global leader in energy management and industrial automation, known for delivering integrated solutions that connect hardware, software, and services to optimize efficiency, reliability, and sustainability across industries such as manufacturing, infrastructure, data centers, and commercial buildings.
