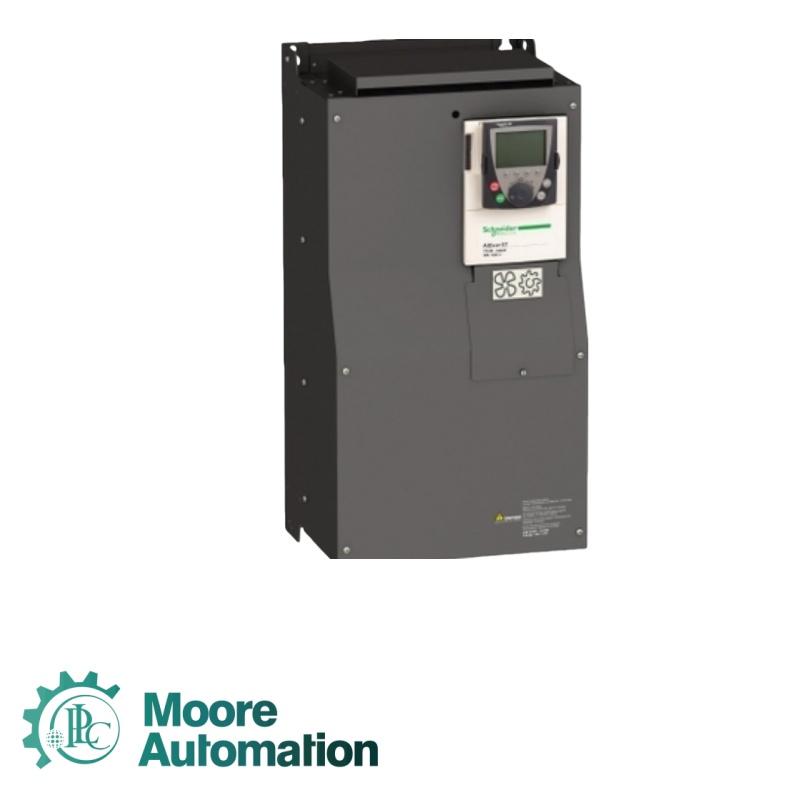

Schneider ATV61HD45N4 variable speed drive

Product Name:ATV61HD45N4

Brand Name:Schneider

Product Origin:France

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

✅ Email: sales3@askplc.com

✅ Mobile(Whats App): 86-18150117685

Motor Power (kW): 45 kW, 3-phase at 380...480 V
Motor Power (hp): 60 hp, 3-phase at 380...480 V
Power Supply Voltage: 380...480 V - 15...10 %
Supply Number of Phases: 3-phase
Line Current: 104 A 380 V 3-phase 45 kW / 60 hp; 85 A 480 V 3-phase 45 kW / 60 hp
EMC Filter: Class 3 EMC Filter
Mounting Style: With Heat Sink
Apparent Power: 68.5 kVA at 380 V 3-phase 45 kW / 60 hp
Maximum Prospective Line Isc: 22 kA 3-phase
Maximum Transient Current: 112.8 A for 60 seconds, 3-phase
Rated Switching Frequency: 12 kHz
Switching Frequency: 1...16 kHz Adjustable; 12...16 kHz with Derating Factor
Asynchronous Motor Control: Sensorless Flux Vector Control, Standard; Voltage/Frequency Ratio, 5-point; Voltage/Frequency Ratio, 2-point; Voltage/Frequency Ratio - Energy Saving, Secondary U/f
Synchronous Motor Control Configuration: Vector Control, Sensorless, Standard
Communication Port Protocol: Modbus; CANopen
Polarization Category: Impedance-Free Modbus
Option Cards: Communication Card Remote Location FLN; Communication Card BACnet; Communication Card CC-Link; Programmable Card Controller; Communication Card DeviceNet; Communication Card Ethernet/IP; Communication Card Fipio; I/O Expansion Card; Communication Card Interbus-S; Communication Card LonWorks; Communication Card METASYS N2; Communication Card Modbus Plus; Communication Card Modbus TCP; Communication Card Modbus/Uni-Telway; Multi-Pump Card; Communication Card Profibus DP; Communication Card Profibus DP V1
Additional Information - Product Target: Synchronous Motor; Asynchronous Motor
Power Supply Voltage Limits: 323…528 V
Power Supply Frequency: 50...60 Hz - 5...5 %
Power Supply Frequency Limits: 47.5...63 Hz
Continuous Output Current: 77 A at 12 kHz, 460 V - 3-phase; 94 A at 12 kHz, 380 V - 3-phase
Output Frequency: 0.1…500 Hz
Speed Range: 1…100 in Open-Loop Mode, No Speed Feedback
Speed Accuracy: +/- 10 % Rated Slip from 0.2 Tn to Tn, No Speed Feedback
Torque Accuracy: +/- 15 % in Open-Loop Mode, No Speed Feedback
Transient Overload: 130 % Rated Motor Torque +/- 10 % for 60 Seconds
