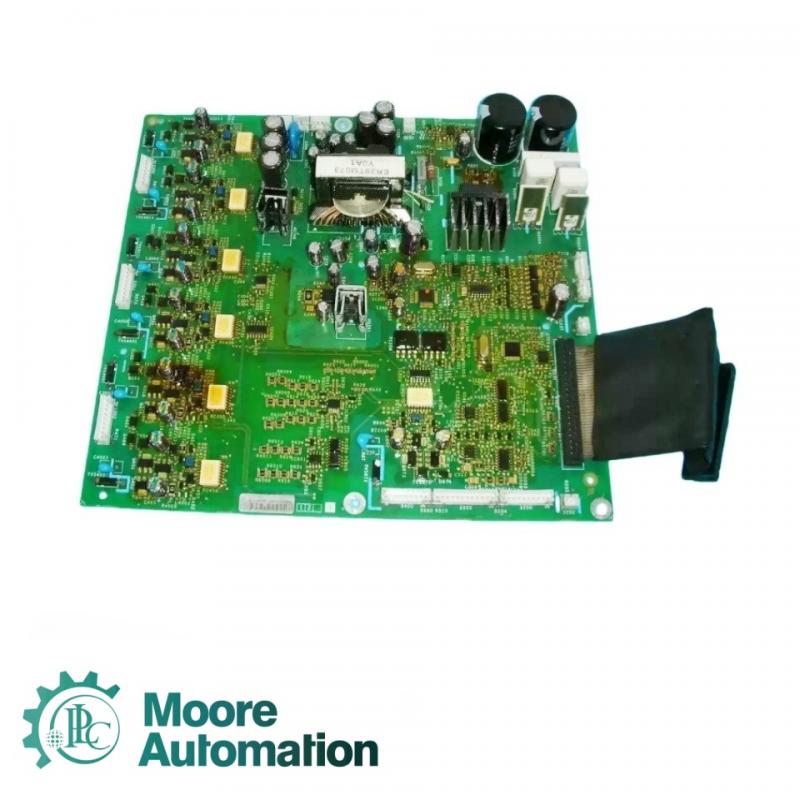

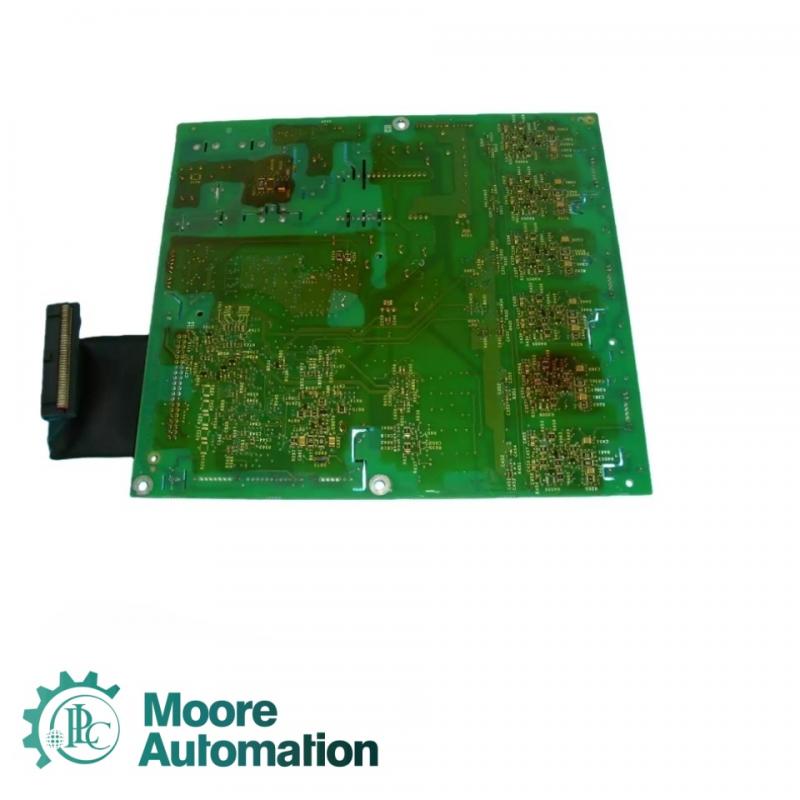

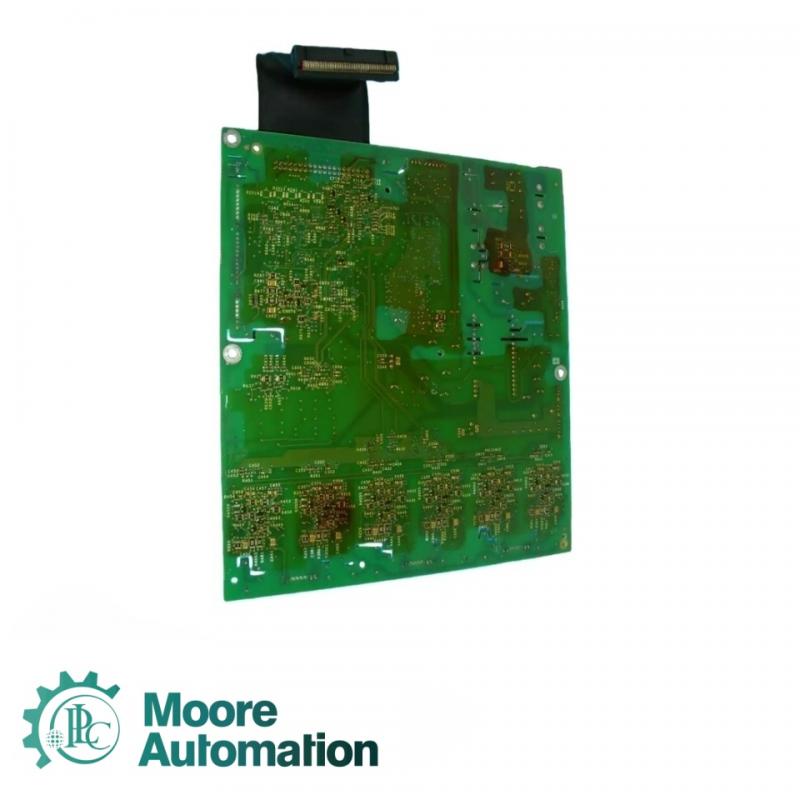

Schneider 14857822311A03 W814857810112A03 Control Board

Schneider 14857822311A03 W814857810112A03 Control Board

Schneider 14857822311A03 W814857810112A03 Control Board

Brand:
Schneider
Order(MOQ):
1
Payment:
T/T
Product Origin:
France
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Item Info

Product Name:14857822311A03 W814857810112A03	Order(MOQ): 1
Brand:Schneider	Payment: T/T
Product Origin:France	Shipping Port: Xia men

Name:John Yang
Email:sales3@askplc.com
Mobile(Whats App):86-1815011768

Product Info

This board is typically used as the internal control unit for Altivar series (such as ATV61/ATV71, etc.) frequency converters, responsible for core logic operations, parameter storage, input/output signal processing, and driving interfaces with power components of the equipment.

key Info

Product Model：14857822311A03 W814857810112A03

Purpose/Type：Control Board

Supply voltage: 300-800 V DC

Power frequency: 50 Hz or 60 Hz

Usage humidity range: usually ≤ 95% RH without condensation

Brand：Schneider

Pollution level: generally ≤ Pollution level 2

Allowable deviation/fluctuation of power supply voltage: ± 10%/± 10-15%. Common range

Power consumption: ≤ 15 W

FAQ

Q1: What are the special precautions during installation?
A1: Install in power-off state and confirm that all connectors and slots are oriented correctly; Use anti-static measures (such as anti-static wristbands) and do not operate in high temperature or strong vibration environments.

Q2: Can the control board be replaced by itself?
A2: Can be replaced, but it is recommended to have a qualified engineer perform it:

Q3: What should be noted when storing?

A3: Keep dry, humidity<60%;Temperature control within -25~+70 ℃;

Q4: What should be noted when using alternative models for replacement?
A4: The electrical specifications, interfaces, and firmware of alternative models must be completely consistent;

Company Info

Moore Automation focuses on providing high-quality automation control system components for the global manufacturing industry, committed to ensuring the continuous operation of customer production lines. The company not only has abundant internal inventory, but also serves as a distribution partner for multiple suppliers, committed to providing customers with the most suitable solutions. Even if the required product is temporarily out of stock, you can submit a quotation request, and we can usually quickly find and provide the required product for you.

Packaging&Shipping

We will ship within 3 working days after receiving payment.

All products undergo strict testing before shipment to ensure quality assurance.

Use professional anti-static bags for packaging to ensure transportation safety.
