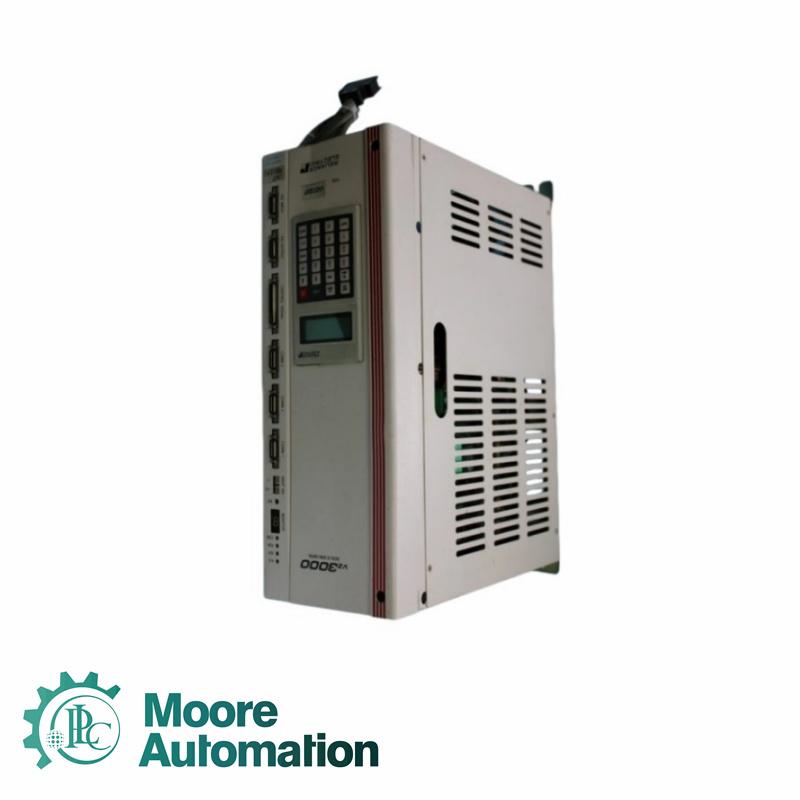

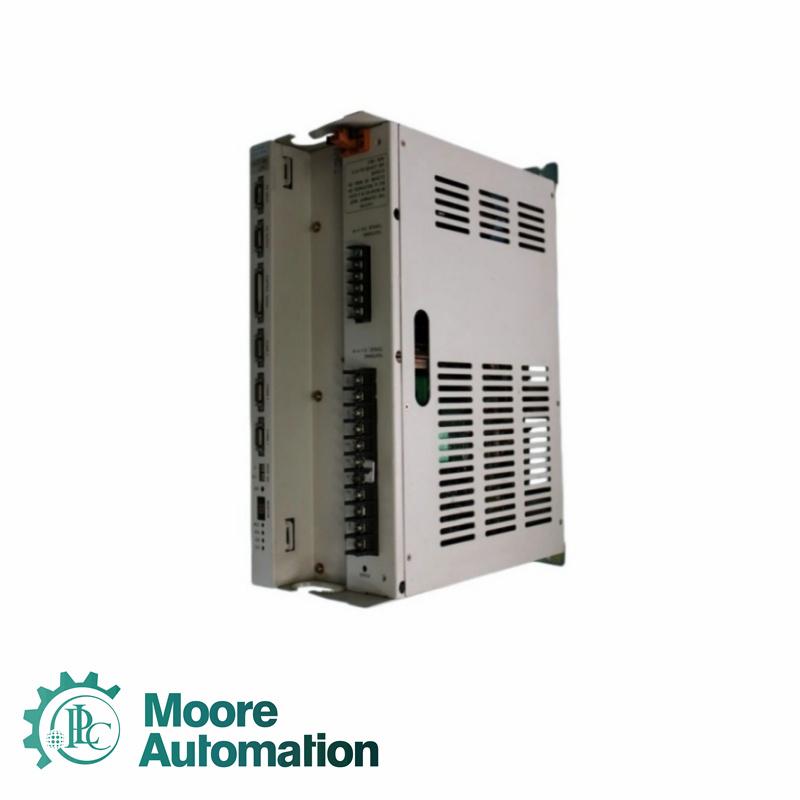

Reliance Electric UVZC3407G Servo Drive

For brand new, original automation products at great prices, contact Sales Manager John Yang. He's available 24/7. For more information, please contact:

Long Description

 The UVZC3407G from Reliance Electric is a 3Phase AC Servo Drive designed for precise industrial automation control. Measuring 7.5×30×43 cm and weighing 4.08 kg, the UVZC3407G supports 380–460 VAC input at 50/60 Hz and delivers 7.5 kW output with a 460–715 VDC bus. Using IGBT Sinusoidal PWM Full Digital Vector Control, the UVZC3407G efficiently drives motors via main terminals L1, L2, L3, U, V, W, and G, while control terminals GF2, GF1, and others manage system signals. Equipped with a 7segment LED display, X10/X1 drop switches, and P/S, RDY, RUN, COM lamps, the UVZC3407G provides clear operational feedback. Communication is enabled through CN1–CN5 ports, and the unit allows regenerative resistor connection. Built-in cooling ensures the UVZC3407G maintains performance during continuous operation, making it ideal for automated conveyor, robotics, and material handling systems.

Technical Details

Dimensions: 7.5×30×43 cm
Weight: 4.08 kg
Series: VZ3000 Series
Product Type: 3-Phase AC Servo Drive / Inverter Unit
Input Voltage: 380/400/440/460 VAC, 3-phase
Input Frequency: 50/60 Hz
Power Rating: 7.5 kW
Output DC Bus Voltage: 460–715 VDC
Control Method: IGBT Sinusoidal PWM Full Digital Vector Control
Enclosure Type: Chassis Mount Drive
Cooling Method: Built-in cooling fan (runs during operation)

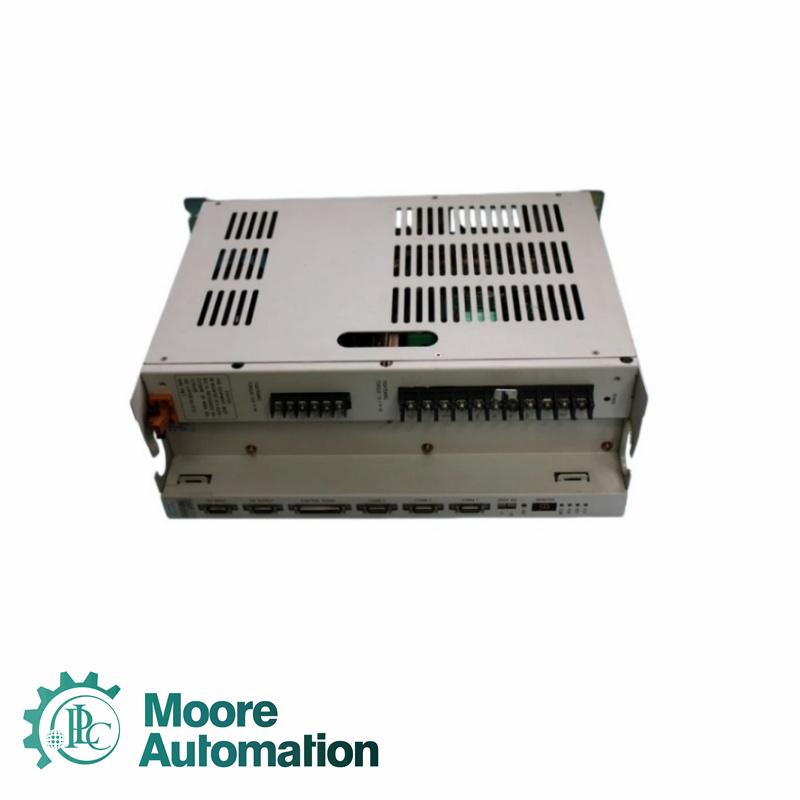

Main Terminals: L1(R), L2(S), L3(T), P, N, U, V, W, G
Control Terminals: GF2, GF1, IP, RDY, OPE, 0VC, +VC, FR2, FR1
Display Indicators: P/S, RDY, RUN, COM lamps
User Interface: 7-segment LED monitor, X10 and X1 drop switches
Communication Ports: Comm.1 (CN4), Comm.2 (CN3), Comm.3 (CN5)
Control Signal Port: CN2
PG Frequency Divider Port: CN9
PG Input Port: CN1
Regenerative Resistor Connection: Supported via dedicated terminals
