PLC TC-205-02-4M5 Trusted I/O Companion Slot Cable

PLC TC-205-02-4M5 Trusted I/O Companion Slot Cable

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Moore automation is here for you:

Moore is a professional manufacturer of global famous brand modules and spare parts.

Our main products are: distributed control system (DCS), programmable logic controller (PLC), large servo control system.

The spare parts we sell are guaranteed for one year and are rigorously tested and certified.

We are now a global manufacturer of industrial automation spare parts and components.

John Yang

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

Brief introduction

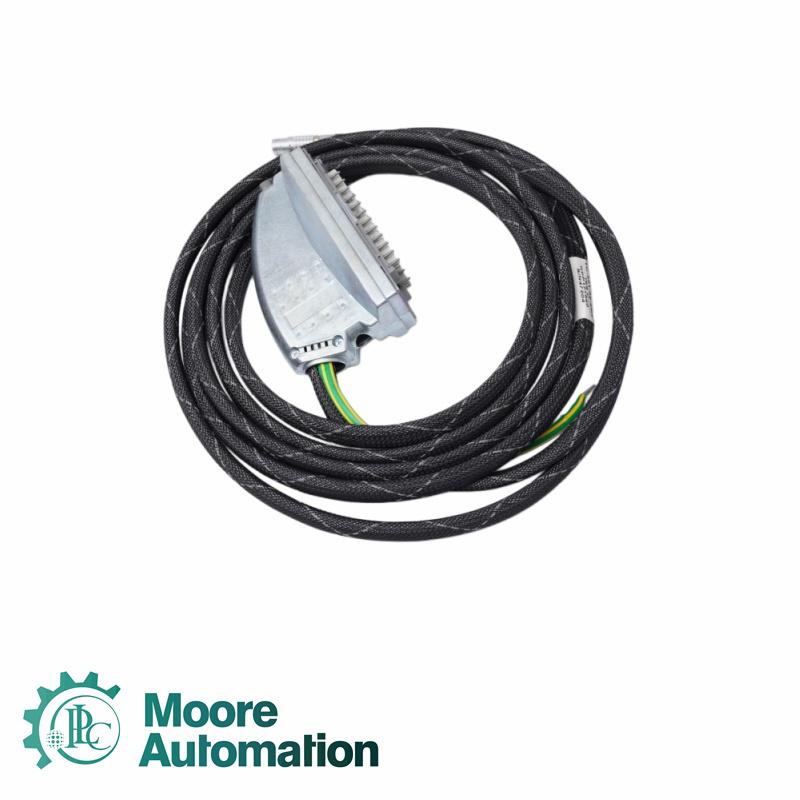

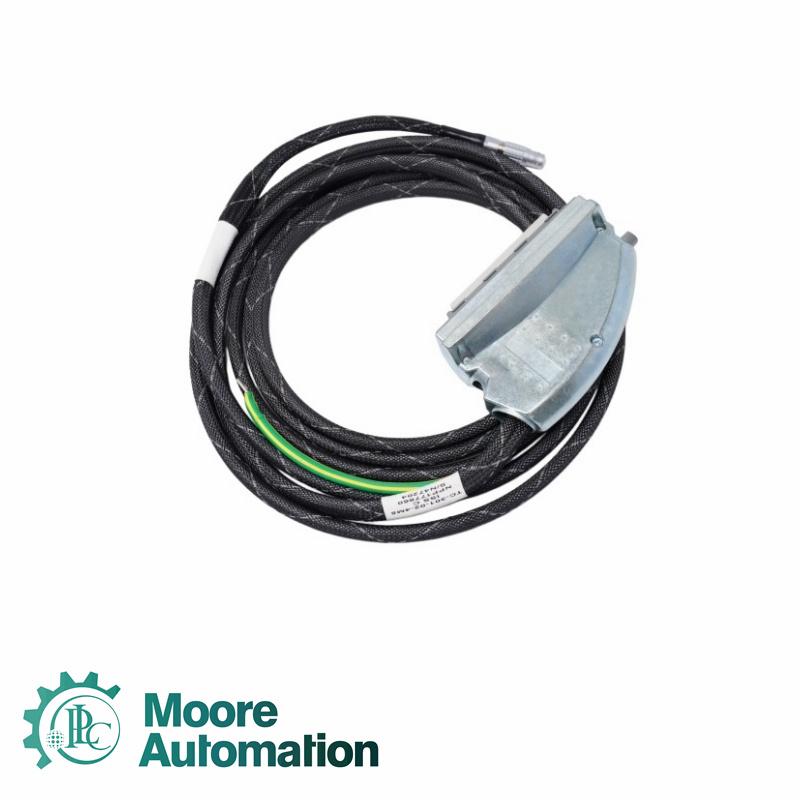

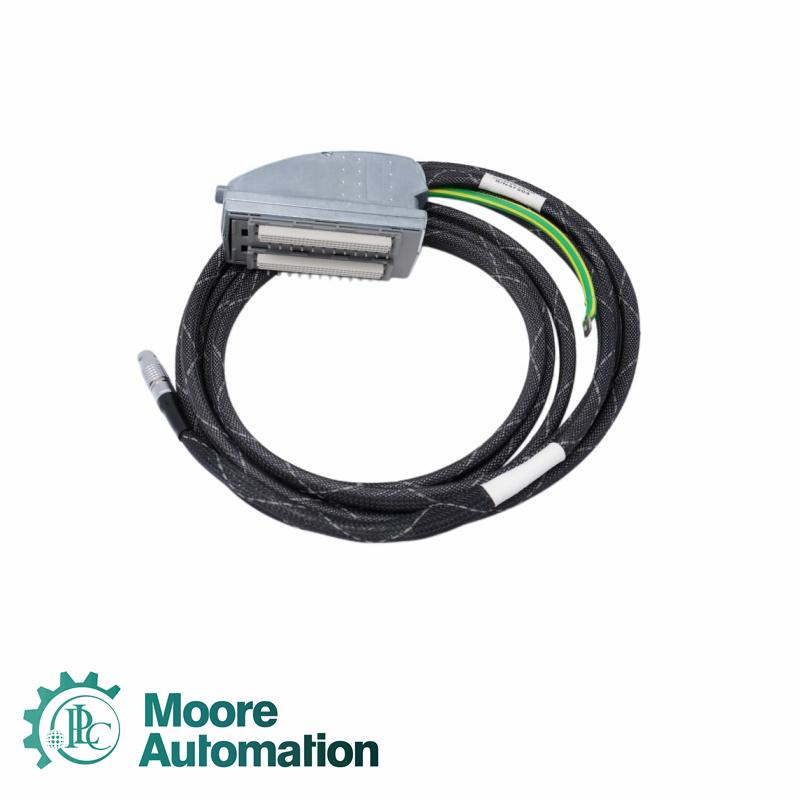

This type of Trusted I/O Companion Slot Cable TC-205-02-4M5 is designed for use with digital 24 V/120 Vdc or analogue output modules and is suitable for connecting output signals from the module to an internal FTA. Three multi-core cables are used for this application. The chassis end of multi-core 1 is fitted with two 96-way type ‘C’ connectors housed in a double-width hood. The non-chassis end of multi-core 1 is fitted with a 96-way type ‘R’ connector housed in a single-width hood enabling connection to an FTA. The non-chassis end of multi-core 2 is fitted with a 5-way BLZF 3.5 series connector enabling the cable to be terminated at a T8290 Output Power Distribution Unit. This cable is used for field power return. The non-chassis end of multi-core 3 is fitted with a 6-way AMP plug used to connect power to the field from a T8290 or T8297 and is made up of five individual 2.5 mm wires contained within Rilgain sleeving.

Comprehensive Product Details
Type	Trusted I/O Companion Slot Cable
Use	Digital 24 V/120 Vdc or analogue output modules
Connection	Module output to internal FTA
Cables	Three multi-core cables
Multi-core 1 Chassis End	Two 96-way type ‘C’ connectors, double-width hood
Multi-core 1 Non-Chassis End	96-way type ‘R’ connector, single-width hood
Multi-core 2 Non-Chassis End	5-way BLZF 3.5 series connector, connects to T8290 Output Power Distribution Unit
Multi-core 3 Non-Chassis End	6-way AMP plug, five 2.5 mm wires in Rilgain sleeving
0 V Connection	Module reference, connects to field 0 V
FTA Field 0 V	Isolated power group field 0 Volts
Reference Commoning	Connection between field supply and T8290 TB1 pins 1 and 2
Multi-core 1 Strip Length	1.5 m at both ends
Sheathing	Nylon Rilgain for multi-cores 1, 2, 3
Sheathing Ends	Heated or over-sleeved to prevent fraying
Safety Earth	Chassis and remote end connector hood wired
Screen Earth	Remote end multi-core screen drain wired to green wire

Features

High-quality materials: Made of high-quality materials, it has good wear and corrosion resistance and can operate stably for a long time.
High reliability: reasonable design, stable connection, can ensure accurate signal transmission and reduce failure rate.
Strong compatibility: suitable for industrial automation systems such as ICS TRIPLEX, compatible with a variety of devices and controllers.
Long life: Through strict testing and quality control, ICS TRIPLEX TC-205-02-4M5 cable has a long service life, reducing the frequency of maintenance and replacement.

Precautions
Proper installation: When installing ICS TRIPLEX TC-205-02-4M5 cable, please make sure to connect it correctly according to the instructions provided by the manufacturer to avoid failures caused by improper connection.
Regular inspection: Regularly check the connection status and performance of the cable to detect and deal with potential problems in time.
Avoid excessive bending: When using the cable, avoid excessive bending or pulling to avoid damaging the wires and structures inside the cable.
Storage environment: Please store the cable in a dry, ventilated environment without corrosive gases to extend its service life.

Application Areas
Widely used in industrial automation fields such as petrochemicals, power generation, metallurgy, and pharmaceuticals.

Used to monitor the operating status of various equipment, such as boilers, reactors, and compressors.

Also used for environmental control, such as regulating parameters like temperature, humidity, and pressure.

FAQ

Q: What is the TC-205-02-4M5?
A: It is a Trusted I/O Companion Slot Cable.

Q: Is TC-205-02-4M5 new or refurbished?
A: All our products are original new with 1 year warranty.

Q: How many days the TC-205-02-4M5 will arrive my hands if I place the order now?
A: As soon as we receive the payment, I will ship the products immediately.
It usually take 3-5 days from China to your hands.

Q:Can you ship the TC-205-02-4M5 to my country?
A: Please don't worry ,We can ship the goods to worldwide.
