PLC 1794-OE4XT FLEX I/O XT Analog Output

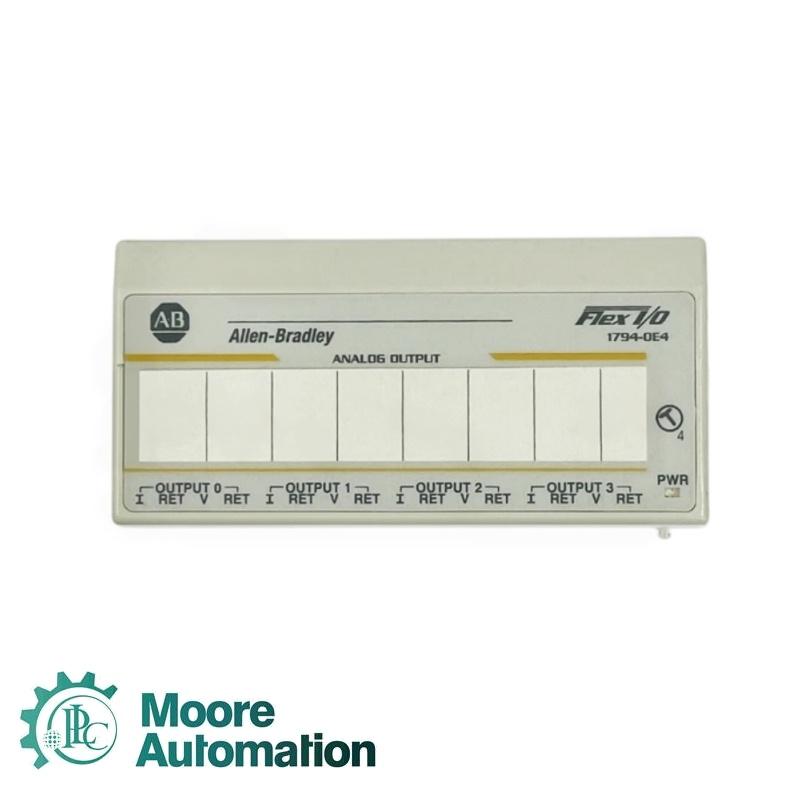

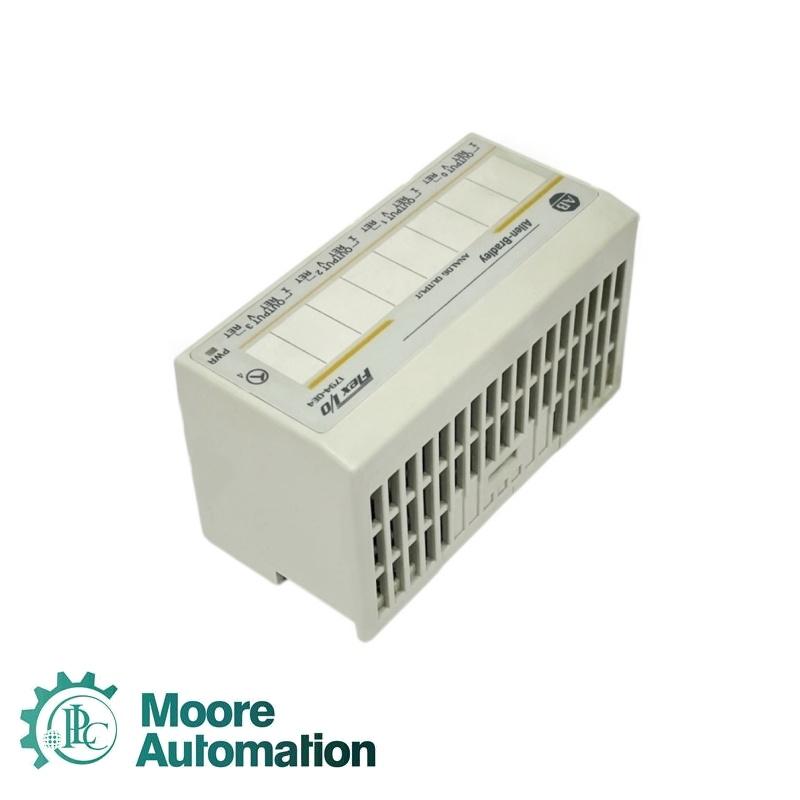

PLC 1794-OE4XT FLEX I/O XT 4-Point Analog Output Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year
Lead Time:
3-5 Days

Product Detail

Specifications

The PLC 1794-OE4XT is a four-point analog output module for the FLEX I/O XT system. Its four single-ended, nonisolated channels can be configured for current or voltage output, while the XT design supports an operating temperature range of -20 to +70 °C. Channel configuration, terminal-base selection, mechanical keying and wiring must follow the official installation instructions.

Product typeFLEX I/O XT analog output module

Output channels4 single-ended, nonisolated

Current output ranges0-20 mA; 4-20 mA

Voltage output ranges0-10 V DC; -10 to +10 V DC

Resolution12 bits plus sign

Voltage resolution0.156 mV/count

Current resolution0.320 µA/count

Data formatLeft-justified, 16-bit two's complement

Conversion typePulse-width modulation

Step response to 63%24 ms

Voltage-output load3 mA maximum

Current-output resistive load15-750 Ω at 24 V DC

Voltage absolute accuracy0.133% full scale at 25 °C

Current absolute accuracy0.425% full scale at 25 °C

Voltage accuracy drift0.0045% full scale/°C

Current accuracy drift0.0069% full scale/°C

Nominal external supply24 V DC

External supply range10.5-31.2 V DC, including 5% AC ripple

External supply current165 mA at 24 V DC

Flexbus current15 mA at 5 V DC

Power dissipation, maximum4.5 W at 31.2 V DC

Thermal dissipation, maximum13.6 BTU/hr at 31.2 V DC

Isolation voltage50 V continuous, basic insulation

Isolation test850 V DC for 60 s, field side to system

Channel-to-channel isolationNone

Recommended terminal bases1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBN

Keyswitch position4

Dimensions (H × W × D)45.7 × 94 × 53.3 mm

Enclosure type ratingNone (open-style)

Operating temperature-20 to +70 °C

Storage temperature-40 to +85 °C

Relative humidity5-95%, noncondensing

Vibration5 g at 10-500 Hz

Operating shock30 g

Nonoperating shock50 g

Wire typeShielded

Signal-port wire category2

North American temperature codeT3C

UKEX/ATEX temperature codeT4

IECEx temperature codeT4

Application Industry

Current-loop controlProvides four configurable 0-20 mA or 4-20 mA outputs for industrial field-command signals.

Voltage-reference controlSupplies configurable 0-10 V DC or bipolar ±10 V DC analog references to compatible equipment.

Extended-temperature distributed I/OSupports FLEX I/O XT installations operating from -20 to +70 °C.

Multi-channel analog actuationControls four independent nonisolated outputs with configurable channel ranges and safe-state values.

FAQ

Which FLEX I/O terminal bases are approved for PLC 1794-OE4XT?

Use only a compatible terminal base listed in the official installation instructions. Confirm the base wiring, shielding provisions and terminal torque before installation.

What analog signal ranges can PLC 1794-OE4XT generate?

Each channel can be configured for 0-20 mA, 4-20 mA, 0-10 V DC or -10 to +10 V DC operation.

How should PLC 1794-OE4XT be mechanically keyed before insertion?

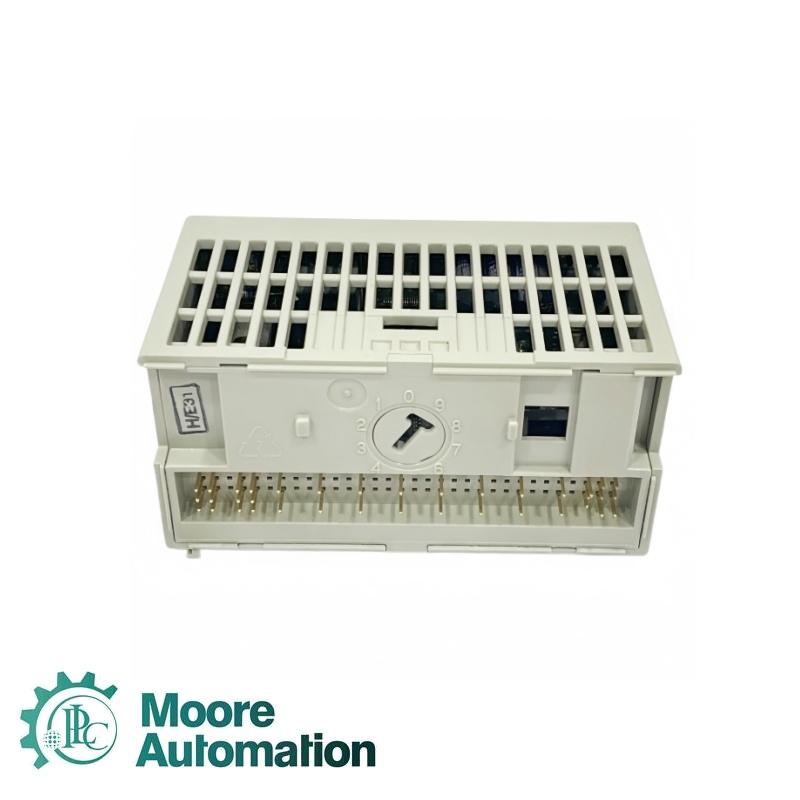

Set the terminal-base keyswitch to position 4, fully extend the Flexbus connector and align the module pins before seating the unit.

What external power is required by PLC 1794-OE4XT?

Provide a nominal 24 V DC supply within 10.5-31.2 V DC, including no more than the specified 5% AC ripple.

What should engineers check when commissioning PLC 1794-OE4XT outputs?

Use shielded signal wiring, configure every channel for the intended current or voltage range, and verify the load is within the published limit before enabling commands.
