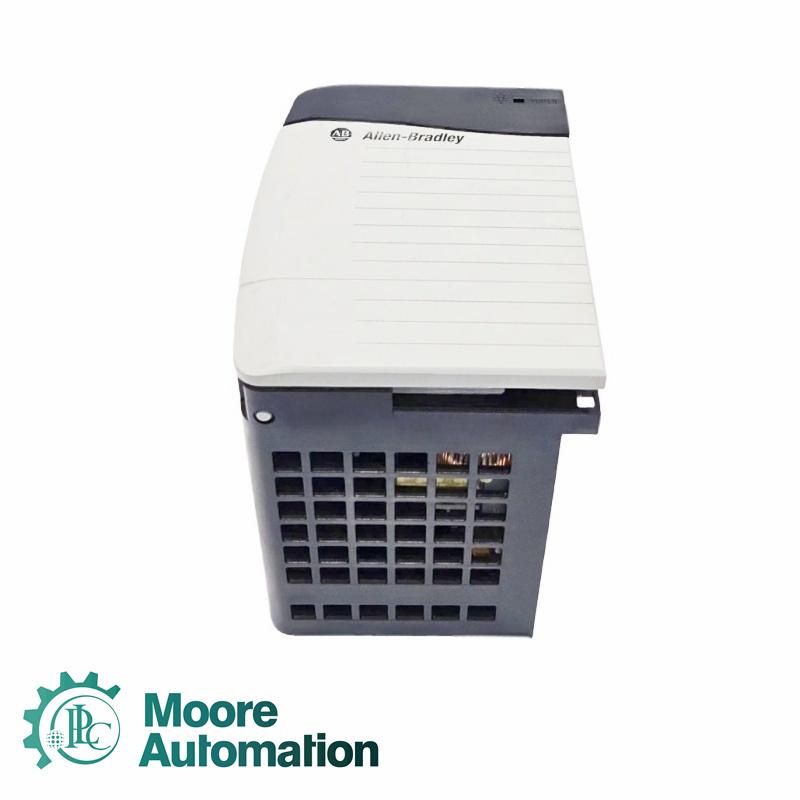

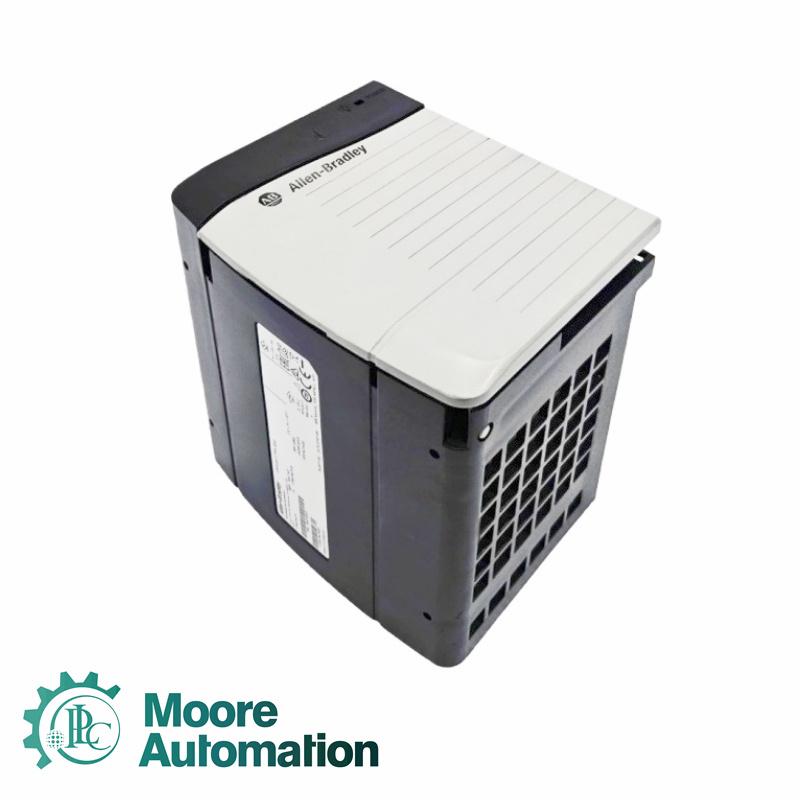

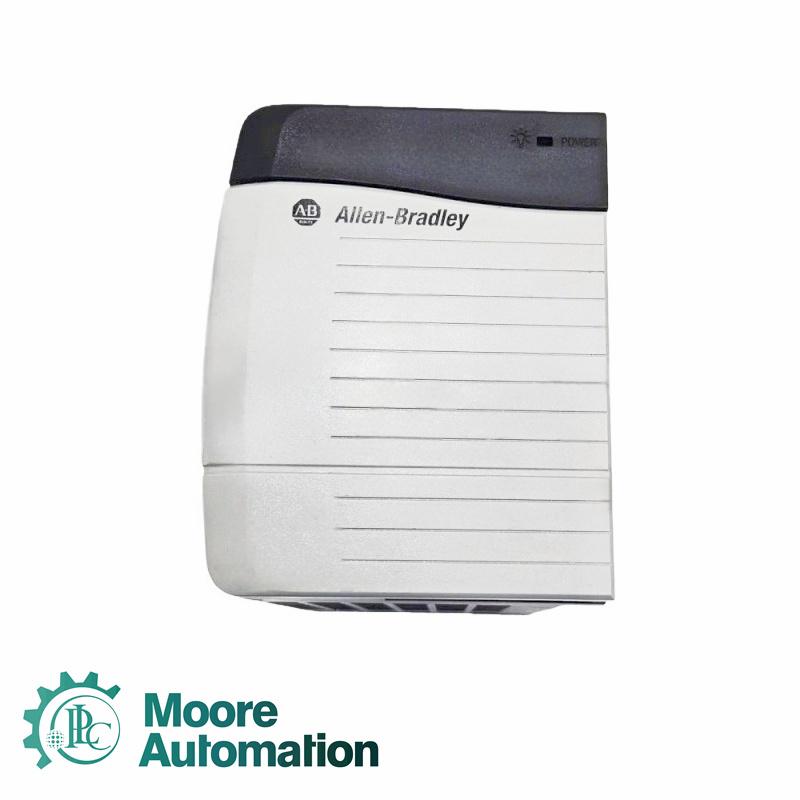

PLC 1756-PB50 DC Power Supply Module

24-hour Online Service-1756-PB50

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Long description-1756-PB50

Details-1756-PB50

The 1756-PB50 module has an input voltage range of 18 - 32V DC with 24V DC nominal input voltage. It has a maximum input power of 85W at 50 deg. Celsius (122 deg. Fahrenheit), 70W at 60 deg. Celsius (140 deg. Fahrenheit), and the maximum output power of 60 W at 0 - 50 deg. Celsius (32 - 122 deg. Fahrenheit), and 50 W at 0 - 60 deg. Celsius (32 - 140 deg. Fahrenheit). It has a current capacity of 1.5A at 1.2V DC, 2A at 3.3V DC, 8A (50 deg. Celsius) and 6A (60 deg. Celsius) at 5.1V DC and 2.5A (50 deg. Celsius) and of 2.0A (60 deg. Celsius) at 24V DC. It has dimensions of 5.51 x 3.07 x 5.71 in. and weighs 1.7 lbs. It has 250V (continuous) isolation voltage and maximum inrush current of 30A. It is installed in the left slot of the 1756 ControlLogix chassis with an open enclosure or no enclosure. It is compatible with the 1756-A4, 1756-A7, 1756-A10, 1756-A13 and the 1756-A17 (Series A, B, and C) chassis. For wiring, 2.5 mm sq. (14 AWG) solid or stranded copper wire rated at 90 deg. Celsius (194 deg. Fahrenheit) or greater with maximum insulation of 1.2 mm (3/64 in.) is used. The 1756-PB50 power supply is intended for use in an industrial environment with a 0 - 60 deg. Celsius (32- 140 deg. Fahrenheit) operating temperature, a 30g operating shock, and a 5 - 95% noncondensing relative humidity. The 1756-PB50 has output Current capacities of 1.5A at 1.2V; 2A at 3.3V; 8 A @ 50 °C (122 °F) 6 A @ 60 °C (140 °F) at 5.1V and 2.5 A @ 50 °C (122 °F) 2.0 A @ 60 °C (140 °F) at 24V.

Weight: 1.81 lbs (0.82 kg)
Module Type: Standard DC Power Supply
Nominal Input Voltage: 24 VDC
Input Voltage Range: 18–32 VDC
Isolation Voltage: 250 V Continuous
Maximum Inrush Current: 30 A
Current Capacity: 1.5 A @ 1.2 V; 2 A @ 3.3 V; 8 A @ 50 °C / 6 A @ 60 °C @ 5.1 V; 2.5 A @ 50 °C / 2.0 A @ 60 °C @ 24 V
Hold-Up Time: 30 ms @ 18–32 VDC, 60 W; 40 ms @ 18–32 VDC, 50 W
Installation Location: 1756 Chassis Left Side
Enclosure Type: Open-Style
Compliance Standards: CE, cUL, KC, NRTL, RCM, UL
Display Interface: Status LEDs
Operating Temperature: 0–60 °C

100% full New! - Original Factory Seal !
Warranty: 12 months!
Package: Original packing with cartons.
Delivery time: Shipped in 3 days after payment
