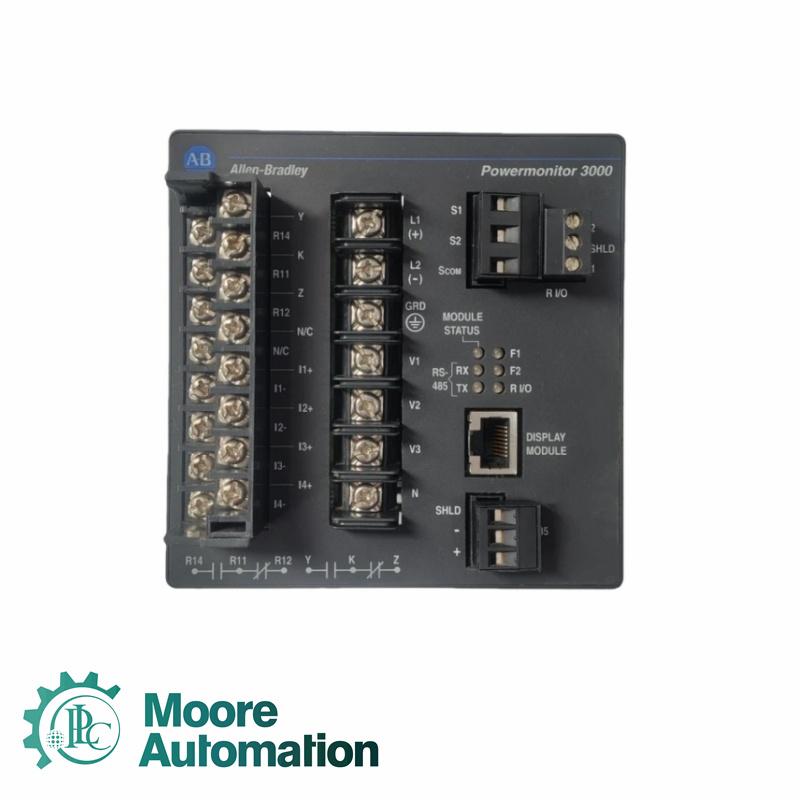

PLC 1404-M405A-RIO Powermonitor 3000 Master Module

Email :  sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

Operating Voltage: 5 V DC / 24 V DCVoltage Sense Inputs:V1, V2, V3
Current Sense Accuracy:+0.2%
Current Sense Inputs:I1, I2, I3, I4
Frequency Accuracy:+0.05 Hz
Power Functions:ANSI C12.16 kW, kVA, kVAR, Demand
EN 61036 Class 1 Functions:kW, kVA
Energy Functions:kWh, kVAh
Metering Update Rates:65–90 ms
Current Sense Overload Withstand:15 A continuous, 200 A for 1 s
Current Sense Burden:0.05 VA
Current Sense Impedance:0.002 Ω
Max Crest Factor at 5 A:3
Starting Current:5 mA
Status Inputs:Contact closure (internal 24V DC)

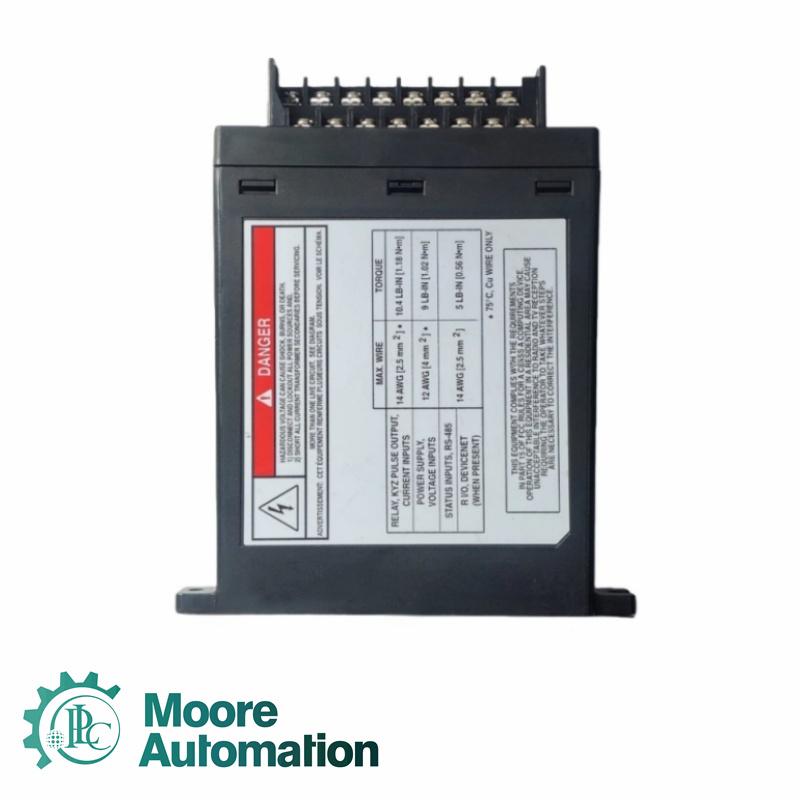

Power Supply and Voltage Input Terminals:4 mm² (12 AWG) max, 1.02 N·m torque, 75°C copper wire
Relay/KYZ Outputs Current Input Terminals:2.5 mm² (14 AWG) max, 1.18 N·m torque, 75°C copper wire
Status Inputs/RS485 Terminals:2.5 mm² (14 AWG) max, 0.56 N·m torque
RIO/DNT Terminals (when present):2.5 mm² (14 AWG) max, 0.56 N·m torque
Operating Temperature:-20 to 60°C (cat. no. 1404-DM, 1404-xMxxx-000, 1404-Mxxx-DNT) / 0 to 55°C (cat. no. 1404-Mxxx-232, -RIO, -ENT, -CNT)
Storage Temperature:-40 to 85°C
Humidity:5–95%, non-condensing
Vibration:10–500 Hz, 2 g operational (+0.012 in.)
Shock:1/2 sine pulse, 11 ms duration, 30 g operational and non-operationalConnector Type: Screw terminal and edge connector

Min.Order Quantity: 1

Packaging Details: New and Original Factory Sealed

Lead Time: 2-3 days

Supply Ability: 200 Piece/Pieces per Month

Payment Term: T/T Wire Transfer

Warranty: 12 Months Warranty

Shipment : Worldwide Fast Shipment

Q: What is the voltage and current sense accuracy of the 1404-M405A-RIO?
A: Voltage and current sense accuracy are both ±0.2%.

Q: Which power and energy functions does it support?
A: Supports ANSI C12.16 kW, kVA, kVAR, Demand; EN 61036 Class 1 kW, kVA; energy functions kWh and kVAh.

Q: What are the metering update rates?
A: Metering updates occur every 65–90 ms.
