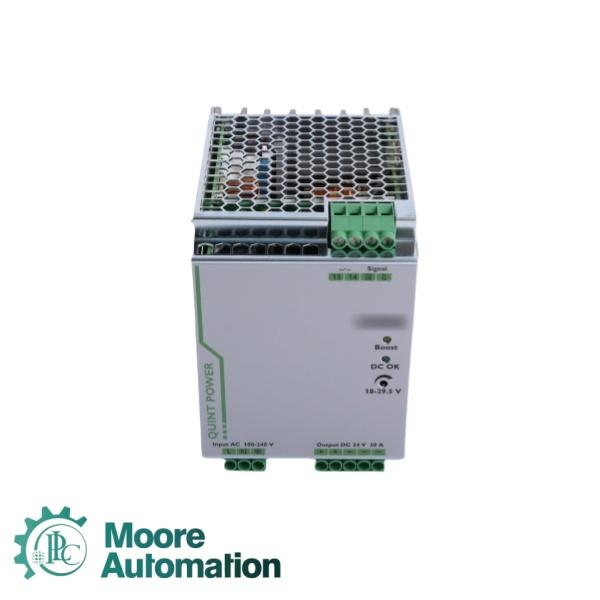

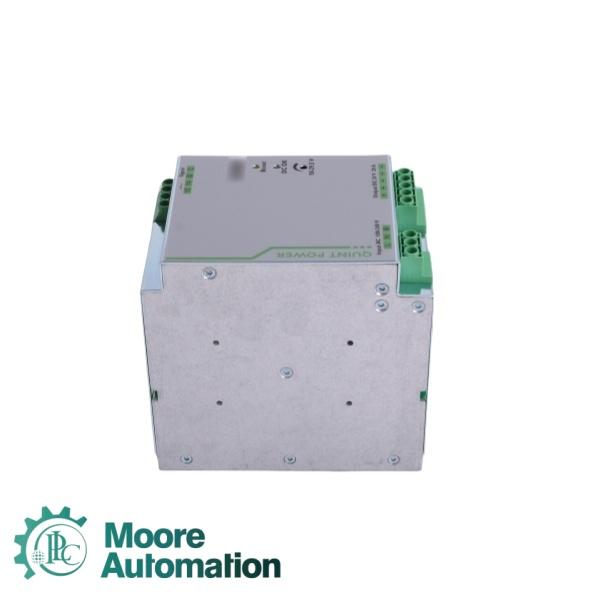

PHOENIX QUINT-PS/1AC/24VDC/10 2866763 Power supply unit

Description

The QUINT-PS/1AC/24VDC/10 is a primary-switched DIN rail power supply from Phoenix Contact's QUINT POWER series . It is designed to maximize system availability and provide reliable 24 V DC power for industrial automation applications .This single-phase power supply delivers a nominal output of 24 V DC at 10 A (240 W) and features a wide AC/DC input voltage range from 85 V AC to 264 V AC and 90 V DC to 350 V DC, making it suitable for global use .

Features

· SFB Technology: Delivers 6 times the nominal current (60 A) for 12 ms, causing standard miniature circuit breakers to trip magnetically and selectively. This ensures only the faulty current path is disconnected while critical system parts continue operating, saving costs on unnecessary system shutdowns .

 · Static POWER BOOST: Provides a permanent power reserve of 1.5 times the nominal current (15 A continuously). This allows reliable startup of heavy loads and devices with high inrush currents without the need to oversize the power supply .

 · Preventive Function Monitoring: Continuously monitors output voltage and current, reporting critical operating states before an error occurs. This predictive capability maximizes system availability and enables condition-based maintenance strategies .

· High Efficiency & Long Mains Buffering: Achieves up to 93.2% efficiency (at 230 V AC) for reduced energy costs and lower heat generation. Provides > 36 ms mains buffering time at both 120 V AC and 230 V AC, ensuring stable operation during power disturbances .

· Wide Operating Temperature Range & High Reliability: Operates reliably from -25°C to +70°C (with derating above 60°C). Features an exceptional MTBF > 530,000 hours at 40°C, ensuring long service life even in demanding industrial environments .

Application

· Industrial Automation & Factory Control Systems：Powers PLCs, HMIs, sensors, and actuators. SFB technology disconnects only faulty paths, keeping critical systems running and minimizing downtime.

· Machinery & Equipment Manufacturing：Powers control cabinets for packaging machines, CNC, robotics, and assembly lines. POWER BOOST delivers 15 A continuously for reliable startup of heavy loads without oversizing.

· Process Technology & Chemical Plants：Suitable for demanding process control. Conformal coating protects against chemical attack, and wide temperature range ensures stable performance in harsh conditions.

· Building Automation & Infrastructure：Used in HVAC, lighting control, security systems, and building management. Ultra-slim design (60 mm) saves cabinet space, and high efficiency (>92%) reduces energy costs.

· Marine & Offshore Applications：Certified with multiple marine approvals (DNV GL, ABS, LR, RINA, NK, BV). Robust design withstands vibration and humidity, providing uninterrupted power for navigation and control systems.

Email: Sales6@askplc.com or Mobile(WhatsApp):  +86-17359287459

FAQ

Q: What is SFB technology and how does it work?

A: SFB (Selective Fuse Breaking) delivers 6 times the nominal current (60 A) for 12 ms, causing standard circuit breakers to trip magnetically and selectively, isolating only the faulty circuit while keeping critical systems running .

Q: What is the POWER BOOST feature used for?

A: POWER BOOST provides a permanent power reserve of 15 A continuously (1.5 × rated current), enabling reliable startup of heavy loads and devices with high inrush currents without oversizing the power supply .

Q: What is the operating temperature range of this power supply?

A: The operating temperature range is -25°C to +70°C, with derating of 2.5%/K above 60°C .

Q: Can multiple QUINT-PS/1AC/24DC/10 units be connected in parallel?

A: Yes, the unit can be connected in parallel for redundancy or increased capacity. It can also be connected in series for higher output voltages .

Q: What marine and industrial approvals does this power supply hold?

A: It holds multiple approvals including DNV GL, ABS, LR, RINA, NK, BV for marine applications, plus UL 508, SEMI F47 for semiconductor equipment, and ATEX/IECEx for hazardous locations .
