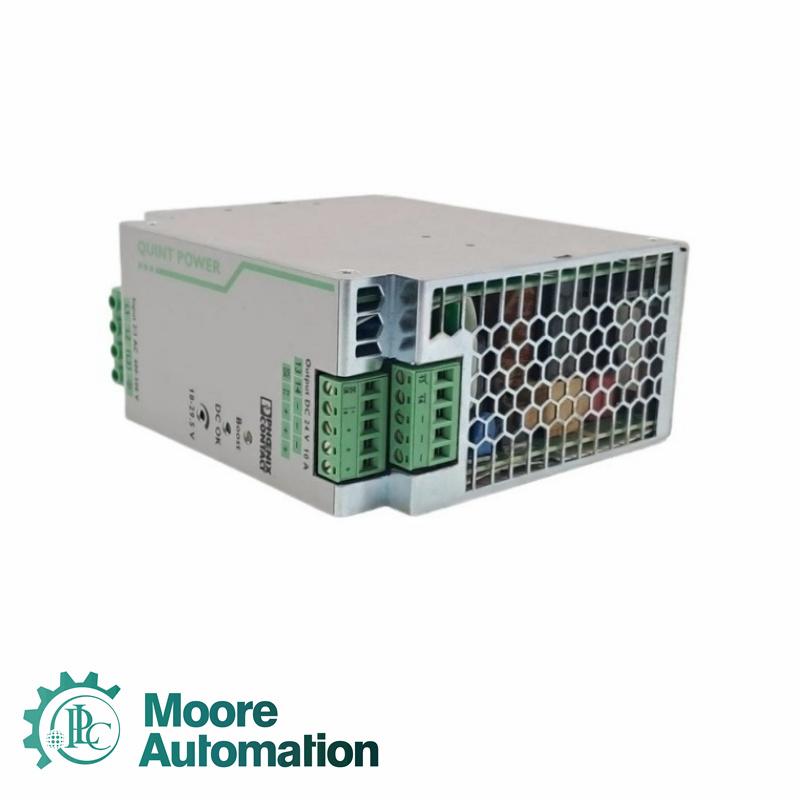

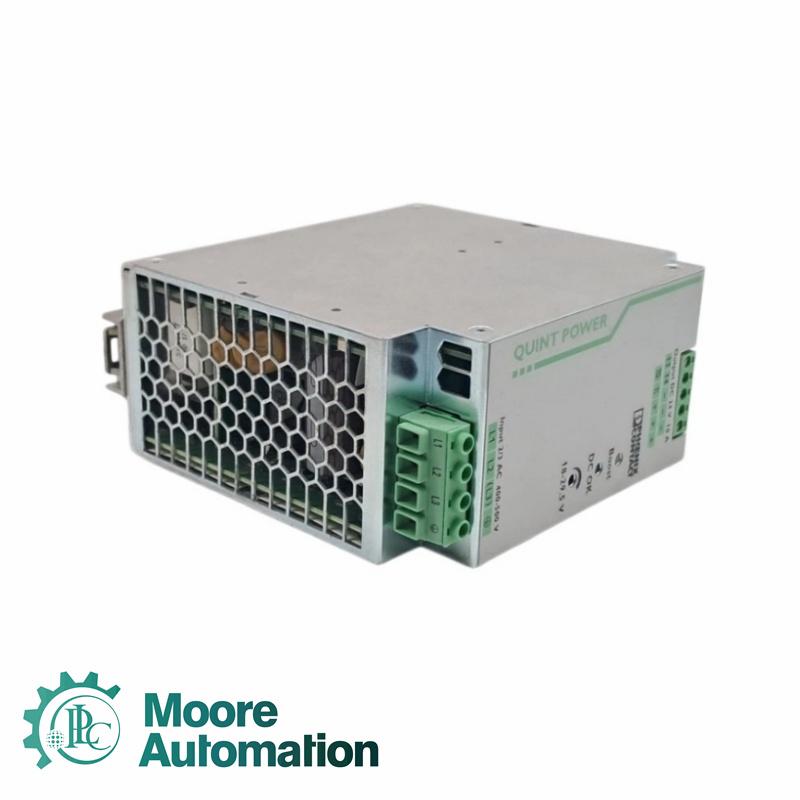

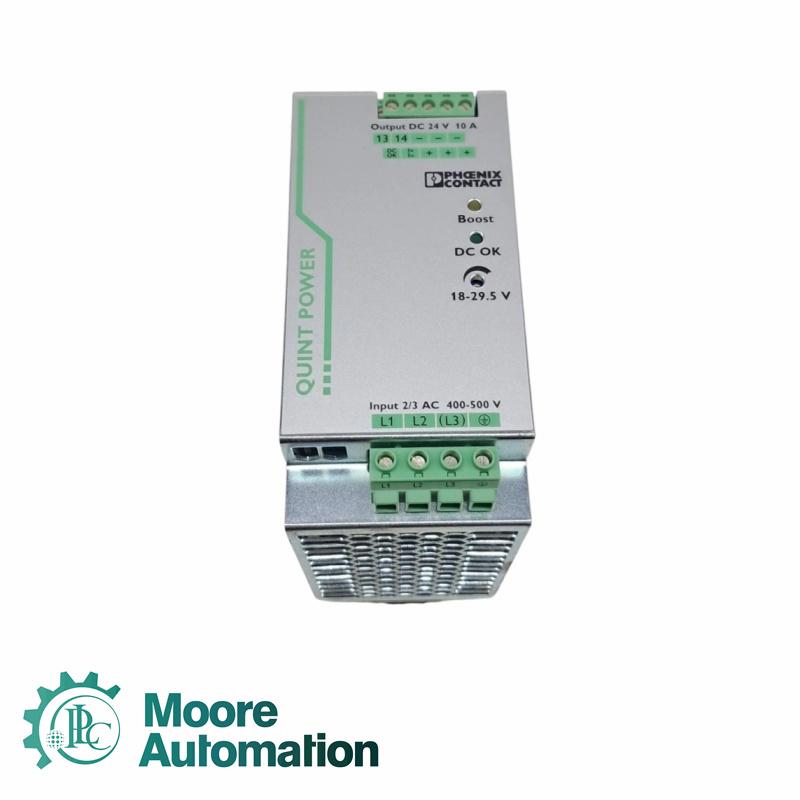

PHOENIX CONTACT QUINT-PS100-240AC/24DC/10 2938604 Power Supply Unit

PHOENIX CONTACT QUINT-PS100-240AC/24DC/10 2938604 Power Supply Unit

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

  • Brand:

    Other
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    Germany
  • Color:

    Brand New
  • Shipping Port:

    Xiamen
  • Lead Time:

    in stock
  • Product Detail

5-star Sale Manager--John Yang

Email

Mobile(WhatsApp)

sales3@askplc.com

86-18150117685



Long Description

QUINT-PS100-240AC/24DC/10 2938604

QUINT POWER is the powerful 60-960 W DC power supply unit for universal use.With its wide-range input, single and three-phase versions,and international approval package, this solution is unrivalled.QUINT POWER provides reliable power supply: generously dimensioned capacitors ensure mains buffering of over 20 ms at full load.Full output power is provided by all three-phase devices, even in the event of a permanent phase failure.The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped.Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system.Remote monitoring is provided by an active transistor switching output and a floating relay contact.All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage of 12, 24, and 48 V DC with output currents of 2.5, 5,10, 20, 30, and 40 A.Power supply units for use in Ex zone 2 uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range.


Contact John Yang sales3@askplc.com , know more information.



Technical Specifications

QUINT-PS100-240AC/24DC/10 2938604

Width:85 mm
Height:130 mm
Depth:125 mm
Weight:1.3 kg
Degree of protection:IP20
Ambient temperature (operation):-25 °C ... 70 °C (> 60 °C Derating:2.5 %/K)
Ambient temperature (storage/transport):-40 °C ... 85 °C
Max. permissible relative humidity (operation):95 % (at 25 °C, non-condensing)
Degree of pollution:2
Nominal input voltage range:100 V AC ... 240 V AC
Input voltage range:85 V AC ... 264 V AC, 90 V DC ... 350 V DC
AC frequency range:45 Hz ... 65 Hz
Frequency range DC:0 Hz
Discharge current to PE:< 3.5 mA
Current consumption:approx. 2.34 A (120 V AC), approx. 1.2 A (230 V AC)
Nominal power consumption:264 W
Inrush surge current:< 15 A (typical)
Mains buffering:> 50 ms (120 V AC), > 50 ms (230 V AC)
Input fuse:6.3 A (slow-blow, internal)
Choice of suitable circuit breakers:10 A ... 16 A (Characteristics B, C, D, K)
Type of protection:Transient surge protection
Protective circuit/component:Varistor
Nominal output voltage:24 V DC ±1 %
Setting range of the output voltage (USet):22.5 V DC ... 28.5 V DC
Nominal output current (IN):10 A (up to 60°C)
POWER BOOST (IBoost):15 A
Derating 60 °C ... 70 °C:2.5 %/K
Connection in parallel:Yes, for redundancy and increased capacity
Connection in series:Yes
Feedback resistance:35 V DC
Protection against surge voltage on the output:≤ 35 V DC
Max. capacitive load:Unlimited
Active current limitation:ca. IBOOST = 15 A (for short-circuit)
Control deviation:< 1 % (change in load, static 10 % ... 90 %), < 2 % (change in load, dynamic 10 % ... 90 %), < 0.1 % (change in input voltage ±10 %)
Residual ripple:< 60 mVPP (with nominal values)
Output power:240 W
Typical response time:< 1 s
Peak switching voltages nominal load:< 60 mVPP (20 MHz)
Maximum power dissipation in no-load condition:< 2 W
Power loss nominal load max.:< 24 W
Tightening torque, min:0.5 Nm
Tightening torque max:0.6 Nm
Screw thread:M3
Output name:DC OK floating
Output description:Relay contact, UOUT > 0.9 x UN: Contact closed
Maximum switching voltage:≤ 30 V AC/DC
Maximum inrush current:≤ 1 A
Continuous load current:≤ 1 A
Status display:"DC OK" LED green
