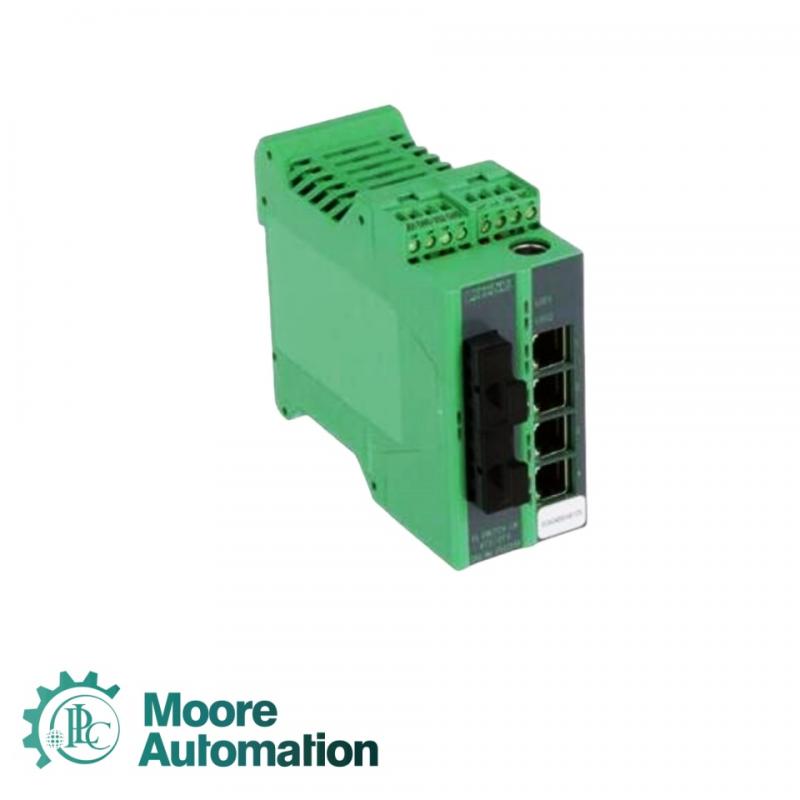

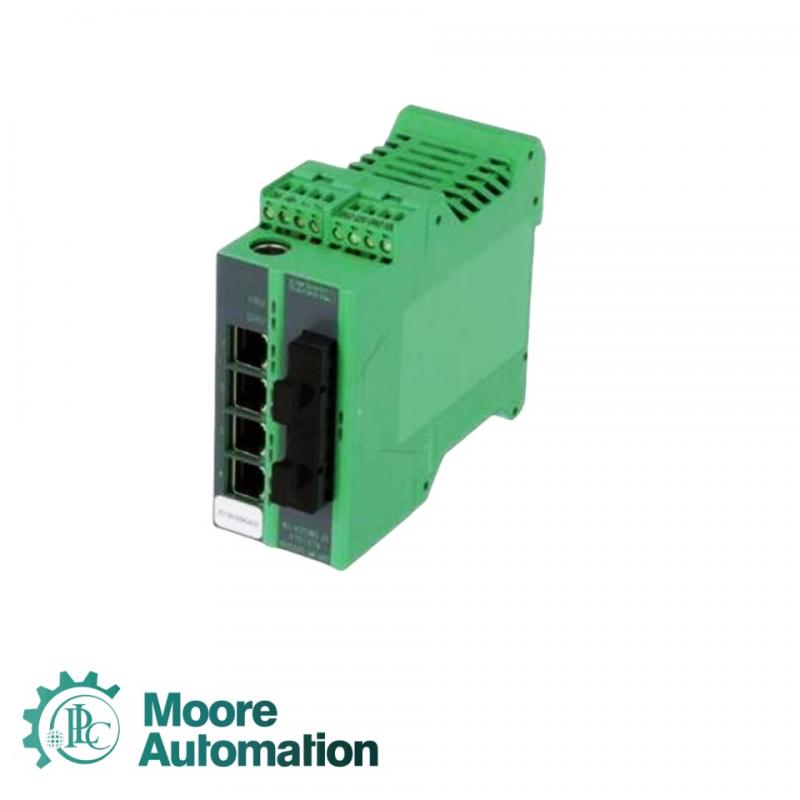

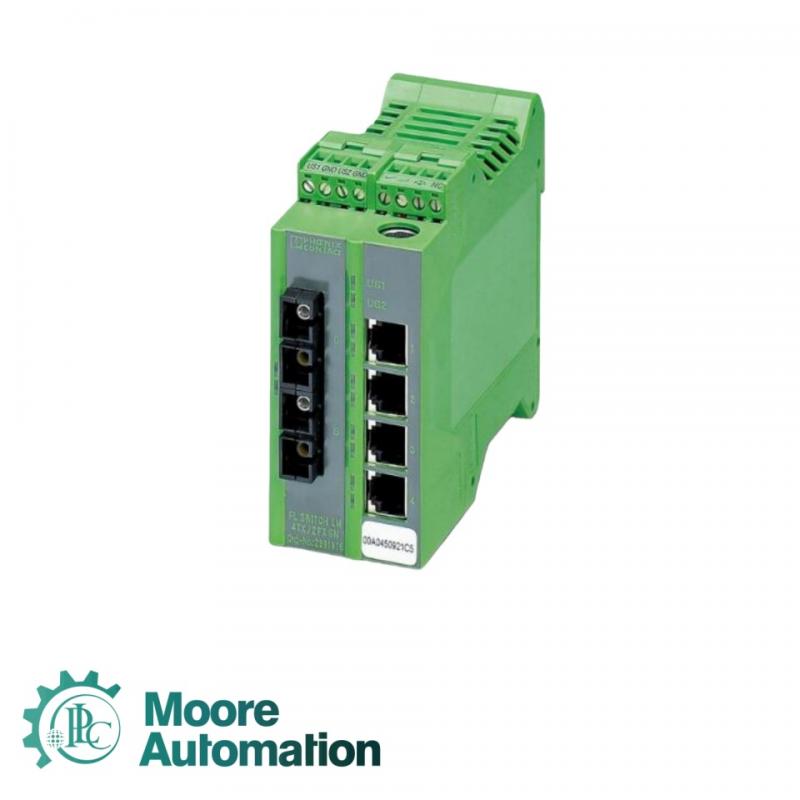

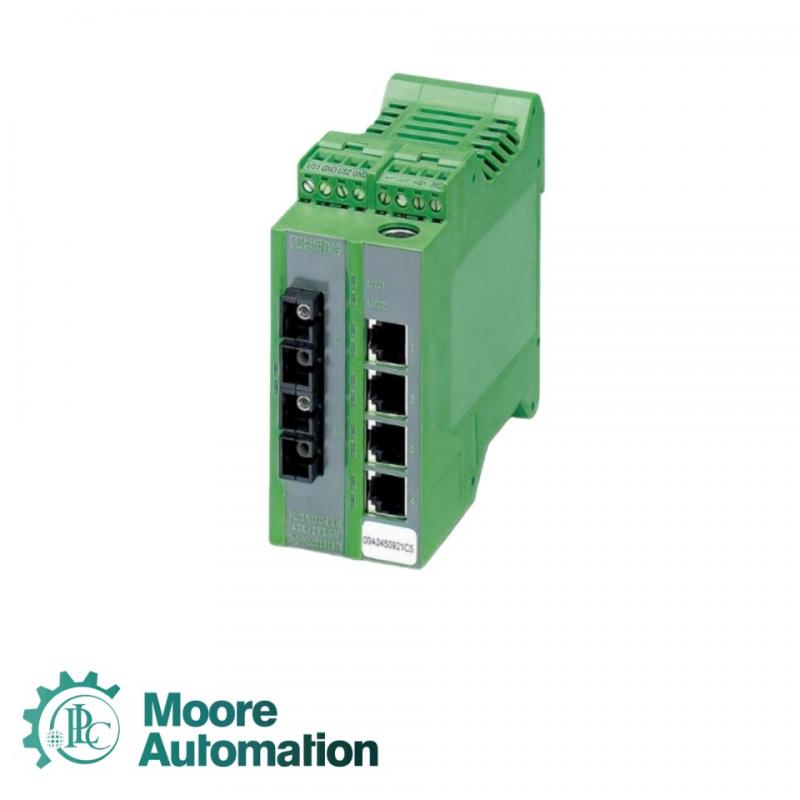

Phoenix Contact LM 4TX/2FX / 2832658 Industrial Ethernet Switch

Phoenix Contact LM 4TX/2FX / 2832658 Industrial Ethernet Switch

Phoenix Contact LM 4TX/2FX / 2832658 Industrial Ethernet Switch

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Specifications

Product Name: LM 4TX/2FX / 2832658 Payment: T/T

Brand Name:LM 4TX/2FX / 2832658 Shipping Port: Xia men

Product Origin: Germany Lead Time：in stock

Order(MOQ):1 Delivery time: 1-3 days

John Yang: At Your Service!
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Product Information

The compact Lean Managed Switches (LM) enable the flexible and cost-effective creation of managed Ethernet networks in automation applications. Thanks to the wide range of connection versions and the extended temperature range of -40°C to +70°C, it optimally meets the requirements of industrial applications. It supports PROFINET conformance class A. And its integrated software enables the redundant creation, diagnostics, and monitoring of networks using IT standard protocols.

Parameter Information

Size: 45 mm * 99 mm * 112 mm
Connection method: RJ45
Note: Automatic negotiation and automatic crossover
Transmission speed: 10/100 Mbps
Transmission medium: Copper
Transmission distance: 100 meters (per segment)
Number of channels: 4 RJ45 ports
Connection method: SC
Transmission speed: 100 Mbps (full duplex)
Transmission medium: multimode optical fiber
Connection method: RS-232-C, 6-pin MINI-DIN socket (PS/2)
Diagnostic function: 1:1 port mirroring
Signal contact control voltage: 24 V (typical)
Signal contact control current: 100 mA
PROFINET compatibility level: Class A
Filtering functions: QoS, up to 8 VLANs, IGMP Query, Auto Query Port, extended multicast filtering
Supply voltage (DC): 24 V DC (redundant)
Power supply voltage range: 18.5... 30.5 V DC
Power supply interface: COMBICON, maximum wire cross-section of 2.5 mm ²
Residual Ripple: 3.6 VPP (within allowable voltage range)
Typical current consumption: 250 mA @ 24 V DC
Protection level: IP20
Working temperature: -40... 70 ° C
Storage/transportation temperature: -40... 85 ° C
Allowable humidity (working): 30... 95% (no condensation)
Allowable humidity (storage/transportation): 30... 95% (no condensation)
Vibration (working): 5 g, 150 Hz (IEC 60068-2-6)
Air pressure (working): 80... 108 kPa (altitude 2000 m)
Maximum consumption of rated power: 6 W
Compliant with EMC Directive: 2014/30/EU
Immunity standards: IEC 61000-6-2, IEC 61000-4-2 (ESD) Class B, IEC 61000-4-3A, IEC 61000-4-4 B, IEC 61000-4-5 B, IEC 61000-4-6A
Noise immunity: EN 61000-6-2:2005
Noise emission: EN 61000-6-3/-4

FAQ

Q: What is the installation method of this switch?
A: Supports DIN rail installation, suitable for modular installation in industrial control cabinets or cabinets.

Q: What are the number and speed of RJ45 Ethernet interfaces?
A:There are 4 RJ45 ports in total, supporting 10/100 Mbps adaptive transmission, automatic negotiation, and automatic crossover.

Q: What type of product does this switch belong to and what are its basic functions?
A: It belongs to the Lean Managed Switch series of modular switches, supporting store and forward forwarding, IEEE 802.3 standard, 2 priorities (IEEE 802.1p), TCP/IP, BootP, port mirroring, built-in web server, multicast filtering, IGMP snooping, VLAN, RSTP, DHCP server, etc.

Q: What network redundancy and VLAN functions are supported?
A: Supports STP, RSTP, FRD redundancy protocols; Supports up to 8 VLANs, IGMP multicast queries, and extended multicast filtering..
