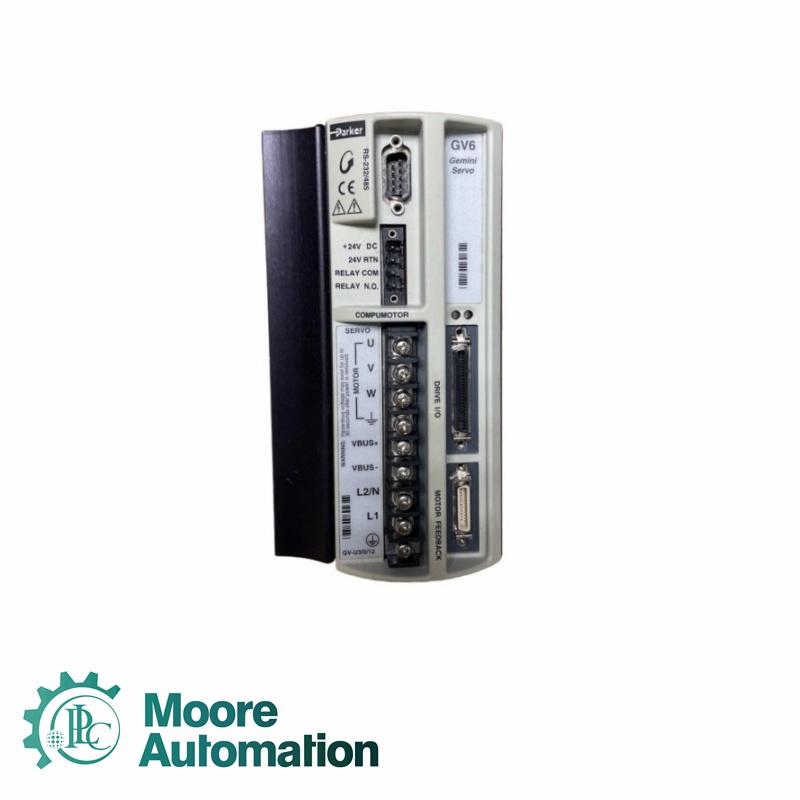

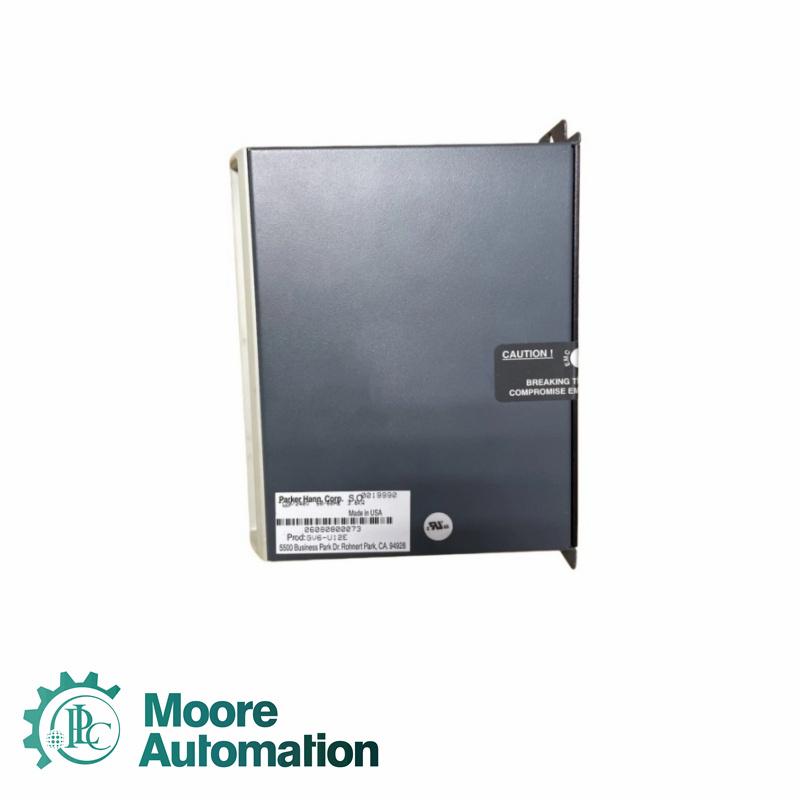

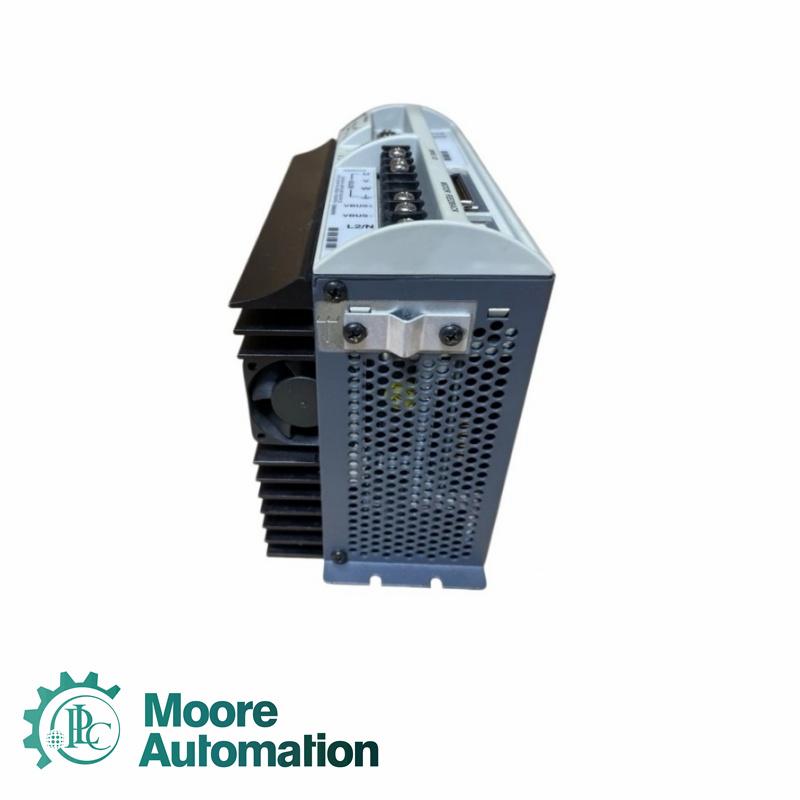

Parker GV6-U12E-NK Servo Drive

Top Sales Manager--John Yang

Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Quick Details

Brand name:Parker

Model: GV6-U12E-NK

Delivery time: 1-3 days

Payment method: T/T

Quality: 100% original and 100% brand

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Product Overview

The Gemini GV-series single-axis servo drives and servo drive/controllers are available with 3 levels of control across 6 power ratings, offering power outputs from 0.6 to 18kVA and input power supply options of 1*120VAC to 1/3*240VAC. The Gemini GV servo drives accept accept industry standard ±10V torque/velocity commands, step and direction or CW/CCW position command signals and feature simplified configuration and tuning, plus digital notch filters to help eliminate mechanical resonance. The Gemini GV is easily configurable via RS232/485 using Parker's Motion Planner™ on a PC or Pocket Motion Planner™ on a Window's CE™-based palm PC. Tuning and configuration is made easy - it requires only the motor and some basic load information to permit the drive to determine baseline-tuning gains. These are simple parameter entries the user can complete with the help of the front-end software tools. Users also have the ability to override these parameters for special application requirements.

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Performance Specifications

Dimensions: 8.5×17.5×20.6 cm
Weight: 1.65 kg
Drive Axis Type: Single Axis Technology
Product Series: Gemini
Input Voltage: 1×120 to 240 VAC
Continuous Output Current Rating: 6 A (15 A peak for 6 s)
Compatible Motor Type: Brushless Servo, Direct Drive Servo, Frameless Servo, Linear Servo
Compatible Feedback Device: Resolver, Incremental Encoder
Modes of Control: Programmable Control - Proprietary Language, Electronic Gearing, Electronic CAM, Position Control (External Command), Velocity Control (External Command), Torque Control (External Command), Analog Command Input, Step/Direction Command Input
Communication Interface: RS232/RS485, Ethernet TCP/IP
Operating Temperature: 0 to 50 °C (32 to 122 °F)
Maximum Shaft Power: 1.75 kW (continuous)
Power Output Rating: 2.3 kVA
Feedback Options: Quadrature Encoder, Resolver
Control Options: ±10V and Step/Direction, Basic Controller or Multitasking 6K Motion Controller
Specifications Met: CE (EMC & LVD), UL Recognized, cUL Recognized

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Protection
Short-circuit protection – phase-to-phase and phase-to-ground
Inrush current protection
Drive over-voltage protection
Drive under-voltage (brownout) protection
Drive and motor over-temperature protection
Current-foldback protection
Regeneration protection
