 P+F TPH-LBF-IA1.36.DE.1 FieldConnex Fieldbus Surge Protector
TPH-LBF-IA1.36.DE.1 TPH-LBF-IA1.36.DE.1

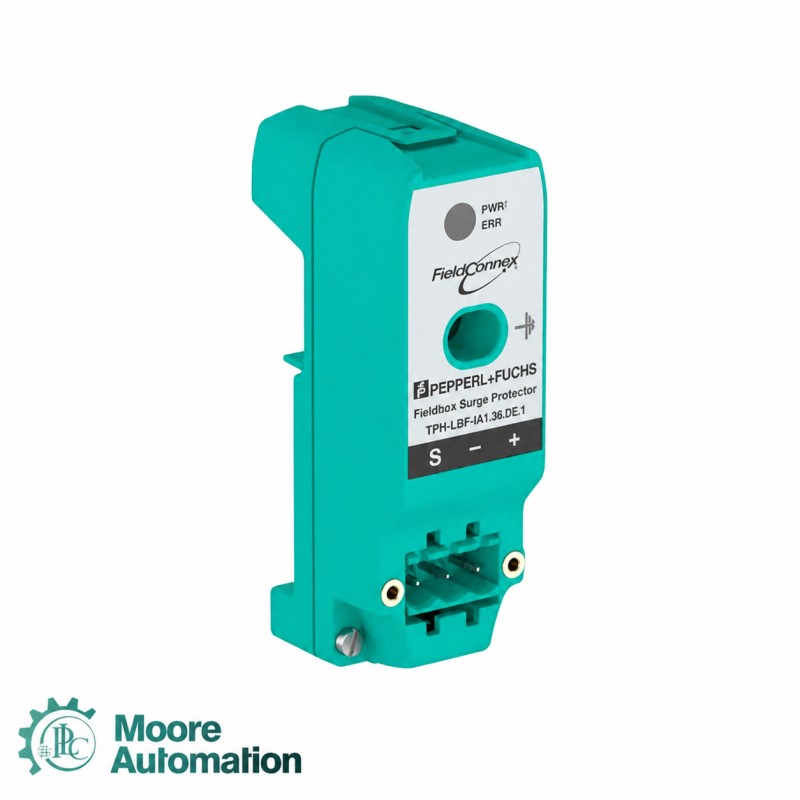

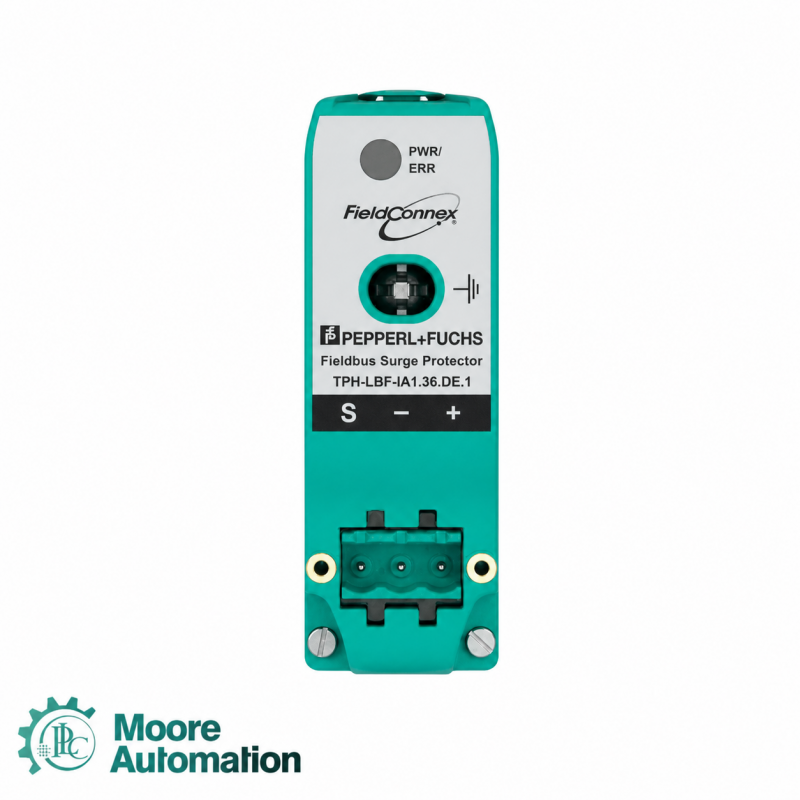

P+F TPH-LBF-IA1.36.DE.1 FieldConnex Fieldbus Surge Protector

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Item NO.:

    TPH-LBF-IA1.36.DE.1

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    GERMANY

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    GERMANY

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The P+F TPH-LBF-IA1.36.DE.1 is a diagnostic fieldbus surge protector in the Pepperl+Fuchs FieldConnex Series. It plugs between a FieldConnex Power Hub and a trunk cable to protect FOUNDATION Fieldbus H1 or PROFIBUS PA installations from transient overvoltage. The P+F TPH-LBF-IA1.36.DE.1 is rated for 36 V and 600 mA, consumes no more than 6 mA and operates from −40 to +70 °C.
Product versionFieldbus surge protector with diagnosis
Product seriesPepperl+Fuchs FieldConnex Series
Rated voltage36 V
Rated current600 mA
Self-consumption6 mA maximum
Continuous voltage33 V maximum
Line-to-line response1 ns maximum
Line-to-earth response100 ns maximum
Ambient temperature−40 to +70 °C
Degree of protectionIP20
Application Industry
01
FOUNDATION Fieldbus H1 TrunksProtects FieldConnex trunk cabling and connected equipment against transient overvoltage on FF H1 networks.
02
PROFIBUS PA InstallationsProvides pluggable surge protection between a FieldConnex Power Hub and PROFIBUS PA trunk cable.
03
Hazardous-Area Fieldbus SystemsSupports fieldbus installations in hazardous Zone 1 and Division 1 locations in accordance with the product approvals.
04
Condition-Based Fieldbus MaintenanceUses the integrated diagnostic indication to identify healthy operation or maintenance-required conditions.
FAQ
What is P+F TPH-LBF-IA1.36.DE.1?
It is a Pepperl+Fuchs FieldConnex fieldbus surge protector with diagnosis for FOUNDATION Fieldbus H1 and PROFIBUS PA trunks.
Where is the TPH-LBF installed?
It plugs between a compatible FieldConnex Power Hub and the fieldbus trunk cable.
What are the rated voltage and current?
Pepperl+Fuchs specifies 36 V rated voltage and 600 mA rated current, with 33 V maximum continuous voltage.
Can this protector be used in hazardous areas?
Yes. The official product documentation includes hazardous Zone 1 and Division 1 fieldbus applications, subject to the applicable certification and installation requirements.
Can Moore Automation check Power Hub and trunk compatibility before shipment?
Yes. Send the exact Power Hub model, protocol, hazardous-area classification and clear terminal photos so the correct surge-protection configuration can be verified.
Company Service
✓ Genuine Parts100% original with full traceability
→ Fast DeliveryGlobal shipping directly from stock
⚙ Tech SupportExpert assistance available 24/7
+ Custom SolutionsTailored configurations for your project
◆ WarrantyComprehensive after-sales protection
▤ DocumentationComplete technical resource library
Recommended Products

Need P+F TPH-LBF-IA1.36.DE.1 FieldConnex Fieldbus Surge Protector?

Contact Moore Automation for pricing, availability and technical information.

Request a Quote →
Emailsales6@askplc.com
Phone / WhatsApp+86-17359287459
Address32D units, GuoMao Building, No 388 Hubin South Road, Siming district, Xiamen, China
