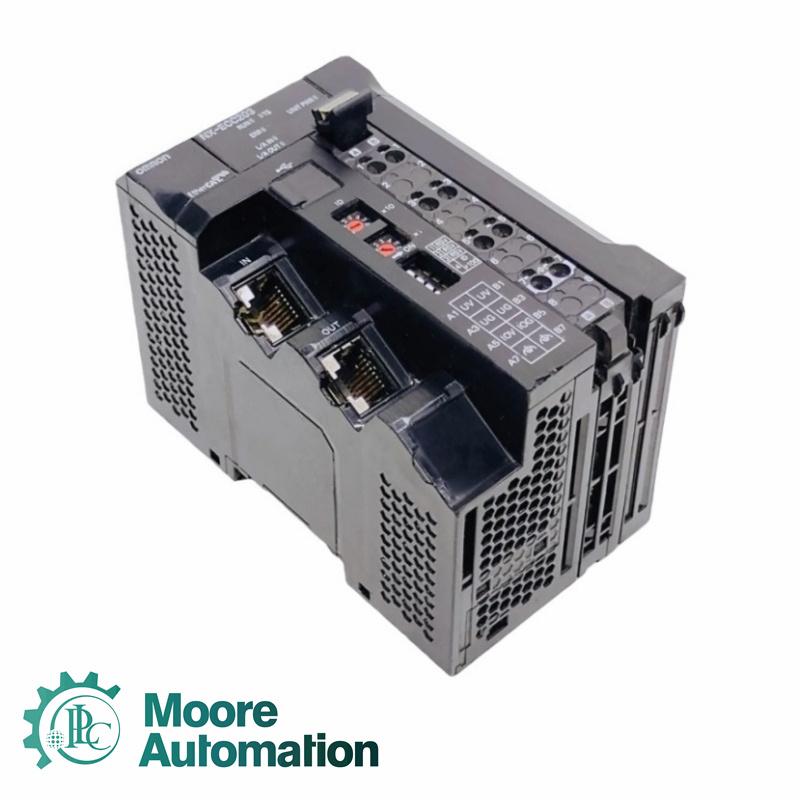

OMRON NX-ECC203 EtherCAT Coupler Unit

Communications Cycle in DC Mode: 125 to 10,000 μs
Current Consumption: 1.25 W or lower
Maximum I/O Power Supply Current: 10 A
Number of Connectable NX Units: 63 Units max.
Send/Receive PDO Data Sizes Input: 1,024 bytes max. (including input data, status, and unused areas)
Send/Receive PDO Data Sizes Output: 1,024 bytes max. (including output data and unused areas)
Mailbox Data Size Input: 256 bytes
Mailbox Data Size Output: 256 bytes
Mailbox: Emergency messages and SDO requests
I/O Jitter Performance Inputs: 1 μs max.
I/O Jitter Performance Outputs: 1 μs max.
Power Supply Voltage: 24 VDC (20.4 to 28.8 VDC)
NX Unit Power Supply Capacity: 10 W max.
NX Unit Power Supply Efficiency: 70%
Isolation Method: No isolation between NX Unit power supply and Unit power supply terminals
Current Capacity of Power Supply Terminals: 4 A max.
NX Unit Power Consumption: 1.25 W max.
Current Consumption from I/O Power Supply: 10 mA max. (for 24 VDC)
