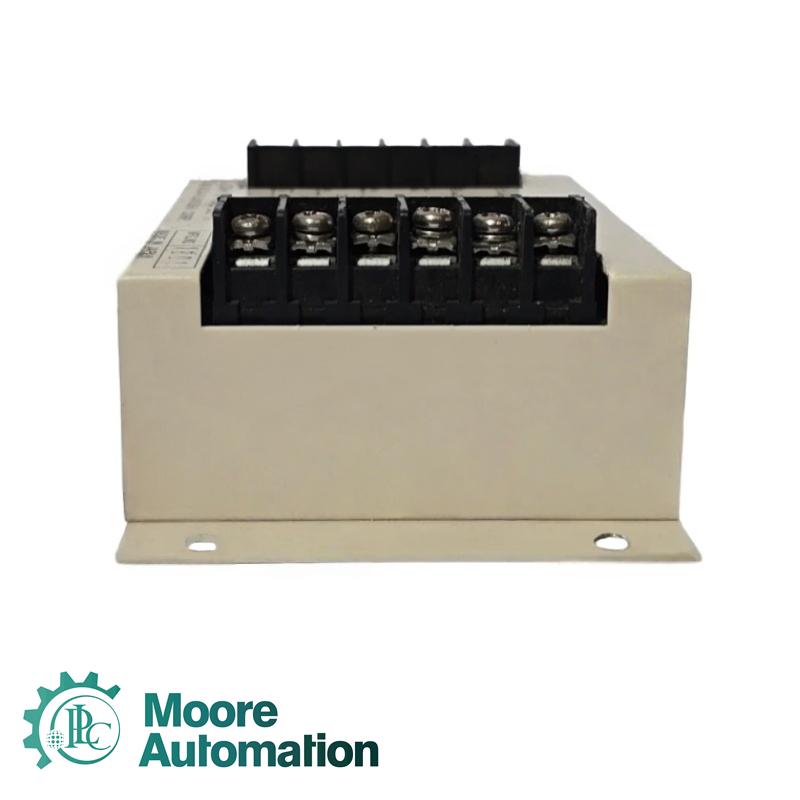

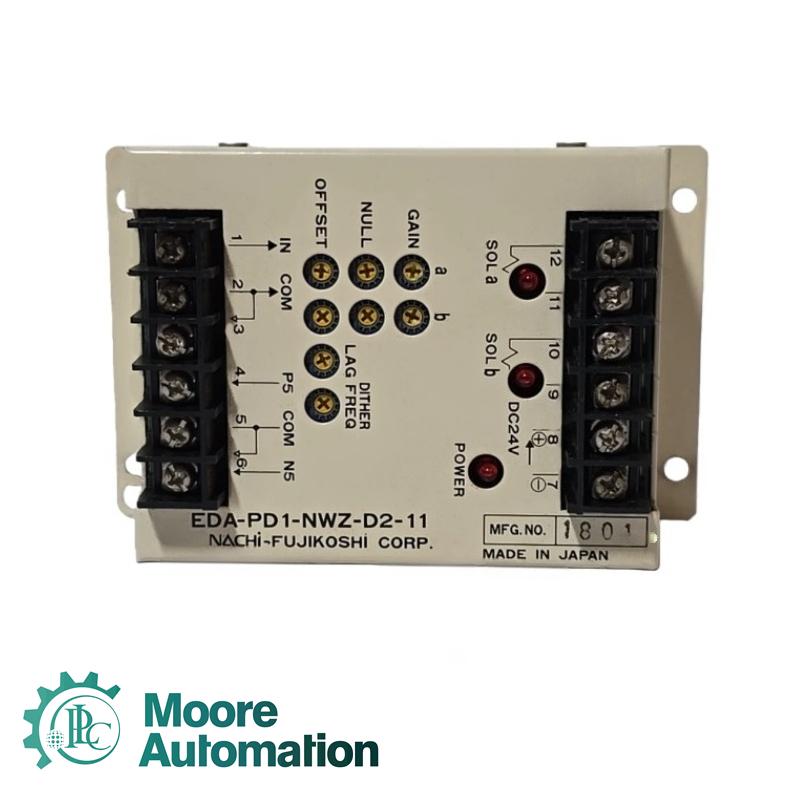

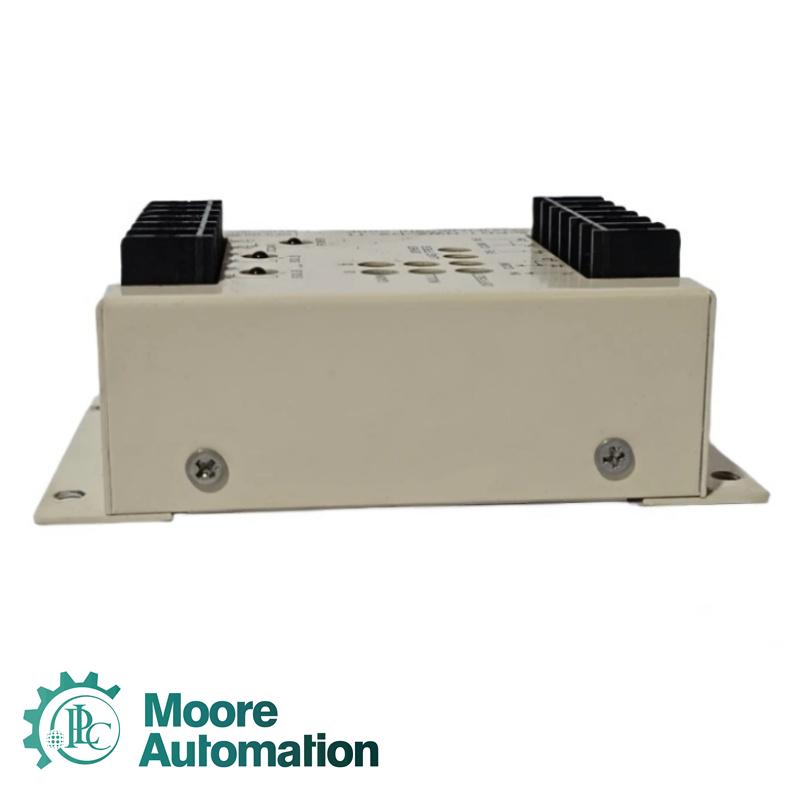

NACHI EDA-PD1-NWZ-D2-11 Multi-function Power Amplifier
Brand:
OtherOrder(MOQ):
1Payment:
T/T(100% Advance Before Delivery)Product Origin:
JapanColor:
New and originalShipping Port:
FOB XiamenLead Time：
In stock
|
Contact |
||
|
Sales Mnager： |
Email: |
Mobile(WhatsApp): |
|
John Yang |
||
Details
Type Number: EDA-PD1-NWZ-D2-11
Weight: 0.3kg
Input Type: 1 DC Inputs
Maximum Output Current: 900 mA (20N solenoid)
Input Voltage: -10 to +10 VDC
Input Impedance: 50 kΩ
Externally Set Variable Resistance: 10 kΩ
Drive Solenoid: SOL a, SOL b
Zero Adjust (NULL): 0 to 900 mA
Gain Adjust (GAIN): 0 to 900 mA
2.5V: +5 VDC (5 mA)
External Power Supply: -5 VDC (5 mA)
Time Lag (LAG): 0 to 2 sec
Dither Frequency (DITHER): 80 to 250 Hz
Power Supply Voltage: DC 24V (DC 22 to 30V)
Power Consumption: 30 VA
Allowable Ambient Temperature: 0 to 50 °C
Temperature Drift: 0.2 mA/°C max
Driven Valve: Pressure, flow, direction control valves
FAQ
Q: What is the maximum output current of this amplifier?
A: The maximum output current is 900 mA for a 20N solenoid.
Q: What is the input voltage range for this amplifier?
A: The input voltage range is -10 to +10 VDC.
Q: Can the zero and gain be adjusted?
A: Yes, the zero (NULL) and gain (GAIN) can be adjusted from 0 to 900 mA.
Packing&Delivery
1)100% full New! - Original Factory Seal !
2)Warranty: 12 months!
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3 days after payment
|
