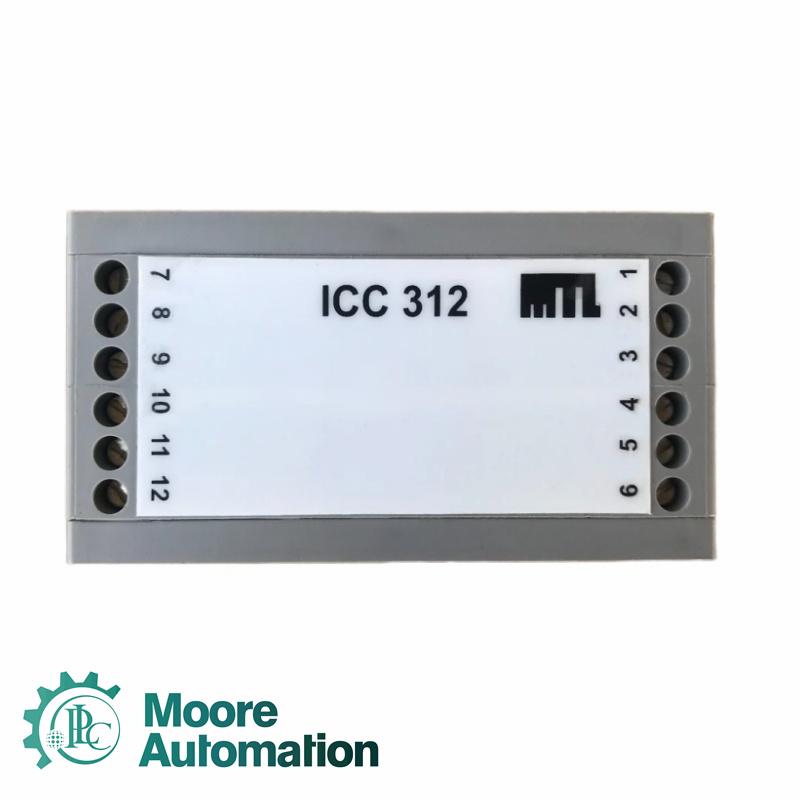

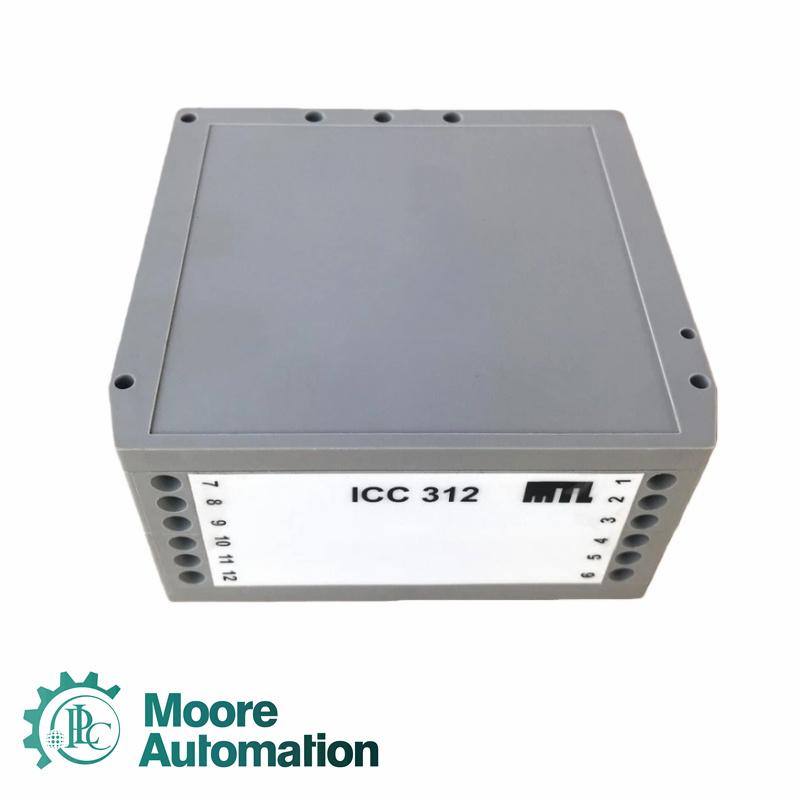

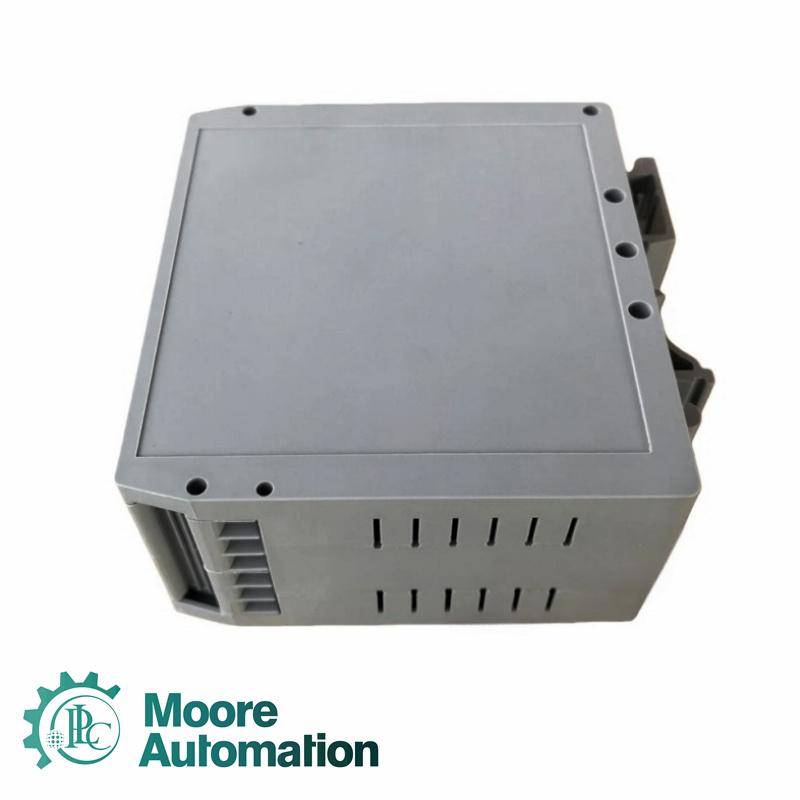

MTL ICC312 Repeater Power Supply

Number of Input Channels: One (either terminals 7&8 or 8&9)
Input Channel (Terminals 7 & 8): 2-wire transmitter supply 4 to 20 mA
Input Channel (Terminals 8 & 9): 4 to 20 mA current source
Number of Output Channels: Two
Input Signal: 4 to 20 mA
Isolation Between Input, Output 1, Output 2 and Power Supply: 1500 V dc/ac
Power Supply: 20 to 35 V dc
Voltage Available for Transmitter: 20 V minimum at 20 mA
Voltage Drop Across Input from Current Source (Terminals 8 & 9): 2.4 V maximum
Power Requirements (Supplying a Transmitter): 150 mA maximum at 20 V dc with a 20 mA signal
Power Requirements (Supplying a Transmitter): 120 mA maximum at 35 V dc with a 20 mA signal
Power Requirements (From a Current Source): 110 mA maximum at 20 V dc with a 20 mA signal
Power Requirements (From a Current Source): 90 mA maximum at 35 V dc with a 20 mA signal
Load Resistance: 0 to 1 kΩ
Transfer Accuracy at 25°C for Both Outputs: Better than 20 μA
Line-Fault Detection (LFD) Output: Transistor open collector output
Temperature Drift: <1 μA/°C
Common Mode Rejection Ratio: 150 dB typical
RFI Susceptibility: Conforms to IEC 801.3
Ambient Temperature Limits (Operating): –20°C to +55°C
Ambient Temperature Limits (Storage): –40°C to +80°C
Humidity: 5 to 95% RH, non-condensing
Terminals: Accommodate 2.5 mm² conductors
Casing: 40 mm width polyamide casing
Mounting: Directly onto T- or G section DIN rail to DIN 46277
