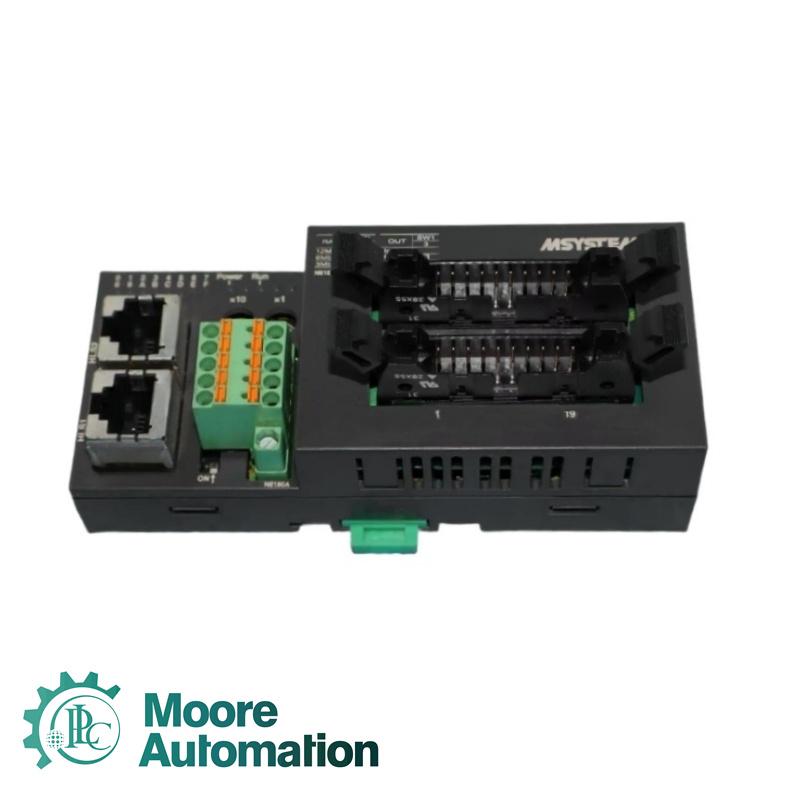

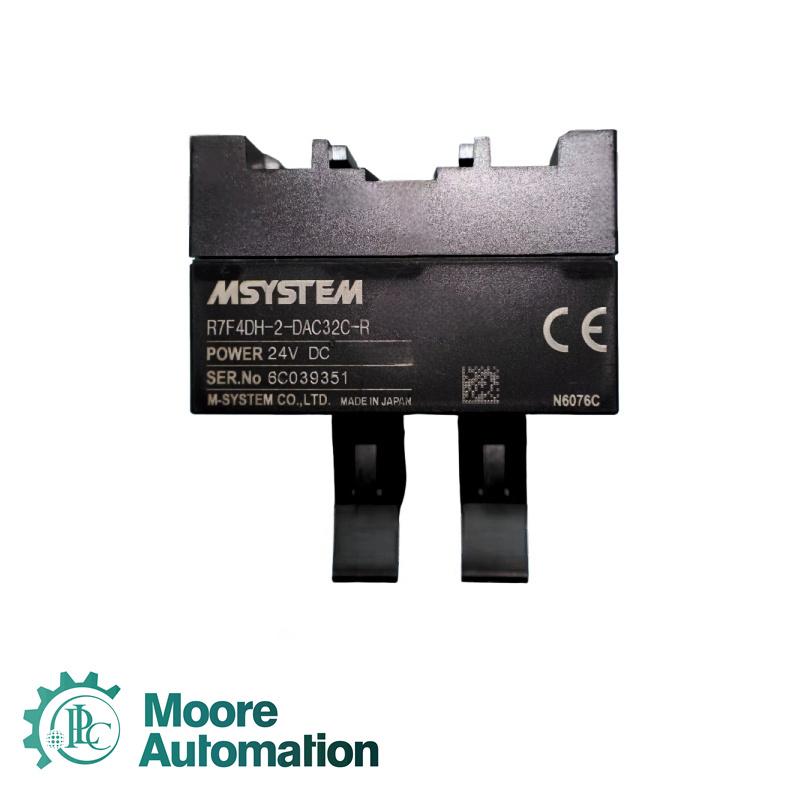

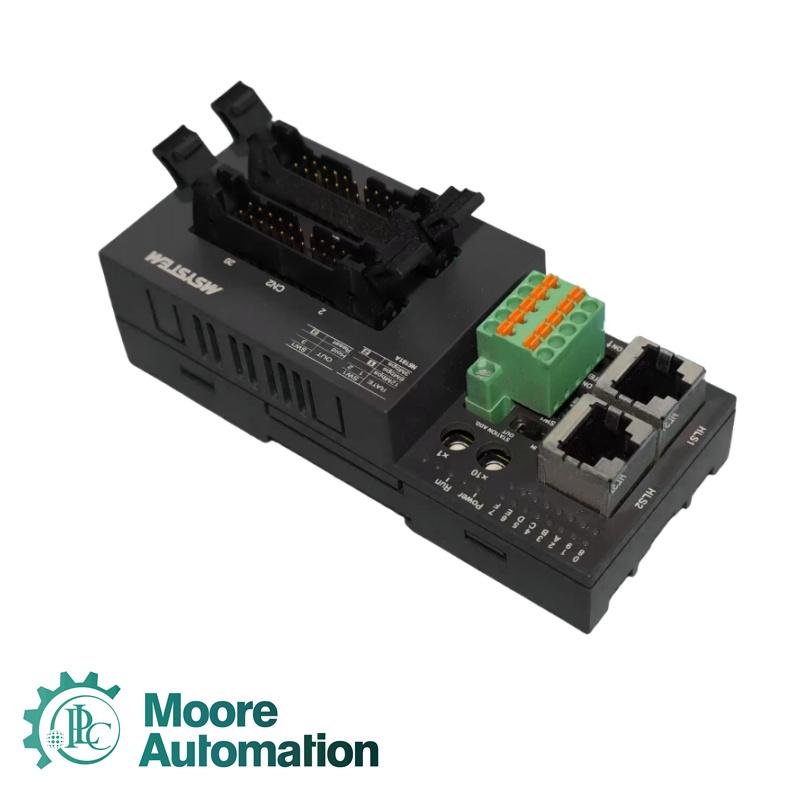

MSYSTEM R7F4DH-2-DAC32C-R Npn Transistor Output Module

John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

Specification

Input Common: Positive common per 16 points
Output Common: Negative common per 16 points
Input Rating/Load Voltage: 24 V DC ±10 %, ripple 5 %p-p max.
Number of I/O: Input 16 points, Output 16 points
Maximum I/O Applicable at Once: No limit (at 24 V DC)
I/O Status Indicator: LED turns ON with contact ON
Isolation: I/O or sensor excitation to HLS to power input to FE
Data Allocation: 1
Input ON Voltage/Current: ≥ 15 V DC (I/O's X0 through XF to +24 V) / ≥ 3.5 mA
Input OFF Voltage/Current: ≤ 5 V DC (I/O's X0 through XF to +24 V) / ≤ 1 mA
Input Current: ≤ 5.5 mA per point at 24 V DC
Input Resistance: Approx. 4.4 kΩ
Input ON Delay: ≤ 0.5 msec.
Input OFF Delay: ≤ 0.5 msec.
Rated Output Current: 0.1 A per point, 1.6 A per common
Output Residual Voltage: ≤ 1.2 V
Output Leakage Current: ≤ 0.1 mA
Output ON Delay: ≤ 0.2 msec.
Output OFF Delay: ≤ 0.5 msec.
Overload Current Protection Function: Limits the current value when overcurrent is detected
Overheat Protection Function: Turns OFF the output when overheat is detected (when driving an inductive load, connect a diode in parallel with the load)

FAQ

Q: What is the input voltage rating of the R7F4DH-2-DAC32C-R?

A: The input voltage is 24 V DC ±10 % with 5 % ripple max.

Q: How many I/O points does the module support?

A: The module supports 16 input points and 16 output points.

Q: What is the rated output current per point?

A: The rated output current is 0.1 A per point.
