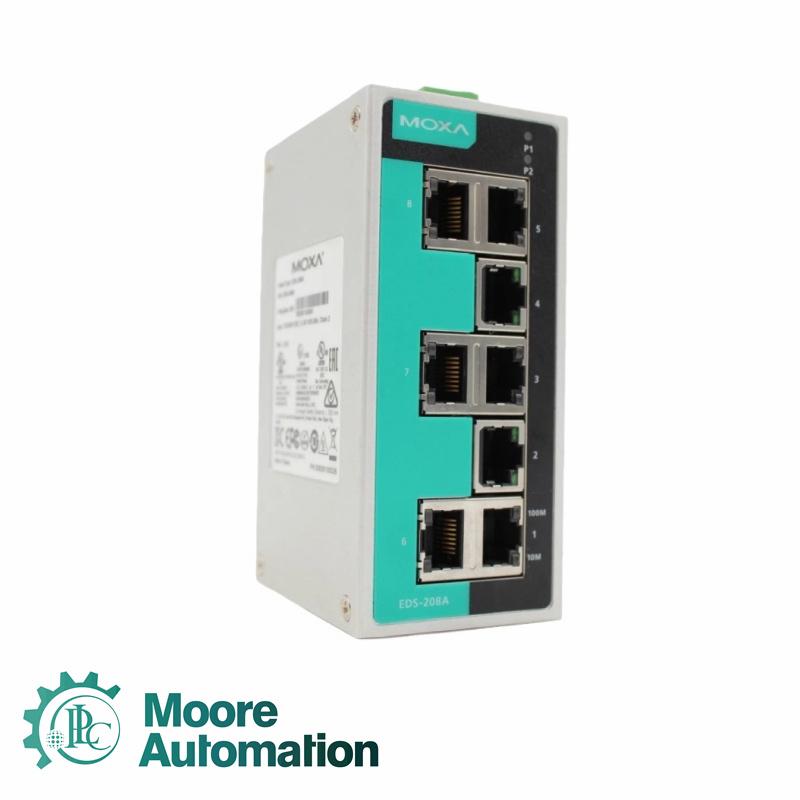

Moxa EDS-208A Unmanaged Industrial Ethernet Switch

For more information about EDS-208A

Sale Manager

Email

Mobile(WhatsApp)

John Yang

sales3@askplc.com

86-18150117685

Full Details of EDS-208A

Origin:Taiwan

Delivery time: 1-3 days

Brand name:Moxa

Payment method: T/T

Model: EDS-208A

Quality: 100% original new

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

Main Parametersof EDS-208A

Ethernet interface: 10/100BaseT(X) port (RJ45 connector)
Ethernet interface: 100BaseFX port (multimode SC connector)
Ethernet interface: 100BaseFX port (multimode ST connector)
Ethernet interface: 100BaseFX port (single-mode SC connector)
Ethernet interface: standard optical fiber
MAC address table size: 2K
Data packet buffer size: 768 kb
Processing type: Store-and-forward
Connect: One detachable 4-contact terminal block
Input current: EDS-208A/208A-T, EDS-208A-M-SC/M-ST/S-SC series: 0.11 A @ 24 VDC
Input current: EDS-208A-MM-SC/MM-ST/SS-SC series: 0.15 A @ 24 VDC
Input voltage: 12/24/48 VDC, redundant dual power supply input
Operating voltage: 9.6 to 60 VDC
Overload current protection: support
Reverse connection protection: support
Ethernet interface feature: Broadcast storm protection
Shell: aluminum
IP Class: IP30
Size: 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 inches)
Weight: 275 g (0.61 lb)

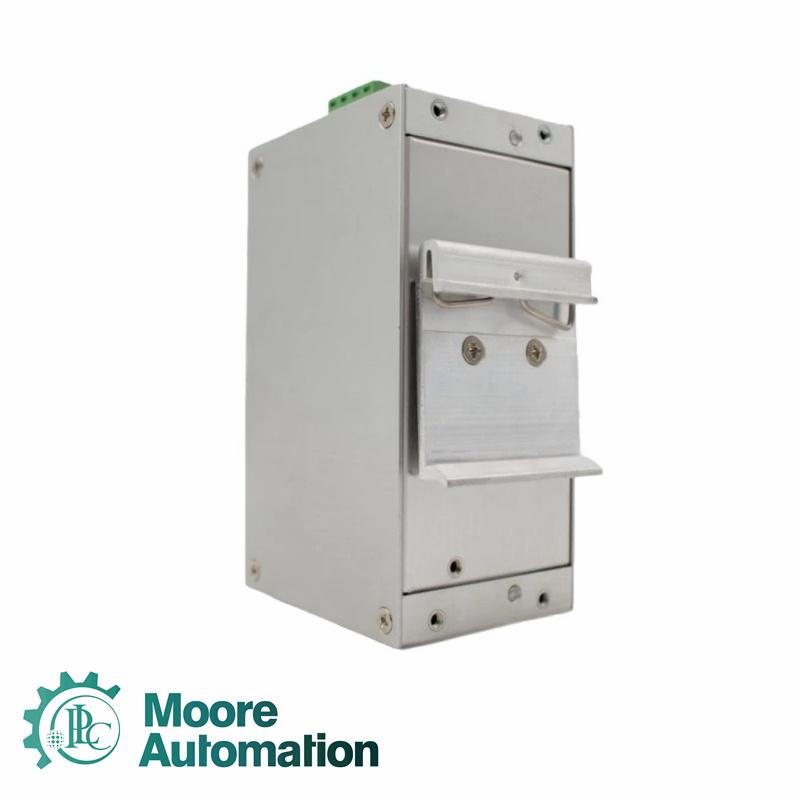

Install: Rail mounting, wall mounting (with optional kit)
Operating temperature: Standard model: -10 to 60°C (14 to 140°F)
Operating temperature: Wide temperature model: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging): -40 to 85°C (-40 to 185°F)
Relative humidity: 5% to 95% (non-condensing)

Product Outlineof EDS-208A

The EDS-208A series of 8-port industrial Ethernet switches features IEEE 802.3 and IEEE 802.3u/x, 10/100M full/half-duplex, and MDI/MDI-X auto-sensing. The EDS-208A series has redundant dual power inputs of 12/24/48 VDC (9.6 to 60 VDC), allowing simultaneous connection of two powered DC power supplies. This series of switches is designed for harsh industrial environments such as marine (DNV/GL/LR/ABS/NK), rail, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark) and complies with FCC, UL, and CE standards. The EDS-208A switch supports standard temperatures from -10 to 60°C or a wide operating temperature range of -40 to 75°C. All models have undergone 100% burn-in testing to meet the specific needs of industrial automation control applications. Furthermore, the EDS-208A switch features a DIP switch to enable or disable broadcast storm protection, providing a flexible solution for diverse industrial applications.

FAQ of EDS-208A

What is the Moxa EDS-208A?
It is a Unmanaged Industrial Ethernet Switch.

Is this product brand new?
Yes, Moxa EDS-208A is brand new, original, unused, and factory sealed

Do you provide warranty as standard?
We provide a full 12-month warranty for the Moxa EDS-208A. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.

What shipping methods are used for Moxa EDS-208A?
Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

Control Systems (DCS, PLC/SPS, CNC)

- Panel Controllers

- HMI and Display Panels

- Industrial PC’s

- Drives ( Frequency Inverter and Servo)

- Motors

Packing & Delivery

100% full New! - Original Factory Seal !

Warranty: 12 months!

Package: Original packing with cartons.

Delivery time: Shipped in 3 days after payment
