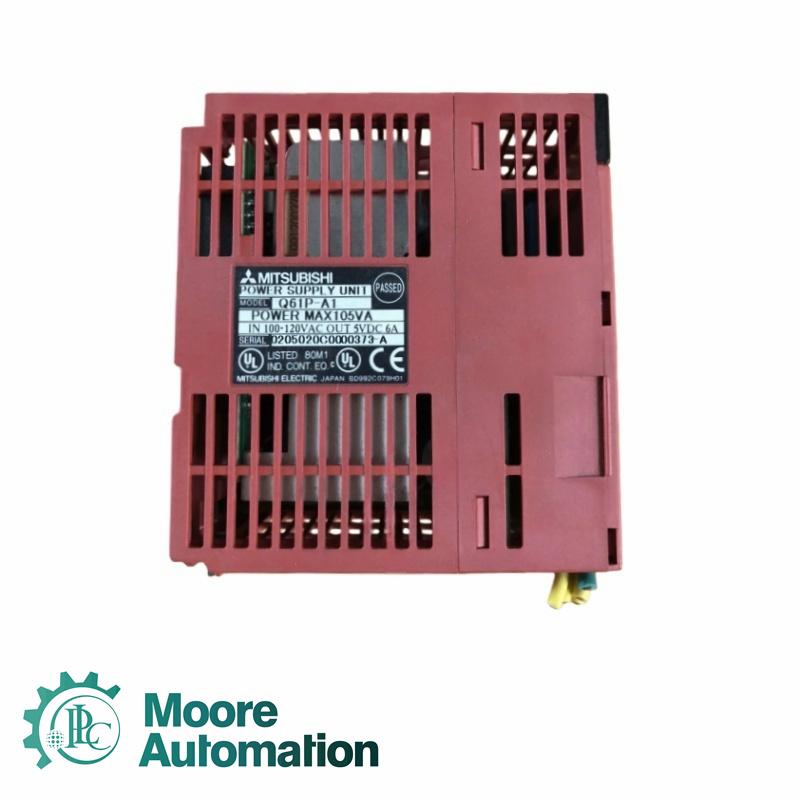

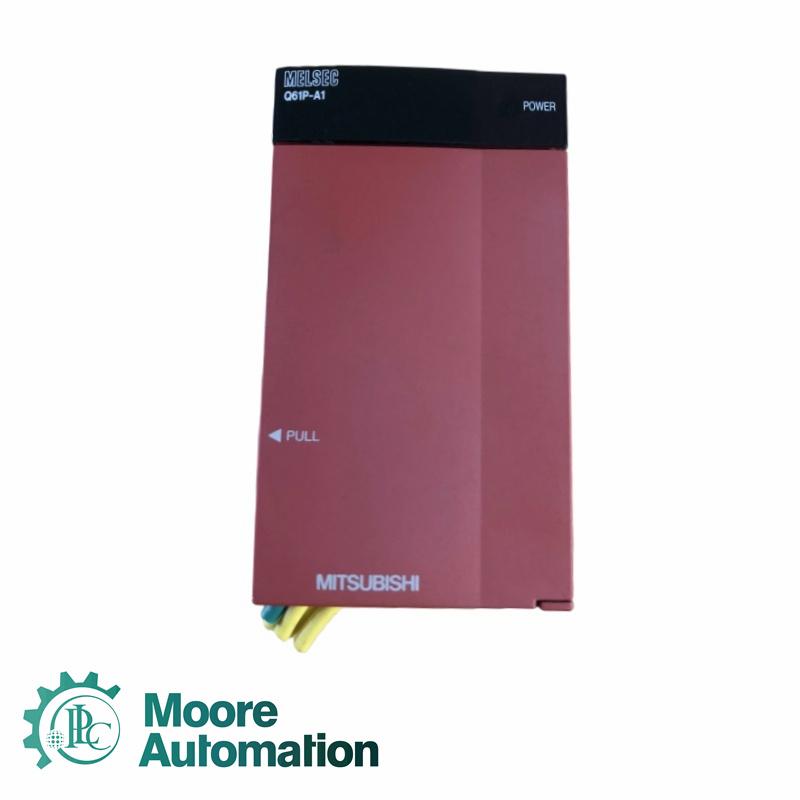

MITSUBISHI Q61P-A1 Power Supply Module

Key Specifications

Rated Input Voltage:100 to 120 VAC
Variable Input Voltage Range:100 to 240 VAC
Allowable Input Voltage Range:85 to 264 VAC (-15% to +10%)
Input Frequency:50/60 Hz ±5%
Allowable Momentary Power Failure:Within 20 msec
Inrush Current:20 A, 8 msec or lower
Maximum Input Apparent Power:130 VA or lower
Efficiency:70% or higher
ERR Contact Output:24 VDC, 0.5 A
Rated Output Voltage:5 VDC
Rated Output Current:6.0 A
Overcurrent Protection:6.6 to 7.9 A
Overvoltage Protection:5.5 to 6.5 V

Long Desription:

The MITSUBISHI Q61P-A1 Power Supply Module operates with a wide input voltage range of 100 to 240 VAC, ensuring stable 5 VDC output at a rated current of 6.0 A. It features high-efficiency conversion of electrical power with overcurrent and overvoltage protection, while the ERR contact output provides 24 VDC signaling for fault detection. Designed for rapid response to momentary power interruptions within 20 msec, the module delivers reliable performance in varied industrial conditions. Its compact design, low inrush current, and effective thermal management make it suitable for secure and continuous operation in MELSEC-Q system applications.
