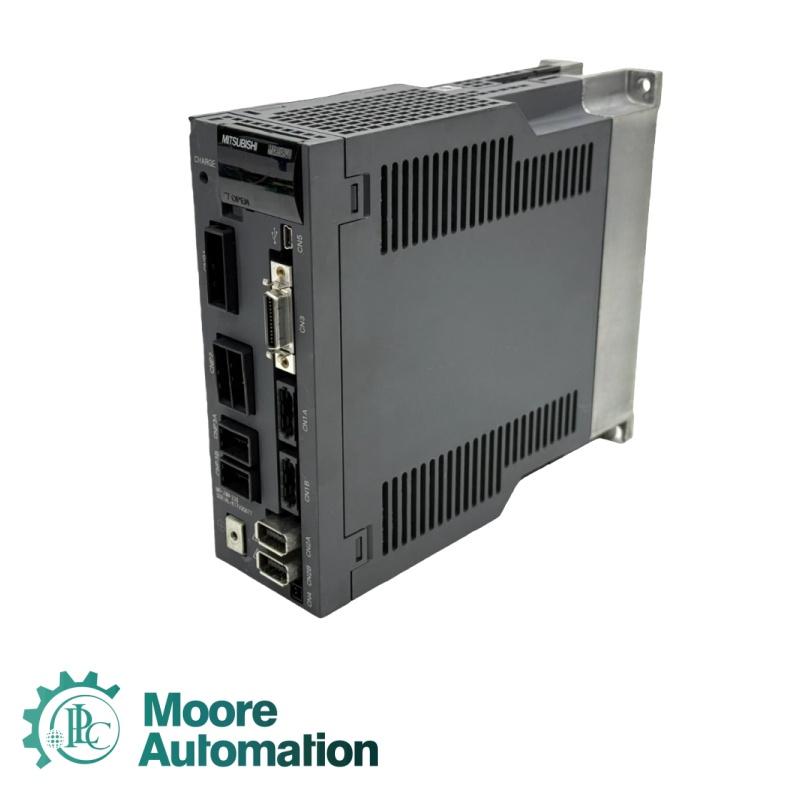

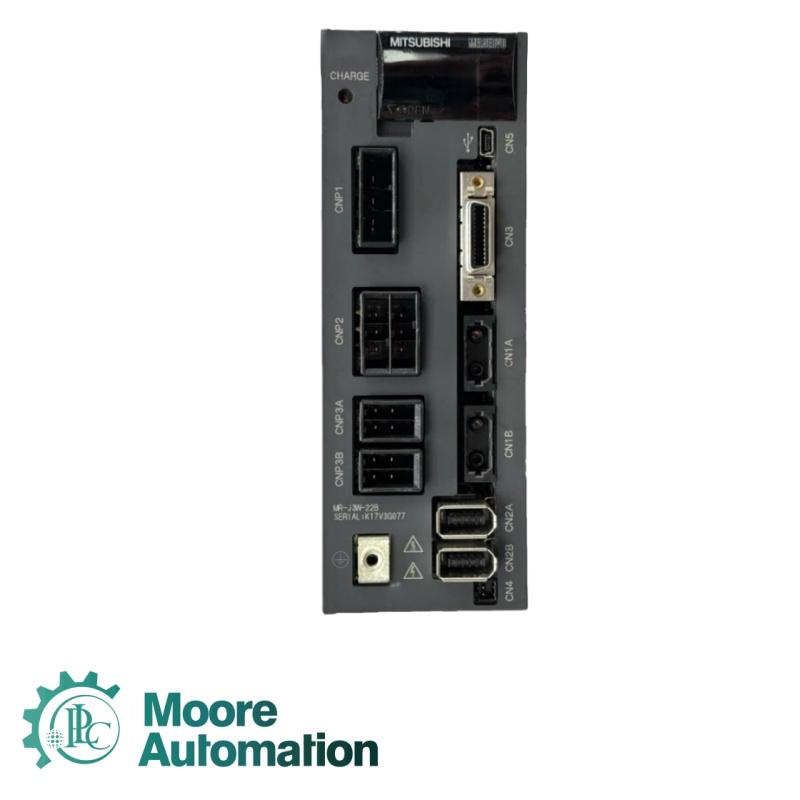

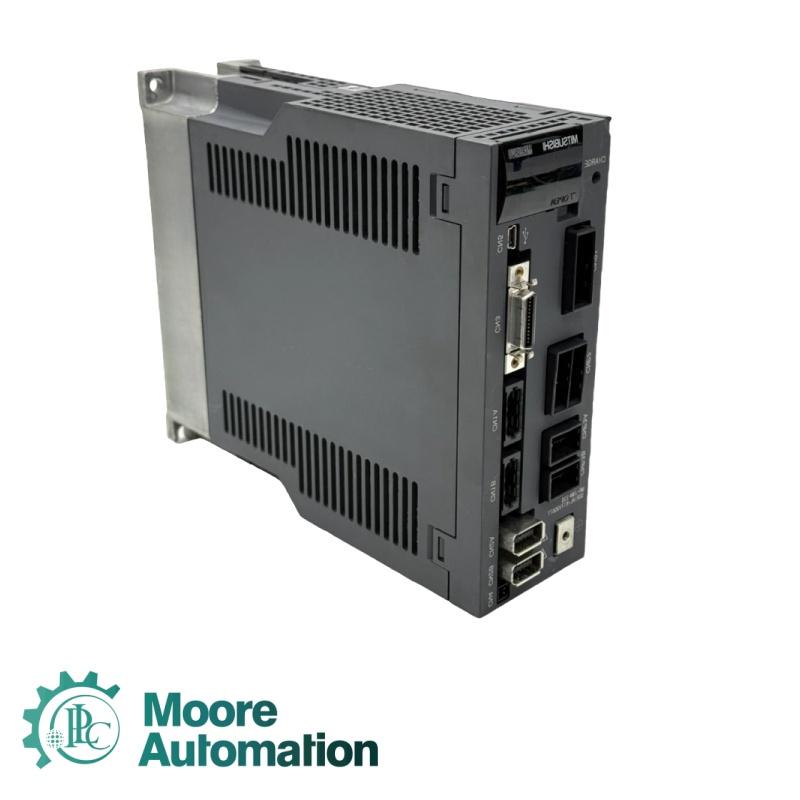

Mitsubishi MR-J3W-22B AC servo drives

Mitsubishi  MR-J3W-22B  AC servo drives

Input Voltage: 200–230 V AC, three-phase
Rated Input Current: 7.5 A
Continuous Output Current: 22 A
Peak Output Current: 66 A (3 sec)
Output Voltage: Matched to MR-J3 series servo motors
Control Power Supply: 24 VDC
Input Signal Types:
Pulse train (single-ended / differential)
Analog voltage input: 0–10 V / ±10 V
Analog current input: 4–20 mA
Isolation: Opto-isolated digital and analog inputs
Regenerative Braking: Integrated regenerative capability for energy recovery
Performance Parameters
Position Control Accuracy: ±0.01%
Speed Control Range: 0–4500 rpm (motor dependent)
Torque Control Accuracy: ±1% of rated torque
Control Loop Frequency: 4 kHz
Overload Capacity: 150% of rated torque for 3 seconds
Encoder Compatibility: Absolute and incremental encoders supported
Response Time: 0.3 ms typical
Input / Output Interfaces
Digital Inputs: 16 (isolated, programmable)
Digital Outputs: 8 (open collector / relay)
Analog Inputs: 2 (configurable: 0–10 V or 4–20 mA)
Analog Outputs: 1 (0–10 V or 4–20 mA)
