 MITSUBISHI MR-D05UDL3M-B MELSERVO 3 m STO Cable
MR-D05UDL3M-B MR-D05UDL3M-B MR-D05UDL3M-B

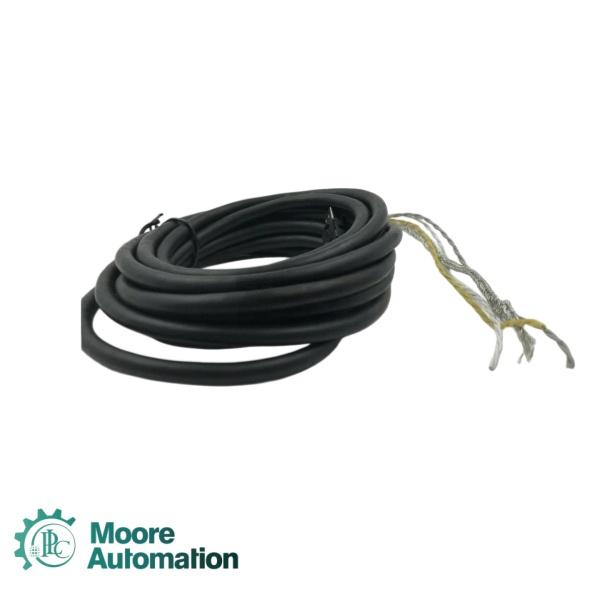

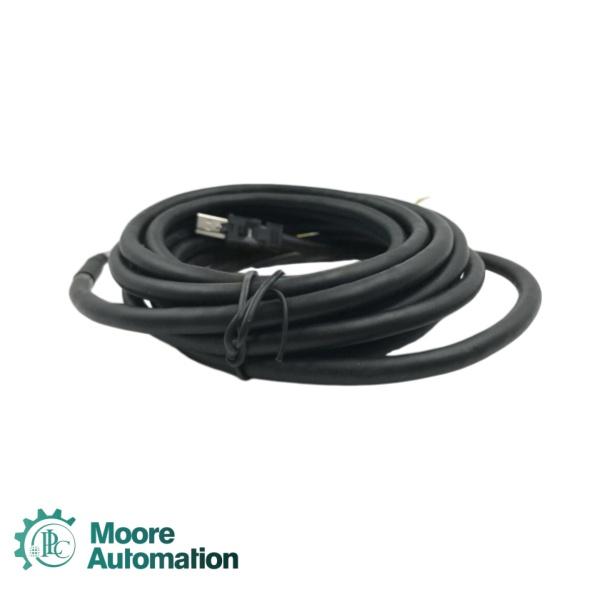

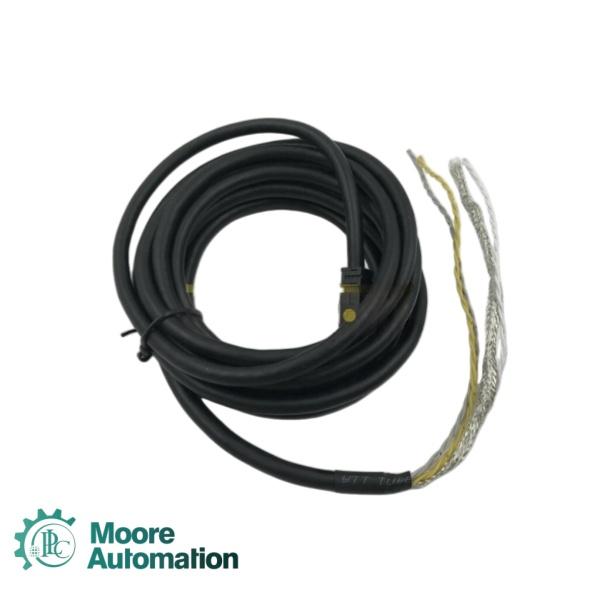

MITSUBISHI MR-D05UDL3M-B MELSERVO 3 m STO Cable

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Item NO.:

    MR-D05UDL3M-B

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    JAPAN

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    JAPAN

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The MITSUBISHI MR-D05UDL3M-B is a 3 m Safety Torque Off (STO) cable in the Mitsubishi Electric MELSERVO Series. Mitsubishi specifies MR-D05UDL3M-B for STO wiring with compatible MELSERVO-J5, MELSERVO-J4 and MELSERVO-J3 servo systems. It connects through the CN8 STO interface and carries the STO1, STO2, STOCOM, 24G, 24V, TOF1, TOF2 and TOFCOM signals. Mitsubishi lists material number 227986 and conformity with CE (RoHS), UKCA and China RoHS requirements. Confirm the applicable servo amplifier or drive-unit model in the Mitsubishi catalog before ordering.
ModelMR-D05UDL3M-B
Product typeSafety Torque Off (STO) cable
Cable length3 m
Product seriesMitsubishi Electric MELSERVO Series
Compatible servo seriesMELSERVO-J5 / J4 / J3
Connection interfaceCN8 STO connector
Material number227986
ComplianceCE (RoHS), UKCA, China RoHS
Application Industry
01
Servo Safety WiringConnects the Safety Torque Off circuit on compatible Mitsubishi MELSERVO-J5, J4 and J3 servo systems.
02
CN8 Interface ConnectionRoutes STO1, STO2, STOCOM, 24 V supply and TOF monitoring signals through the compatible drive unit's CN8 interface.
03
MELSERVO MaintenanceSupports compatibility-matched cable replacement during maintenance of installed Mitsubishi servo equipment.
04
CNC and Motion SystemsProvides the dedicated STO connection used with compatible Mitsubishi drive units in industrial CNC and motion-control installations.
FAQ
What is MITSUBISHI MR-D05UDL3M-B?
It is a 3 m Safety Torque Off cable for compatible Mitsubishi Electric MELSERVO servo systems.
Which MELSERVO series use MR-D05UDL3M-B?
Mitsubishi lists the cable for MELSERVO-J5, MELSERVO-J4 and MELSERVO-J3 Series equipment; the exact amplifier or drive-unit model should still be checked.
What are the cable length and connection interface?
The specified cable length is 3 m, and the cable connects to the compatible drive unit through the CN8 STO interface.
Which STO and feedback signals are carried?
The Mitsubishi wiring diagram identifies STO1, STO2, STOCOM, 24G, 24V, TOF1, TOF2 and TOFCOM conductors.
Can Moore Automation verify compatibility before shipment?
Yes. Send the servo amplifier or drive-unit model, a clear CN8 connector photo and the installed cable reference so compatibility can be checked before ordering.
