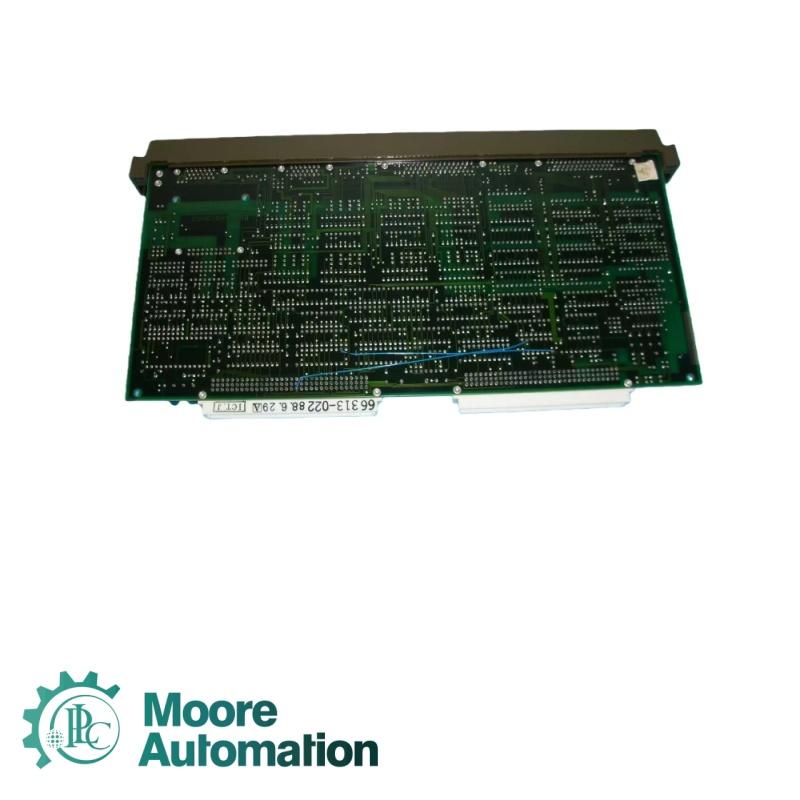

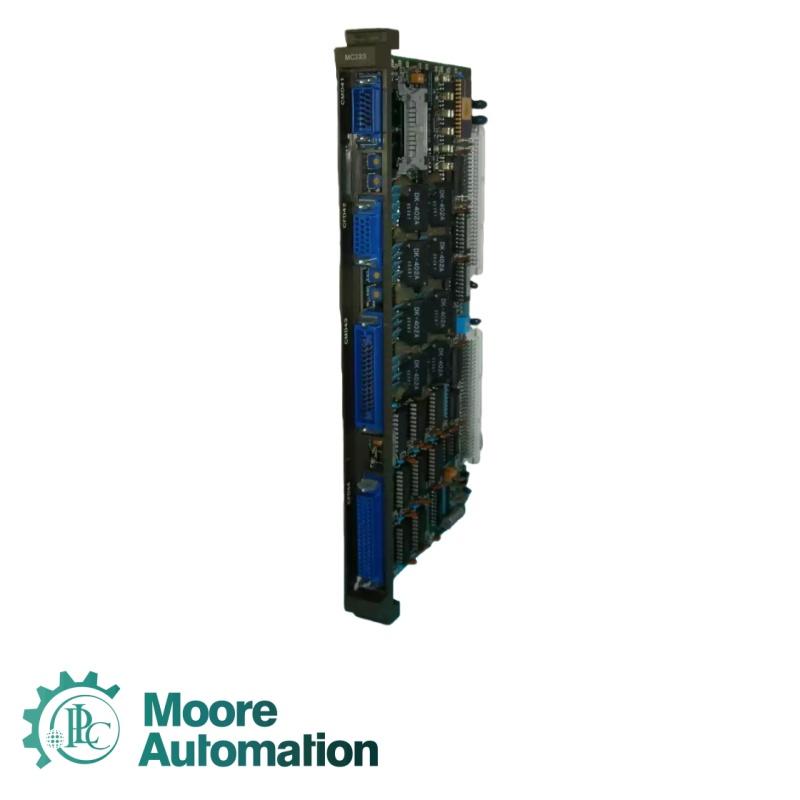

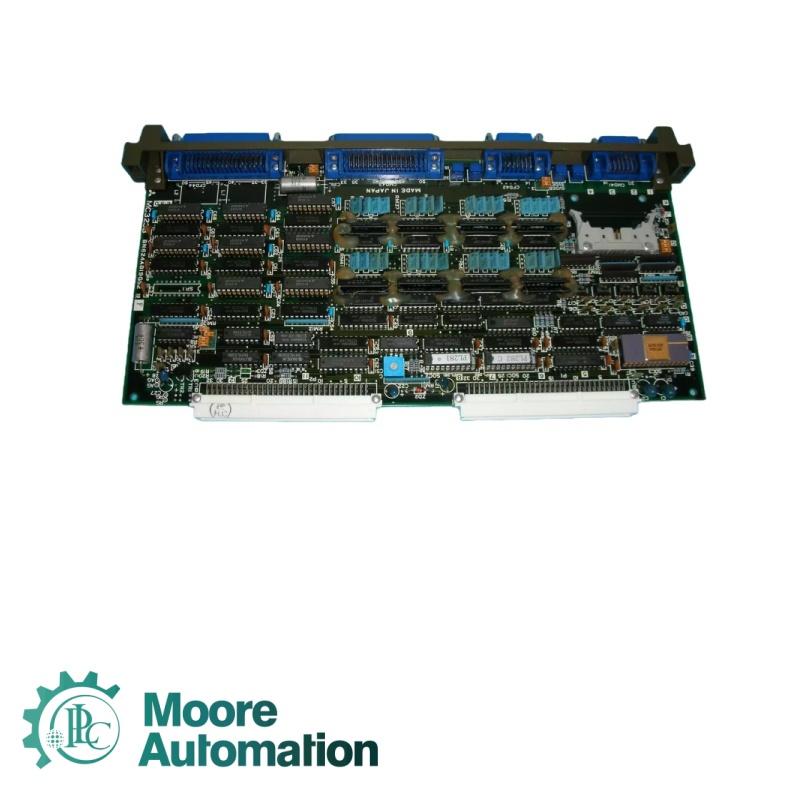

Mitsubishi MC323 / MC323B BN624A819G52 Module

Manufacturer：Mitsubishi

Country of Origin:Japan

Shipping from:Xiamen, Fujian

Part number： MC323 / MC323B BN624A819G52

Part Type:New

Quality: 100% original and 100% brand

100% brand new

1-year coverage

Sales manager:

John Yang

WhatsApp:

+86 18150117685

Email:

sales3@askplc.com

Operating Voltage (Core Logic): DC 3.3V ±3% (rated), maximum ripple ≤ 30mV p-p
Operating Voltage (I/O Circuit): DC 24V ±10% (rated), transient range 18–32V DC
Operating Voltage (Communication Port): DC 5V ±5% (isolated from core logic)
Operating Current (Core Logic): 2.2A (continuous, 25°C), peak 3.0A (20ms duration)
Operating Current (I/O Circuit): 1.0A (continuous), peak 1.8A (50ms duration)
Standby Power Consumption: ≤ 15W (no load, 25°C ambient)
I/O Interface Configuration:
Digital Inputs: 16 channels (PNP/NPN configurable, DC 24V, 0.2A max per channel, optical isolation)
Digital Outputs: 8 channels (relay output: 2A/250V AC, 2A/30V DC; transistor output: 1A/24V DC, short-circuit protected)
Analog Inputs: 4 channels (0–20mA/4–20mA selectable, 16-bit ADC resolution, input impedance ≤ 250Ω)
Analog Outputs: 2 channels (4–20mA, 16-bit DAC resolution, load impedance 250–1000Ω)
Communication Interfaces:
1×EtherNet/IP (10/100Mbps, RJ45 port, support for real-time industrial communication)
1×RS-485 (Modbus RTU/ASCII, baud rate 9600–115200 bps configurable)
1×PROFIBUS-DP (slave mode, baud rate 9.6kbps–12Mbps)
Signal Response Performance:
Digital Input Response Time: ≤ 1μs (high-speed mode), configurable filter 1μs–500μs
Analog Signal Conversion Time: ≤ 5μs (per channel, simultaneous sampling)
Communication Latency: ≤ 2ms (EtherNet/IP real-time mode)
Operating Temperature Range: 0°C to +60°C (no derating); +60°C to +65°C (15% performance derating)
Storage Temperature Range: -25°C to +80°C (relative humidity 5%–95%, non-condensing, no icing)
Relative Humidity: 5%–95% (operating/storage), non-condensing (dew point ≥ 2°C below ambient)
Isolation Specifications:
Core Logic ↔ I/O Circuit: 3000V AC (1 minute, dielectric strength)
Communication Ports ↔ Core Logic: 2000V AC (1 minute, dielectric strength)
Analog Channels ↔ Digital Channels: 1500V AC (1 minute, dielectric strength)
Protection Class: IP20 (module-level protection, for enclosed cabinet installation only)

✦100% Brand New – Sealed in original factory packaging.

✦Warranty: 12 months for all products.

✦Packaging: Original cartons included.

✦Delivery: Typically shipped within 3 days after payment.
