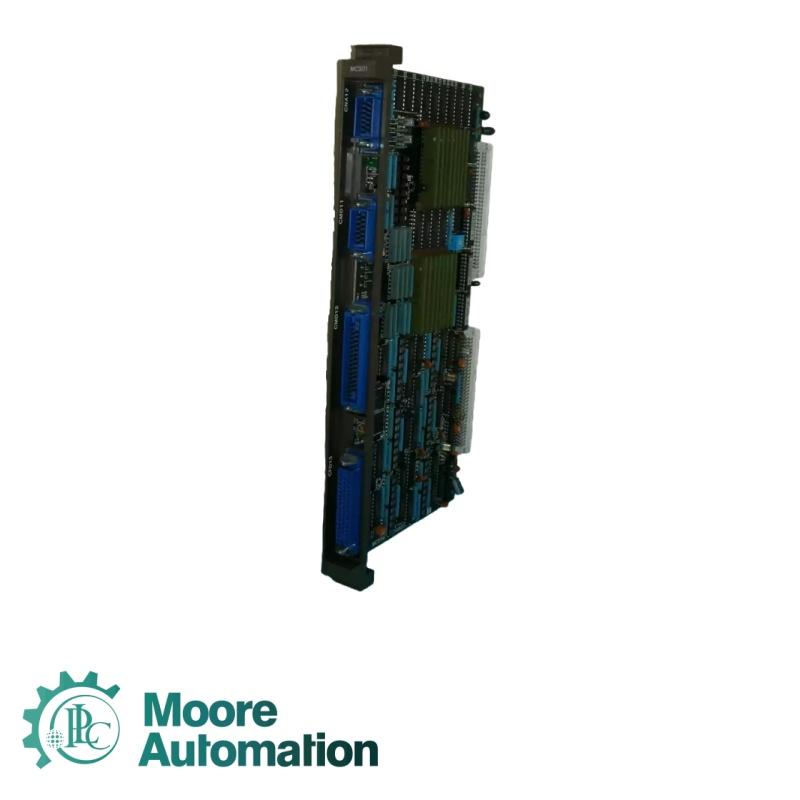

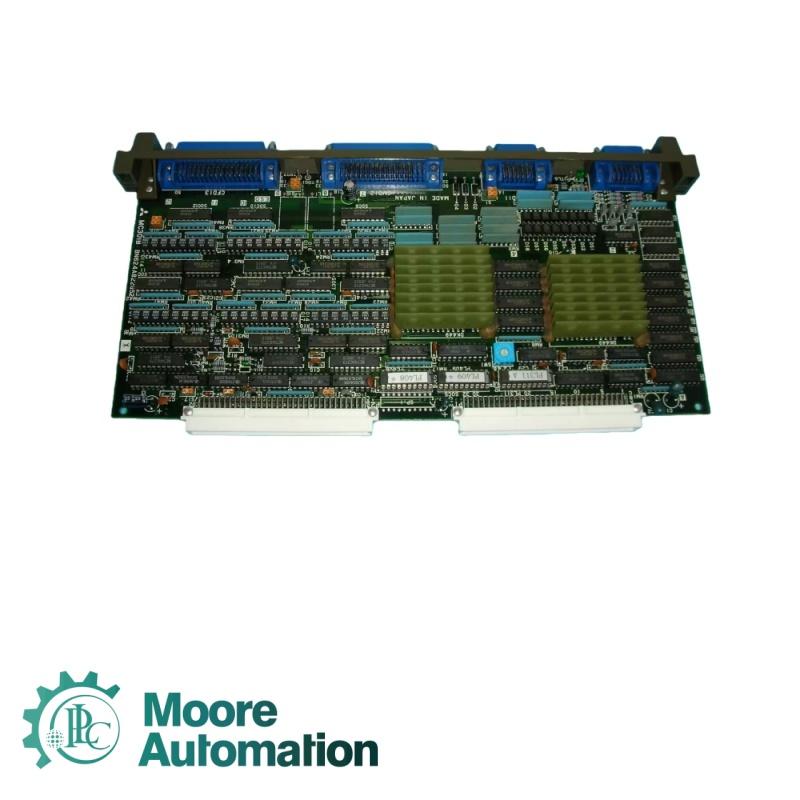

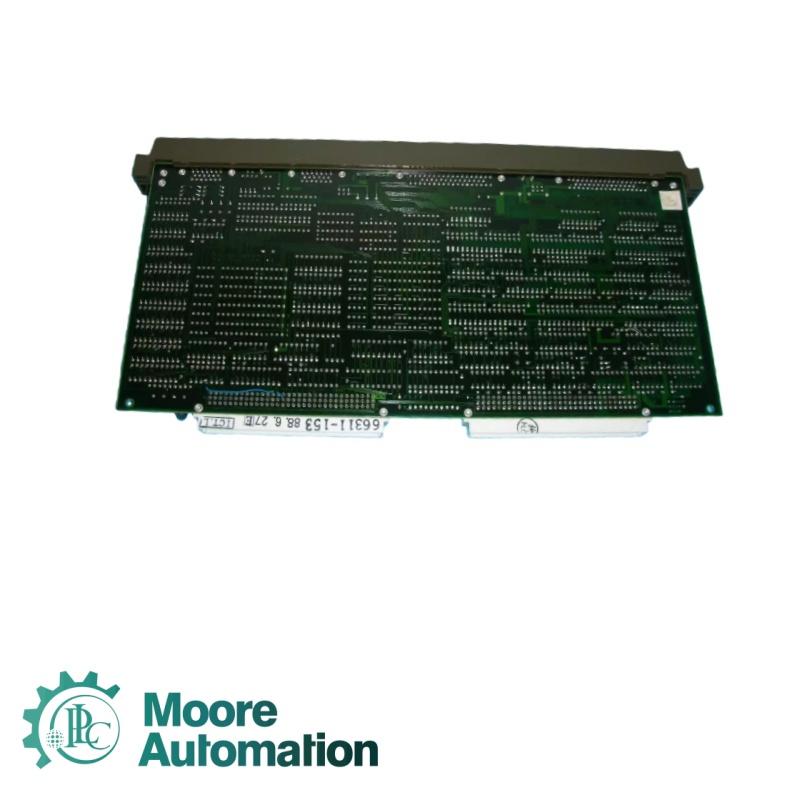

Mitsubishi MC301 / MC301B BN624A822G52 Circuit Board

Manufacturer：Mitsubishi

Country of Origin:Japan

Shipping from:Xiamen, Fujian

Part number：MC301 / MC301B BN624A822G52

Part Type:New

Quality: 100% original and 100% brand

100% brand new

1-year coverage

Sales manager:

John Yang

WhatsApp:

+86 18150117685

Email:

sales3@askplc.com

Operating Voltage (Logic Core): DC 5V ±5% (rated), maximum ripple ≤ 50mV p-p
Operating Voltage (I/O Interface): DC 24V ±10% (rated), allowable transient range 18–30V DC
Operating Current (Logic Core): 1.8A (continuous, 25°C ambient), peak 2.5A (10ms duration)
Operating Current (I/O Interface): 0.6A (continuous), peak 1.0A (50ms duration)
Standby Power Consumption: ≤ 12W (no load, 25°C ambient temperature)
Interface Configuration:
Digital Inputs: 8 channels (NPN type, DC 24V, 0.1A max per channel, isolation voltage 1500V AC)
Digital Outputs: 4 channels (transistor sinking output, DC 24V/0.5A max per channel, short-circuit protected)
Analog Inputs: 2 channels (0–10V DC, 12-bit ADC resolution, input impedance ≥ 100kΩ)
Analog Outputs: 1 channel (0–10V DC, 12-bit DAC resolution, output load ≥ 2kΩ)
Communication Port: 1×RS-485 (Modbus RTU protocol, baud rate 9600/19200/38400 bps configurable)
Signal Response Performance:
Digital Input Response Time: ≤ 2μs (typical), configurable filter 1μs–100μs
Analog Signal Conversion Time: ≤ 10μs (per channel, sequential sampling)
Operating Temperature Range: 0°C to +55°C (no derating, non-condensing); +55°C to +60°C (10% performance derating)
Storage Temperature Range: -20°C to +70°C (relative humidity 5%–95%, non-condensing, no icing)
Relative Humidity: 5%–95% (operating/storage), non-condensing (dew point ≥ 3°C below ambient)
Isolation Specifications:
Logic Core ↔ I/O Interface: 2500V AC (1 minute, dielectric strength)
Communication Port ↔ Logic Core: 1500V AC (1 minute, dielectric strength)
Protection Class: IP20 (board-level protection, intended for enclosed cabinet installation only)

✦100% Brand New – Sealed in original factory packaging.

✦Warranty: 12 months for all products.

✦Packaging: Original cartons included.

✦Delivery: Typically shipped within 3 days after payment.
