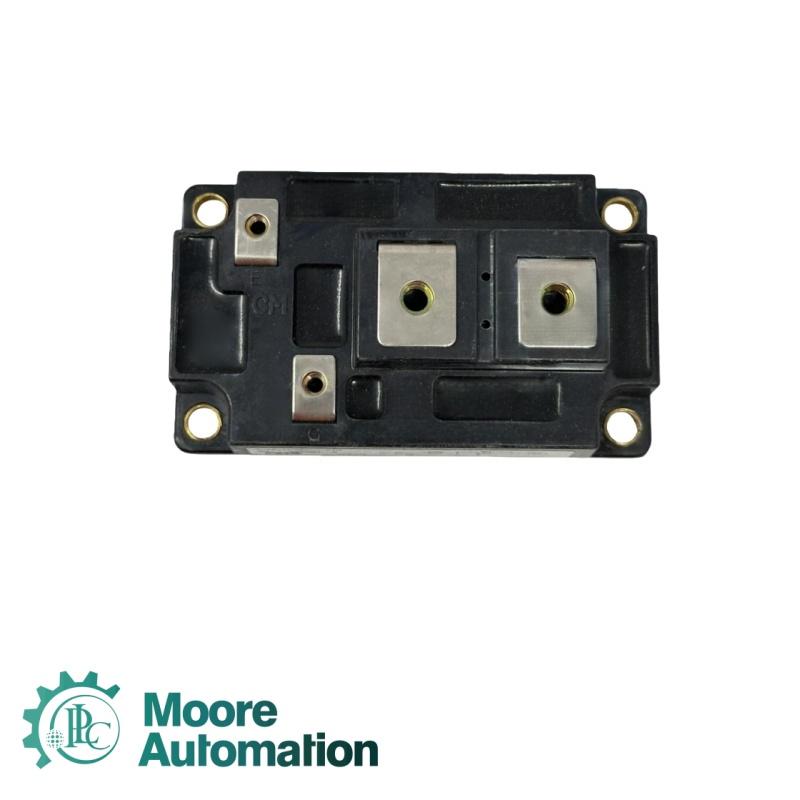

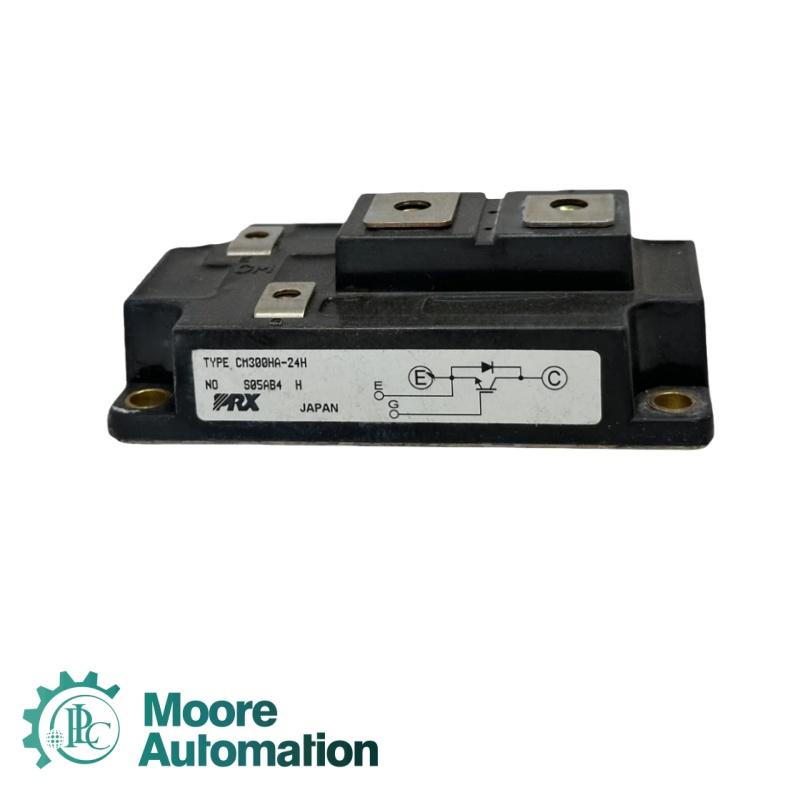

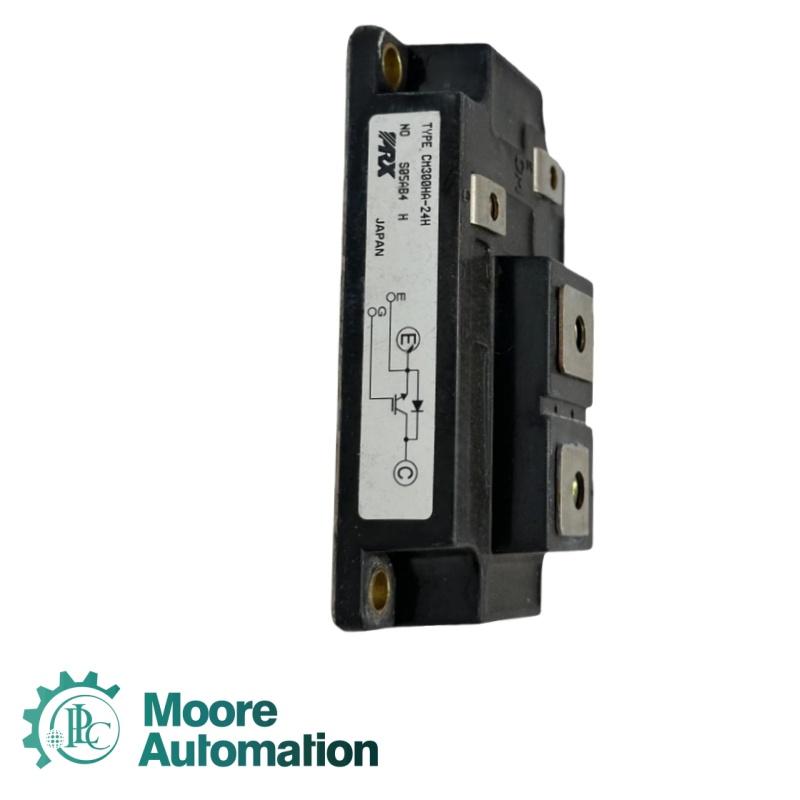

Mitsubishi CM300HA-24H Power Module

Product Highlights

Manufacturer:Mitsubishi

Part Number: CM300HA-24H

Country of Origin:Japan

About shipment:DHL, UPS, Fedex, and TNT

Condition:Brand new

100% brand new

1-year coverage

Sales manager:

John Yang

WhatsApp:

+86 18150117685

Email:

sales3@askplc.com

Item Description

Rated Voltage (V_CES): 1200V
Rated Collector Current (I_C, T_c=25°C): 300A
Peak Collector Current (I_CM, T_j≤150°C): 600A (pulse width and repetition frequency must ensure junction temperature does not exceed the rated value)
Emitter Current (I_E, T_c=25°C): 300A
Peak Emitter Current (I_EM): 600A (pulse width and repetition frequency must ensure junction temperature does not exceed the rated value)
Maximum Collector Power Dissipation (P_c, T_c=25°C): 2100W
Junction Temperature Range (T_j): -40°C ~ 150°C
Storage Temperature Range (T_stg): -40°C ~ 125°C
Gate-Emitter Voltage (V_GES, C-E short): ±20V
Isolation Voltage (V_iso, main terminal to base, AC 1 min): 2500Vrms
Collector Cutoff Current (I_CES, V_CE=V_CES, V_GE=0V, T_j=25°C): max 1.0mA
Gate Leakage Current (I_GES, V_GE=V_GES, V_CE=0V, T_j=25°C): max 0.5μA
Gate-Emitter Threshold Voltage (V_GE(th), I_C=30mA, V_CE=10V, T_j=25°C): 4.5V ~ 7.5V (typical 6.0V)
Collector-Emitter Saturation Voltage (V_CE(sat), I_C=300A, V_GE=15V, T_j=25°C): max 3.4V (typical 2.5V)
Collector-Emitter Saturation Voltage (V_CE(sat), I_C=300A, V_GE=15V, T_j=150°C): typical 2.25V
Total Gate Charge (Q_G, V_CC=600V, I_C=300A, V_GE=15V, T_j=25°C): typical 1500nC
Emitter-Collector Voltage (V_EC, I_E=300A, V_GE=0V, T_j=25°C): max 3.4V
Input Capacitance (C_ies, V_GE=0V, V_CE=10V, T_j=25°C): max 60nF
Output Capacitance (C_oes, V_GE=0V, V_CE=10V, T_j=25°C): max 21nF
Reverse Transfer Capacitance (C_res, V_GE=0V, V_CE=10V, T_j=25°C): max 12nF
Turn-On Delay Time (t_d(on), V_CC=600V, I_C=300A, V_GE1=V_GE2=15V, R_G=1.0Ω, T_j=25°C): max 250ns
Rise Time (t_r, V_CC=600V, I_C=300A, V_GE1=V_GE2=15V, R_G=1.0Ω, T_j=25°C): max 500ns
Turn-Off Delay Time (t_d(off), V_CC=600V, I_C=300A, V_GE1=V_GE2=15V, R_G=1.0Ω, T_j=25°C): max 350ns
Fall Time (t_f, V_CC=600V, I_C=300A, V_GE1=V_GE2=15V, R_G=1.0Ω, T_j=25°C): max 350ns
Diode Reverse Recovery Time (t_rr, I_E=300A, di_E/dt=-600A/μs, T_j=25°C): max 250ns
Diode Reverse Recovery Charge (Q_rr, I_E=300A, di_E/dt=-600A/μs, T_j=25°C): typical 2.23μC
IGBT Junction-to-Case Thermal Resistance (R_th(j-c), T_j=25°C): max 0.06°C/W
Freewheeling Diode (FWDi) Junction-to-Case Thermal Resistance (R_th(j-c), T_j=25°C): max 0.12°C/W
Contact Thermal Resistance (R_th(c-f), with thermal grease, T_j=25°C): max 0.04°C/W
Weight: 400g
Mounting Torque (M6 Main Terminals): 1.96~2.94 N·m
Mounting Torque (M6 Mounting Holes): 1.96~2.94 N·m
Mounting Torque (M4 Terminals): 0.98~1.47 N·m
Dimensions A (Length): 107.0 mm (4.21 in)
Dimensions B (Width): 93.0±0.25 mm (3.661±0.01 in)
Dimensions C (Height): 62.0 mm (2.44 in)
Dimensions D: 48.0±0.25 mm (1.89±0.01 in)
Dimensions E (Max): 36.0 mm (1.42 in)
Dimensions F: 34.0 mm (1.34 in)
Dimensions G: 30.0 mm (1.18 in)
Dimensions H: 29.0 mm (1.14 in)
Dimensions J (Max): 25.0 mm (0.98 in)
Dimensions K: 24.0 mm (0.94 in)
Dimensions L: 23.5 mm (0.93 in)
Dimensions M: 21.0 mm (0.83 in)
Dimensions N: 17.5 mm (0.69 in)
Dimensions P: 16.0 mm (0.63 in)
Dimensions Q: 13.0 mm (0.51 in)
Dimensions R: 11.0 mm (0.43 in)
Dimensions S: 9.0 mm (0.35 in)
Dimensions T: 7.0 mm (0.28 in)
Dimensions U: 3.0 mm (0.12 in)
Dimensions V (Diameter): 6.5 mm (0.26 in)
Thread W: M6 (metric)
Thread X: M4 (metric)
