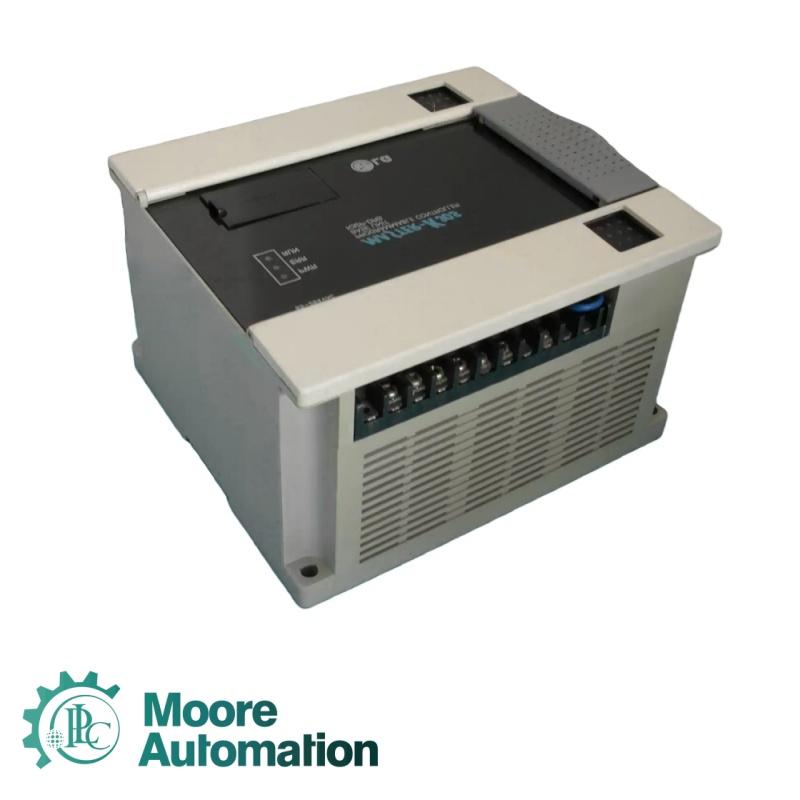

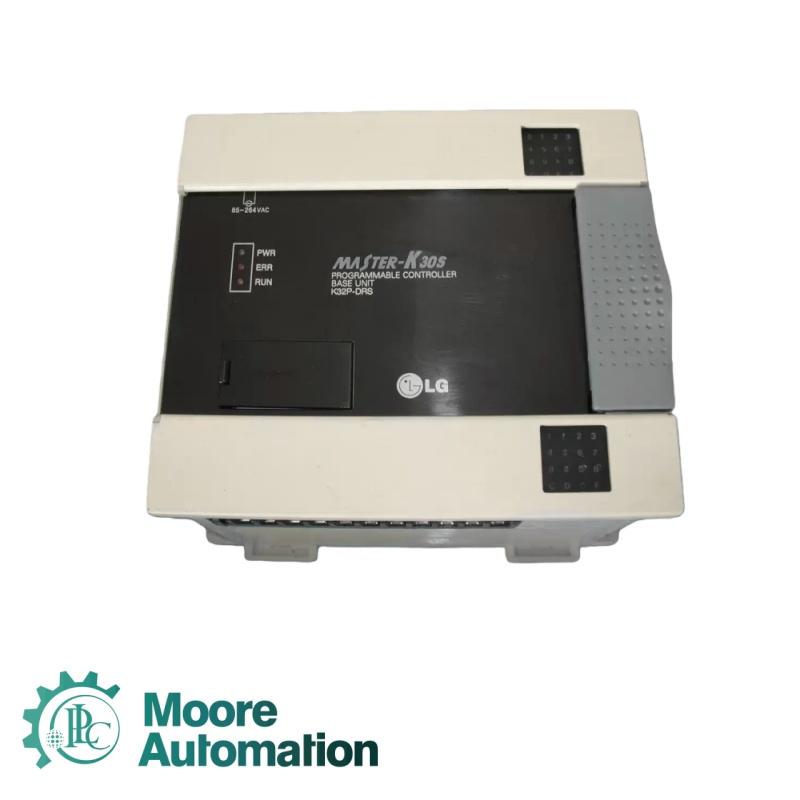

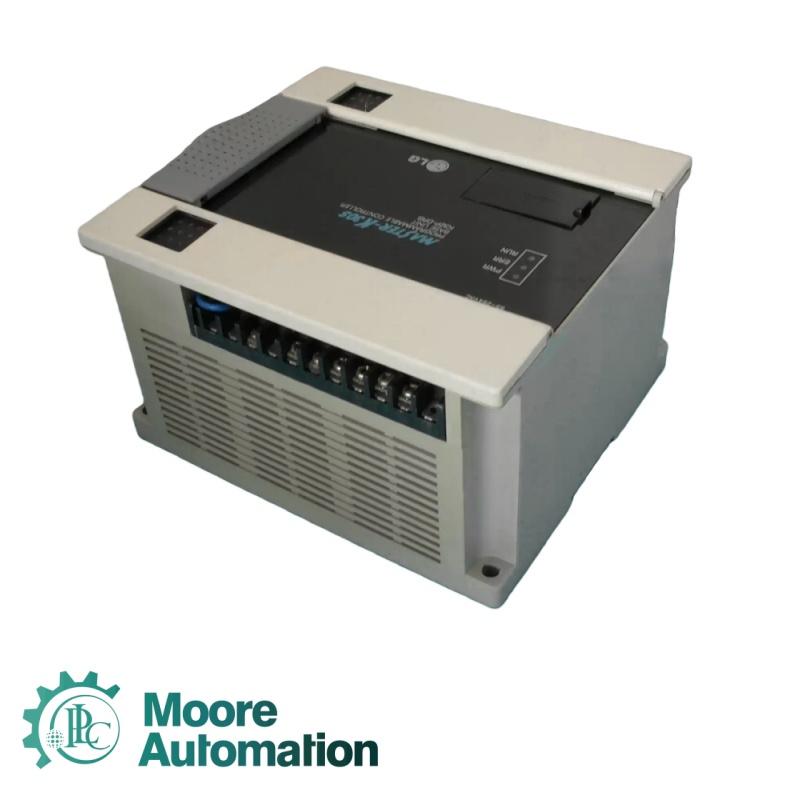

MASTER-K K32P-DRS Programmable Controller

MASTER-K K32P-DRS Programmable Controller

Digital Inputs: 16–32 (DC, configurable)
Digital Outputs: 16 (Relay / Transistor configurable)
Input Voltage: 24 VDC
Output Voltage: 24 VDC for transistor outputs / Relay outputs up to 250 VAC / 30 VDC
Analog Inputs: 2–4 channels, 0–10 V / 4–20 mA
Analog Outputs: 2 channels, 0–10 V / 4–20 mA
I/O Expansion Capability: Supports up to 6 expansion modules for additional I/O
Output Type: Relay and transistor outputs selectable
Common Terminal: Isolated common for safe operation
Performance Parameters
Program Memory Capacity: 32K steps
Data Memory: 8K words
Scan Time: 0.15 ms per step (typical)
Instruction Set: Logic, arithmetic, comparison, timers, counters, and data transfer instructions
Timer Resolution: 1 ms
Counter Resolution: 16-bit / 32-bit
Communication Capability: Built-in serial port for host communication
Real-Time Clock: Built-in for timestamp and scheduling functions
Communication Interfaces
Serial Ports: RS-232 / RS-485
Communication Protocols: MASTER-K proprietary protocol, Modbus RTU
Network Capability: Multi-drop configuration up to 32 nodes
PC Programming Software: MASTER-K PC Suite compatible
Diagnostics: Status reporting, error detection, and alarm outputs
Operating Temperature: 0°C … +55°C
Storage Temperature: –20°C … +75°C
Relative Humidity: 5% … 95% non-condensing
Vibration Resistance: 1 g, 10–55 Hz
