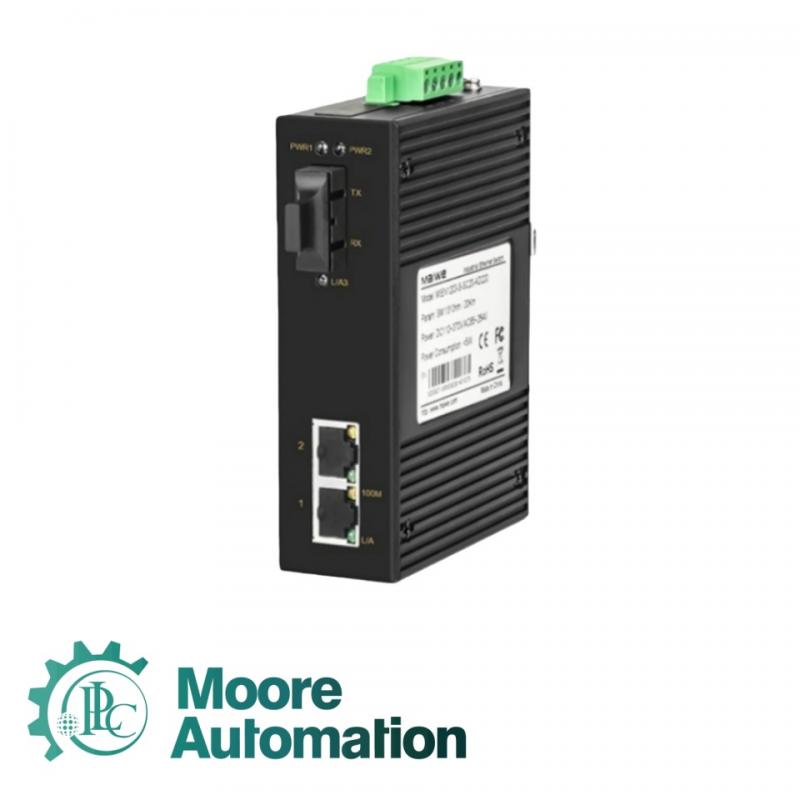

MAIWE MIEN1203-M-SC02 industrial Ethernet switches

Product Specifications

Product Name:MIEN1203-M-SC02

Brand Name:MAIWE

Product Origin:Shanghai

Order(MOQ):1

Payment: T/T

Shipping Port: Xia men

Lead Time：in stock

Delivery time: 1-3 days

Contact John Yang: Sales Manager

Product Information

MIEN1203 series unmanaged industrial Ethernet switches are designed and developed for industrial high-speedcommunication network applications. It provides a high-end industrial Ethernet communication solutionfor flexibleindustrial applications, making industrial communications smoother, more reliable and faster, satisfyingcustomers to innovate for value-added applications.

Parameter Information

       MAC Table: 1 K
Switch Bandwidth: 1 Gbps
Transmission Rate: 125 Mbps
Switching Delay: < 5 μs
Port Numbers: 3
Interface Form: 1×9 fixed fiber port (single/multi-mode optional, SC/FC/ST interface optional) or RJ45 100M Tx port
Interface Rate: 100Base-FX (fiber port), 10/100M adaptive Tx port
Power Terminal: 5.08 mm pitch plug-in terminal
Twisted Pair Communication Distance: 100 m (standard CAT5/CAT5e cable)
Multi-mode Fiber Communication Distance: 1310 nm, 2 km
Single-mode Fiber Communication Distance: 1310 nm (20/40 km), 1550 nm (60/80 km)
Input Voltage: DC 9–60 V (non-polarity input protection), AC 220 V (AC 85–264 V or DC 110–370 V)
Power Consumption: 1.5 W @ 24 V (full load)
Overload Protection: Supported
Reverse Protection: Supported
Power Indicator: Supported
Operating Temperature: -40°C ~ +85°C
Storage Temperature: -40°C ~ +85°C
Ambient Humidity: 5% ~ 95% (non-condensing)
Shell Material: Aluminum alloy
Protection Level: IP40
Installation: 35 mm DIN-rail mounted installation
Dimensions: 118 mm × 88 mm × 35 mm

FAQ

Packaging & Shipping

▶ We will ship the items within 3 working days after the payment is reached.

▶ All the goods will be tested before shipment.

▶Packing in professional anti-static bag.
