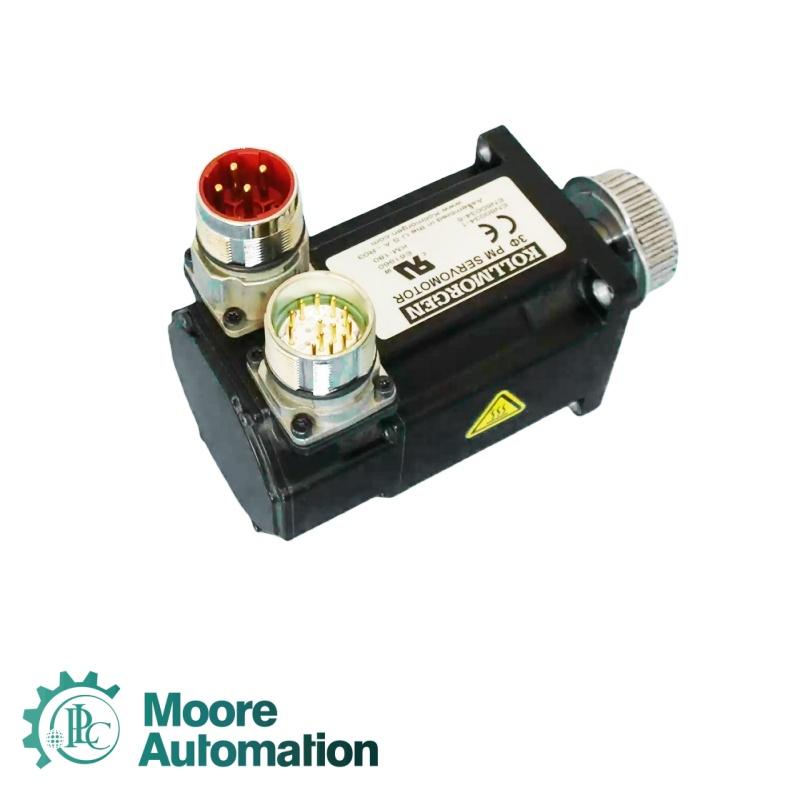

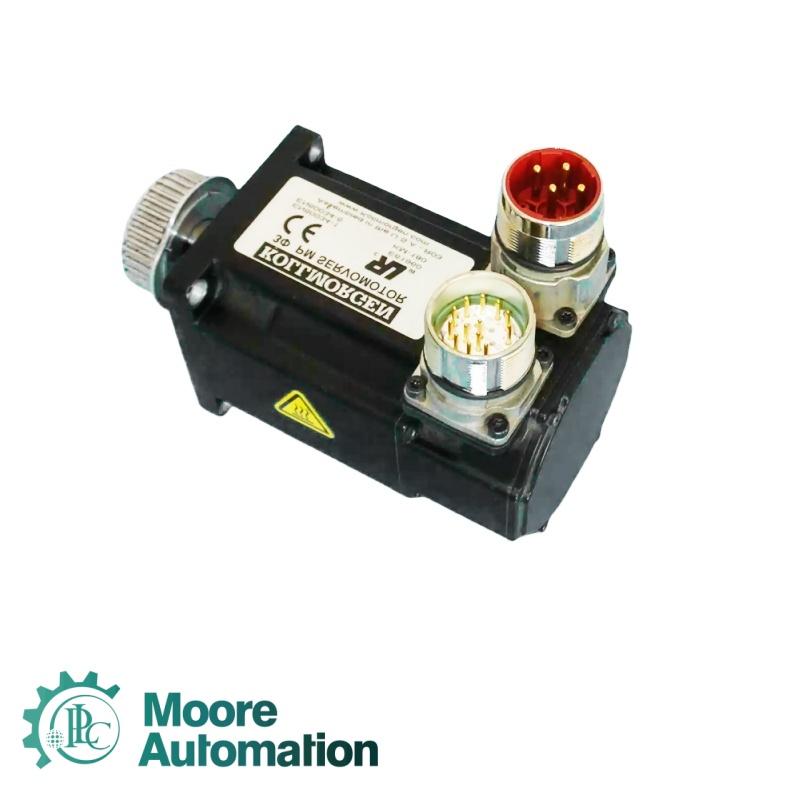

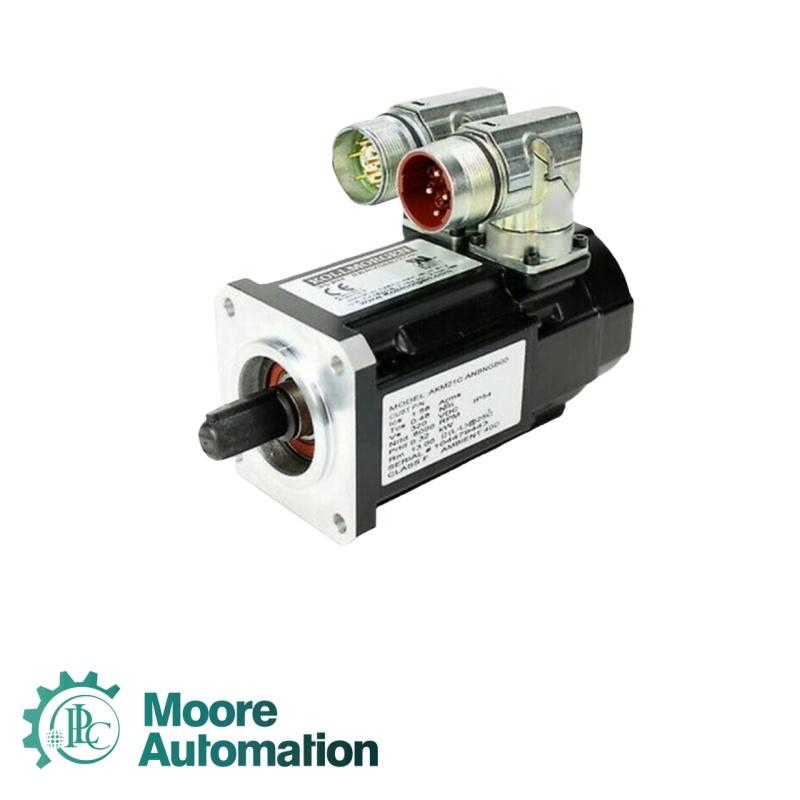

Kollmorgen  AKM21G-CKGN2-00   Servo Motor

Rated Power: 0.75 kW
Rated Torque: 2.39 Nm
Peak Torque: 7.17 Nm (short-term)
Rated Speed: 3000 rpm
Maximum Speed: 6000 rpm
Voltage Rating: 230 V AC
Current Rating: 4.2 A continuous
Motor Type: Permanent magnet synchronous
Feedback Type: Resolver (standard), optional incremental encoder
Rotor Inertia: 0.00028 kg·m²
Efficiency: ≥ 92% at rated load
Torque Constant: 0.76 Nm/A
Operating Temperature Range: –20°C to +50°C
Storage Temperature: –40°C to +70°C
Ambient Humidity: 5–95% RH (non-condensing)
Cooling Method: Natural convection, optional forced-air available
Mounting Style: Flange-mounted (standard NEMA-compatible dimensions)
Shaft Type: Keyed shaft with precision balancing
Protection Class: IP65 (optional), IP44 standard
Insulation Class: F (155°C)
Vibration Resistance: Industrial-grade, 10–55 Hz
Mechanical Connection: Standard servo mounting with threaded flange holes
