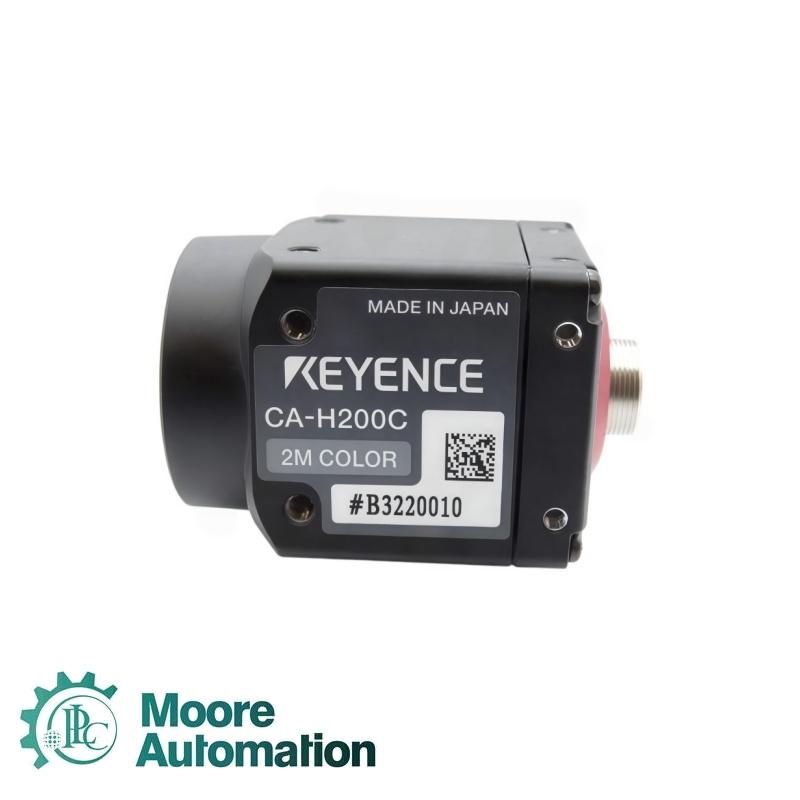

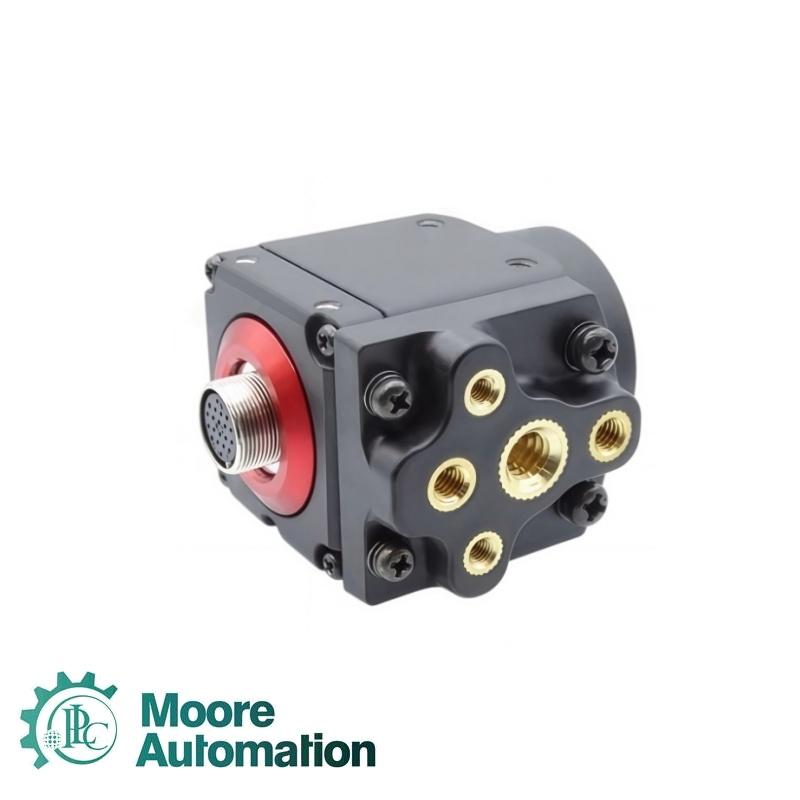

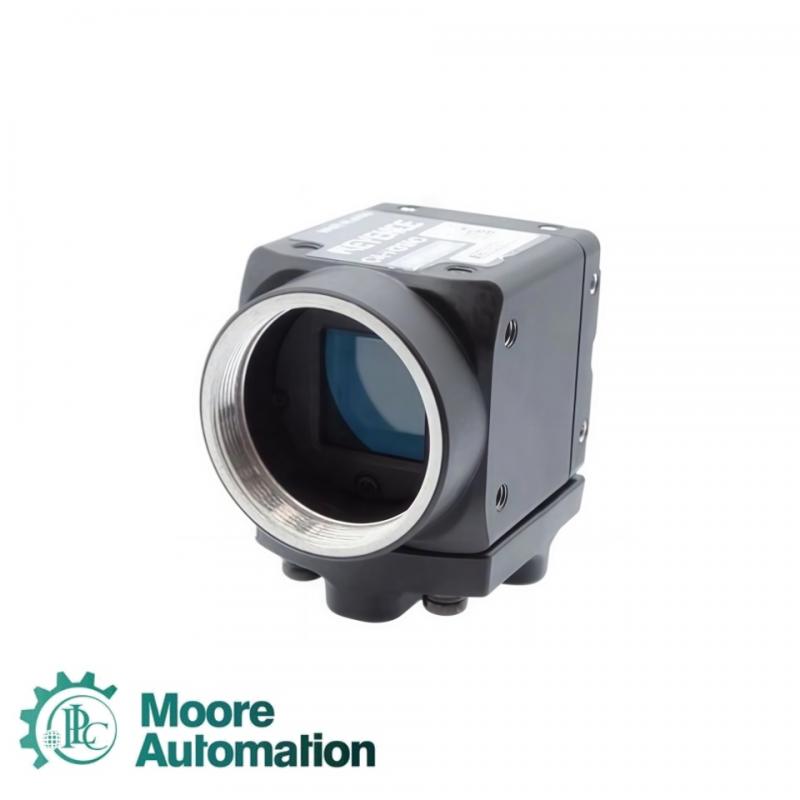

 KEYENCE CA-H200C 2 Megapixel High-Speed Color Camera
CA-H200C CA-H200C CA-H200C

KEYENCE CA-H200C 2 Megapixel High-Speed Color Camera

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The KEYENCE CA-H200C is a 16×-speed, environment-resistant 2 megapixel color camera. It uses a color CMOS sensor with progressive scanning, supports 1600 × 1200 and 1024 × 960 image formats, and connects through a C-mount lens interface.
Product typeHigh-speed environment-resistant color camera
Image sensorColor CMOS
Readout modes7× and 16× high-speed
Unit cell size4.5 μm × 4.5 μm
Valid pixels, 2 MP mode1600 × 1200
Valid pixels, 1 MP mode1024 × 960
Equivalent image size1/1.8 inch
Scanning methodProgressive scan
Transfer time at 7×28.9 ms
Transfer time at 16×11.8 ms
Pixel transfer frequency at 7×86 MHz (43 MHz × 2)
Pixel transfer frequency at 16×198 MHz
Shutter time0.05 to 9,000 ms
Lens mountC-mount
Data transferDigital serial
Enclosure ratingIP64 with specified lens and environment-resistant cable
Operating temperature0 to +45 °C
Operating humidity85% RH or less, no condensation
WeightApprox. 75 g, excluding lens
ModelCA-H200C
Application Industry
01
Color defect inspectionCaptures color images for detecting stains, variation and surface defects.
02
Assembly presence checksVerifies parts and features at production-line speed.
03
Position and dimension inspectionProvides progressive-scan images for location and measurement tools.
04
Label and code inspectionCaptures product markings and codes with appropriate optics and lighting.
FAQ
Which controller should be used with KEYENCE CA-H200C?
Use a compatible vision controller that supports the high-speed camera interface and the required pixel mode.
What image sizes are available from KEYENCE CA-H200C?
The camera provides 1600 × 1200 pixels in 2-megapixel mode and 1024 × 960 pixels in 1-megapixel mode.
What lens interface does KEYENCE CA-H200C use?
It uses a C-mount. Select a lens that matches the sensor size, field of view, working distance and required resolution.
How is IP64 achieved when installing KEYENCE CA-H200C?
Use the specified lens and environment-resistant camera cable, and complete all connections exactly as described in the official installation instructions.
What exposure range is available on KEYENCE CA-H200C?
Electronic shutter time is adjustable from 0.05 to 9,000 ms. Set lighting and exposure to avoid saturation and motion blur.
