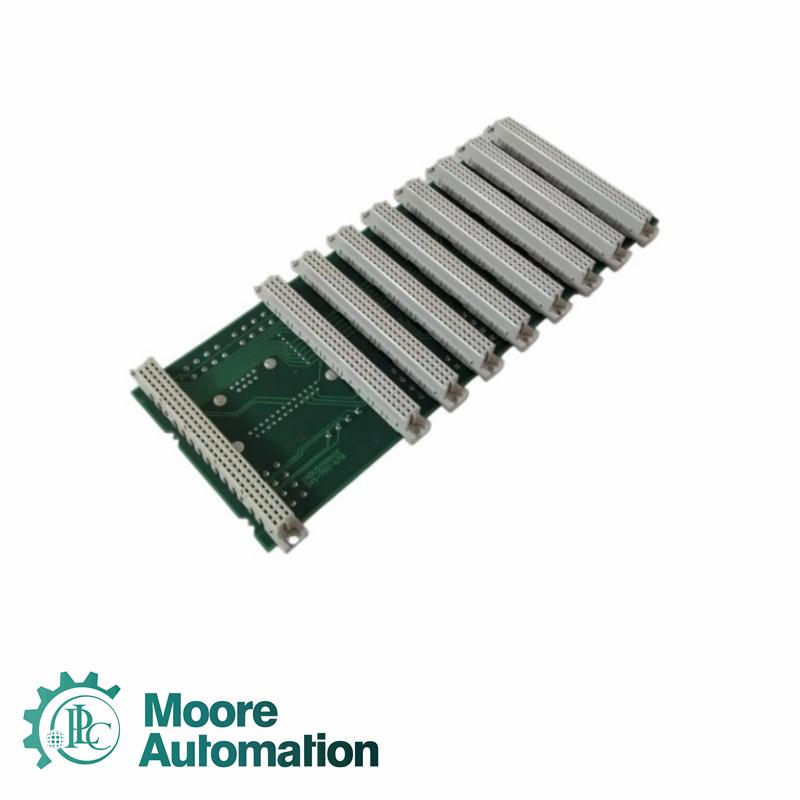

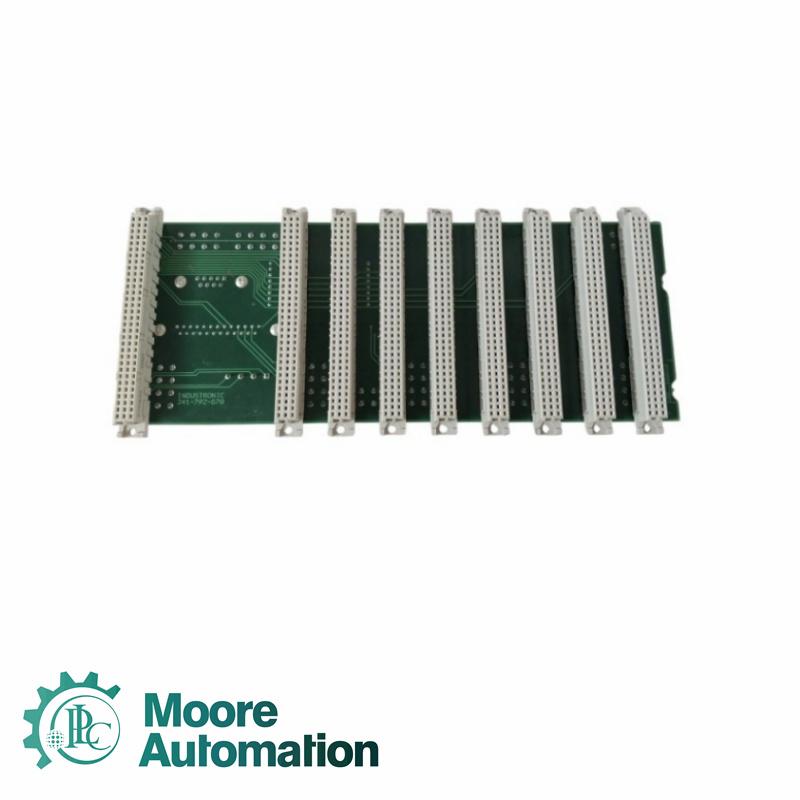

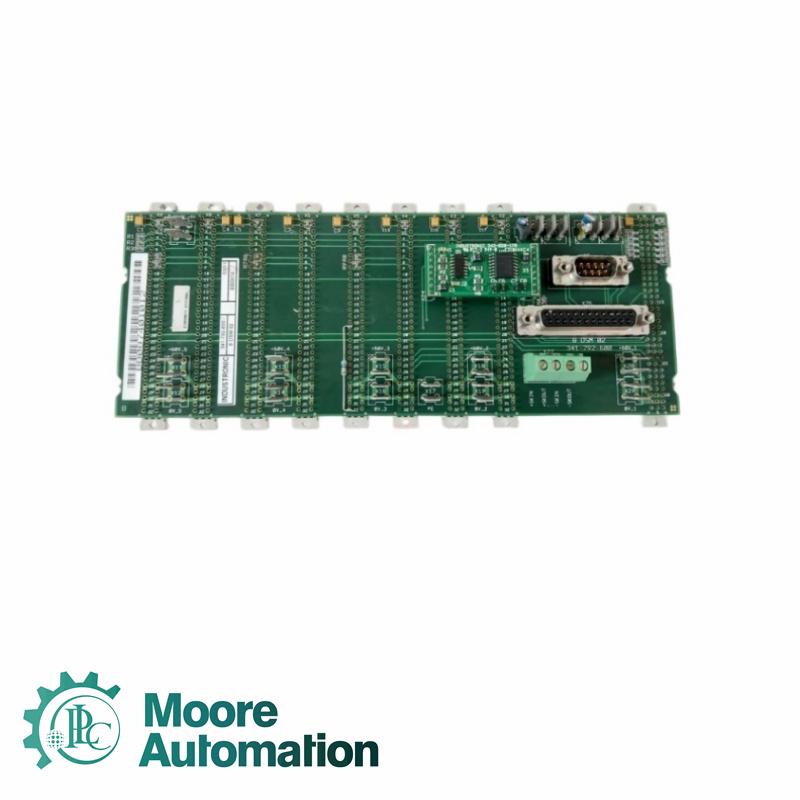

INDUSTRONIC 341-702-100 1DXC 03 Exchange Control Board

The exchange control board 341-702-100 1DXC 03 is the central unit of the INDUSTRONIC communication and public address system with digital interfaces. It is used for carrying out the exchange functions according to the stored connection program as well as for the data exchange with the connected digital/analogue line cards and intercom stations. The high-capacity processor unit enables the interconnection of up to 250 INDUSTRONIC systems. Systems and IP based intercom stations can be coupled via the integrated Ethernet interfaces.

Height x Depth: 233 mm x 160 mm (9 1/4“ x 6 1/4“)
Front Plate Dimensions: 6 RU, 12 HP
Weight: ca. 1 kg (approx. 2 1/4 lb)
Interfaces: 2x Ethernet 10/100 Mbit/s, 2x USB 2.0, 1x RS232, 1x RS485, 1x Extension port RJ45, 4x Analogue control line input
Operating System: LINUX
Processor: 1.6 GHz embedded processor
Main Memory: 1 GB RAM
Flash Memory: 4 GB compact flash card
Current Consumption: max. 2 A at 5 V
Ambient Temperature During Operation: 0 °C to +50 °C (32 °F to 122 °F)
Relative Humidity: Max. 95% (non-condensing)
EMC Standards: IEC/EN 61000-6-2, IEC/EN 61000-6-4
Temperature Range During Operation: 0 °C to +50 °C (32 °F to 122 °F)
Relative Humidity (non-condensing): Max. 95%
EMC Standards: IEC/EN 61000-6-2, IEC/EN 61000-6-4

Connection of up to 192 digital or analog intercom stations
Addressing of up to 65,000 stations,loud speakers,etc.
Connection of IP-based intercom stations
IP-based system coupling via integrated
Ethernet interfaces
Switching of up to 120 simultaneous communication links
LEDs to indicate operation,data transmission and errors
Improved redundancy mechanism
Storing of configuration data on compact flash card
Loading and reading out of configuration data via Ethernet
Extensive diagnostic functions
Monitoring and evaluation of up to five discrete indication signals
Watchdog monitoring and reset key
Output with break contact to indicate failures
Transmission of digitized AF signals to and from the exchange control board with 2 MBit/s
Effective HDLC interfaces for the communication with the line cards
Maintenance and service via web interface
Redundancy operation with 2 control boards possible

What is the INDUSTRONIC 341-702-100 1DXC 03?
It is a Exchange Control Board.


Is this product brand new?
Yes, 341-702-100 1DXC 03 is brand new, original, unused, and factory sealed


Do you have it in stock?
Yes, right now we have 341-702-100 1DXC 03 in stock ready for shipment, we can support video inspection.
