ICS TC-505-01-6M0 I/O Companion Slot Cable

Welcome to inquiry

ICS  TC-505-01-6M0

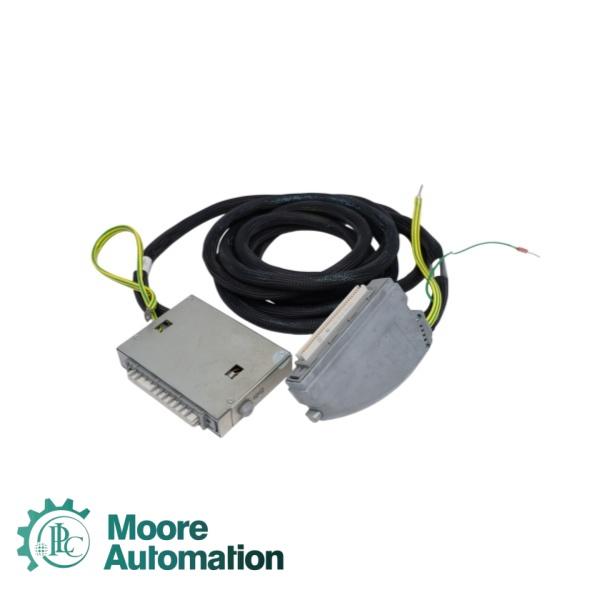

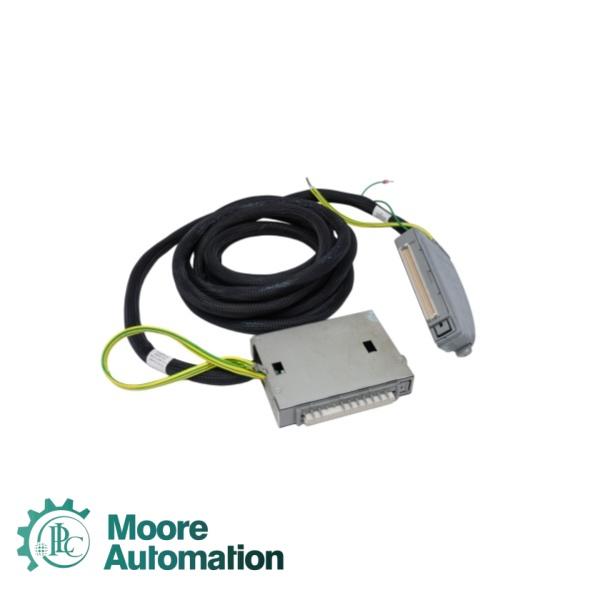

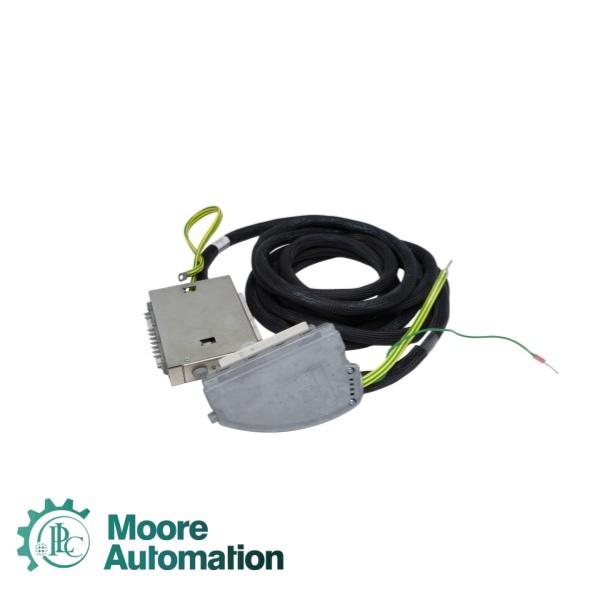

The ICS Triplex TC-505-01-6M0 is an I/O Companion Slot Cable designed specifically for the ICS Triplex Trusted™ TMR (Triple Modular Redundant) system . Manufactured by ICS Triplex, this 6.0-meter cable serves as a critical interconnect component for ensuring fail-safe communication between Trusted Controller Chassis and I/O Companion Signals or Expansion Racks . The TC-505-01-6M0 is part of the Companion Slot cable family, providing connection facilities between Trusted analog and digital I/O modules and Trusted Field Termination Assemblies (FTAs) . This cable is built to meet the rigorous safety standards required for SIL-rated applications, ensuring deterministic and redundant signal routing in safety-critical industrial environments .

Detailed Information

Part Number: TC-505-01-6M0

Product Type: I/O Companion Slot Cable / Internal 40 Channel Output to FTA Cable

Cable Length: 6.0 meters (19.7 ft)

Insulation Type: PVC (Poly-Vinyl-Chloride)

Channel Capacity: 40 channels

Maximum Working Voltage: 60 V

Maximum Current: 2 A per channel

Module Compatibility: Digital 24 V

Features

• 40-Channel Input Capacity: Provides high-density I/O connectivity with support for up to 40 channels, enabling efficient signal transmission from internal FTA to modules.

• Triple Modular Redundant (TMR) System Compatibility: Specifically designed for the ICS Triplex Trusted™ TMR architecture, providing high availability and fault tolerance.

• Smart Slot Redundancy Enablement: Supports companion slot architecture, allowing hot-swappable I/O modules to be connected to dedicated termination assemblies without system interruption.

• Robust Industrial Shielding: Engineered with high-current signal integrity and durable shielding for reliable operation in industrial environments.

• Secure Dual-Connector Design: Features two 96-way type 'C' connectors housed in a double-width hood at the chassis end for secure, stable connections.

• High Voltage and Current Ratings: Supports up to 60V working voltage and 2A per channel for demanding I/O applications.

Application

The TC-505-01-6M0 I/O Companion Slot Cable is used in high-reliability and safety-critical industries :
