ICS TC-011-02-1M5 Triplex Fan Power Cable

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
ICS
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

ICS TC-011-02-1M5

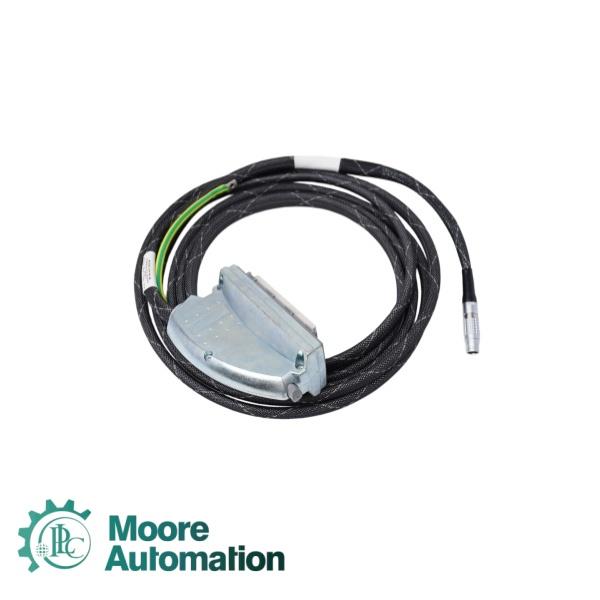

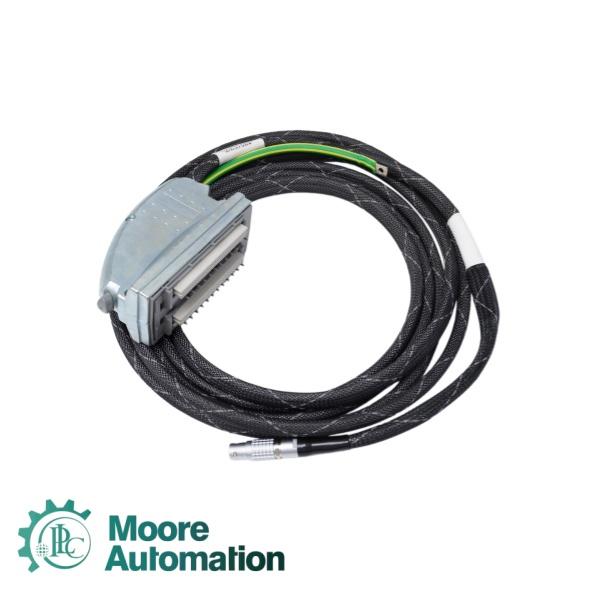

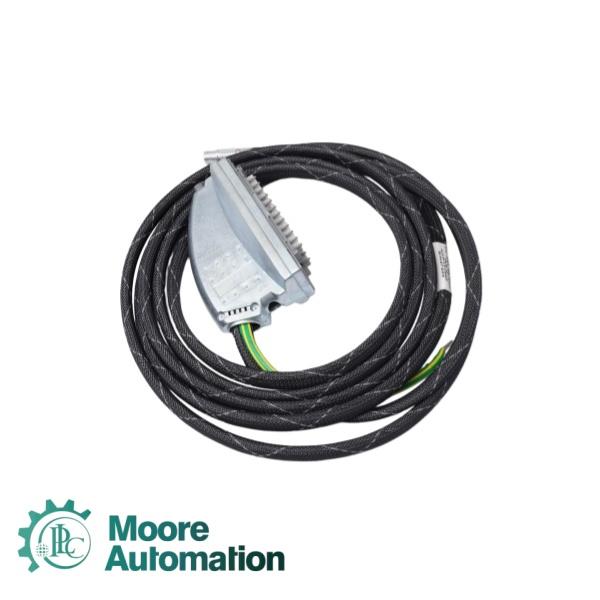

TC-011-02-1M5 is a type of Fan Power Cable manufactured by ICS Triplex (now part of Rockwell Automation's Trusted® system). This particular power cable is specifically engineered to connect a Power Distribution Unit MCB (T8292) to a Fan Assembly (T8270) within a Trusted system module rack. It is designed to provide a stable and low-noise 24 Vdc power supply to the cooling fans while simultaneously transmitting tachometer (speed) and fault signals back to the system. This cable is a critical component for maintaining the thermal management and operational integrity of the Triple Modular Redundant (TMR) system, ensuring the cabinet remains within its specified operating temperature.

Sale Manager:	Email:	Mobile(WhatsApp):
Yuki Huang	Sales6@askplc.com	+86-17359287459

Key Technical Specifications

Product Name	TC Triplex Cable
Cable Type Code	011-02 (Fan Power Cable)
Length Code	1M5
Product Type	Fan Power Cable / Fan Assembly Cable
Length	1.5 meters (approx. 4.9 feet)
Connector Type A (Rack Side)	10-way High-Density Female Connector
Connector Type B (Fan Side)	2×3 Pin Header (for T8270 Fan Assembly)
Connection Function	Power Distribution Unit MCB (T8292) ↔ Fan Assembly (T8270)
Conductor Gauge	22 AWG × 6 cores (Shielded Twisted Pair)
Rated Voltage	24 Vdc (Operating range: 18–32 V)
Rated Current	2 A per channel (Total cable capacity: 6 A)
Shielding	Braided Copper Mesh + PVC Jacket
Operating Temperature	-40°C to +85°C
Safety Integrity Level (SIL)	SIL 3 Compatible
Weight	approx. 120 g (0.26 lbs)

√100% quality assurance √Massive inventory stock √Best services, reasonable price

If you want to more details，please contact me.

Email: Sales6@askplc.com Mobile(WhatsApp): +86-17359287459

Applications

· Nuclear Power Generation

This technology due to its ability to distribute intelligence throughout the system right to the I/O modules, which reduces data traffic, speeds up response times, and enhances reliability . The system also provides embedded firmware for precision frequency-modulated control of the insertion motors, eliminating the need for separate motor control that would have added considerable programming complications .

· General Oil & Gas Processing

Across the broader oil and gas industry, ICS Triplex systems are widely deployed for emergency shutdown (ESD) and fire and gas detection . The company has over 40 years of experience supplying thousands of systems to premier companies in oil and gas, refining, and petrochemicals for these critical safety applications . The Trusted and AADvance platforms are field-proven solutions for ensuring process safety, minimizing unplanned incidents and hazards that pose risk to personnel, assets, and the environment .

FAQ

Q: How does TMR architecture prevent spurious trips?

A: TMR uses three independent processors with 2oo3 voting. If one channel fails, the other two override it, allowing continuous operation without shutting down the process.

Q: Can I replace modules while the system is running?

A: Yes, both Trusted and AADvance support hot-swapping. Use the system management software to isolate the module first, then physically replace it, and finally re-enable it.

Q: How do I connect a PC to an ICS Triplex module for troubleshooting?

A: Use a null modem cable (not a standard serial cable) to connect your computer's serial port to the module's RS-232 port. Verify that your communication software is configured to the correct COM port and baud rate settings specified in the manual .

Our Company

✅Moore specializes in a wide range of industrial automation components, including:

✅Controllers: Programmable Logic Controllers (PLCs), Distributed Control Systems (DCS), and other control devices.

✅Sensors: Temperature sensors, pressure sensors, flow sensors, and more.

✅Actuators: Motors, valves, and other devices used to control physical processes.

✅Human-Machine Interfaces (HMIs): Touchscreens, operator panels, and other devices for human-machine interaction.

✅Fieldbus Components: Communication modules and devices for various fieldbus networks.
