 Horner APG HE693SNP232A SNP to RS-232 Adapter
HE693SNP232A HE693SNP232A HE693SNP232A

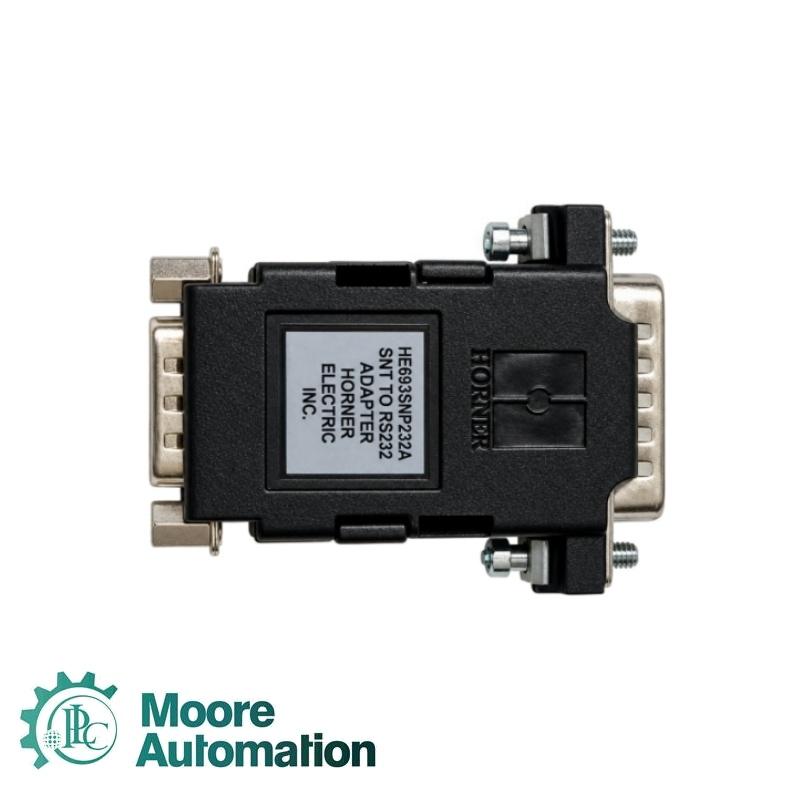

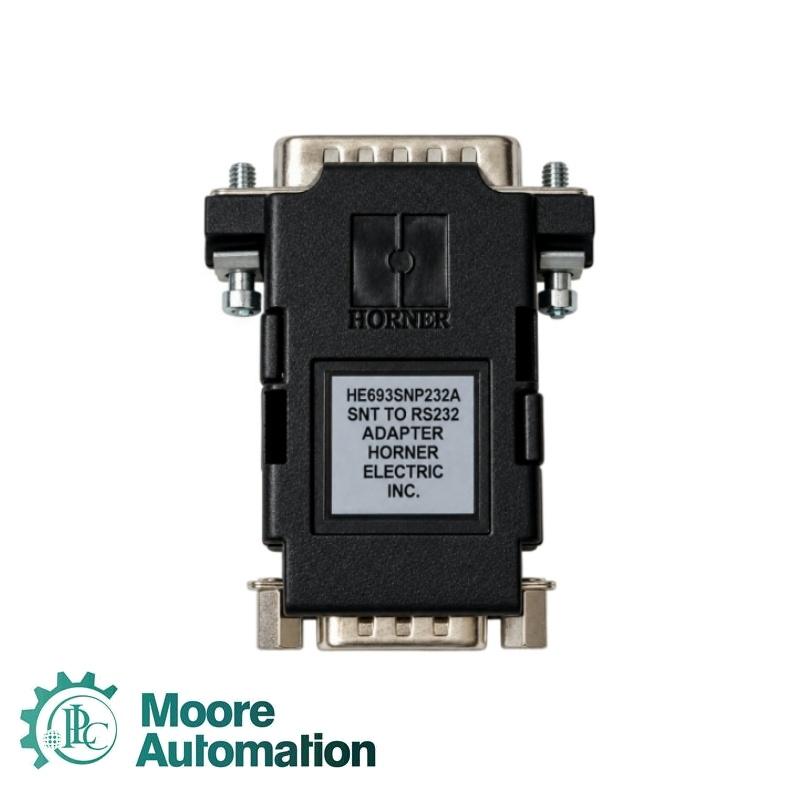

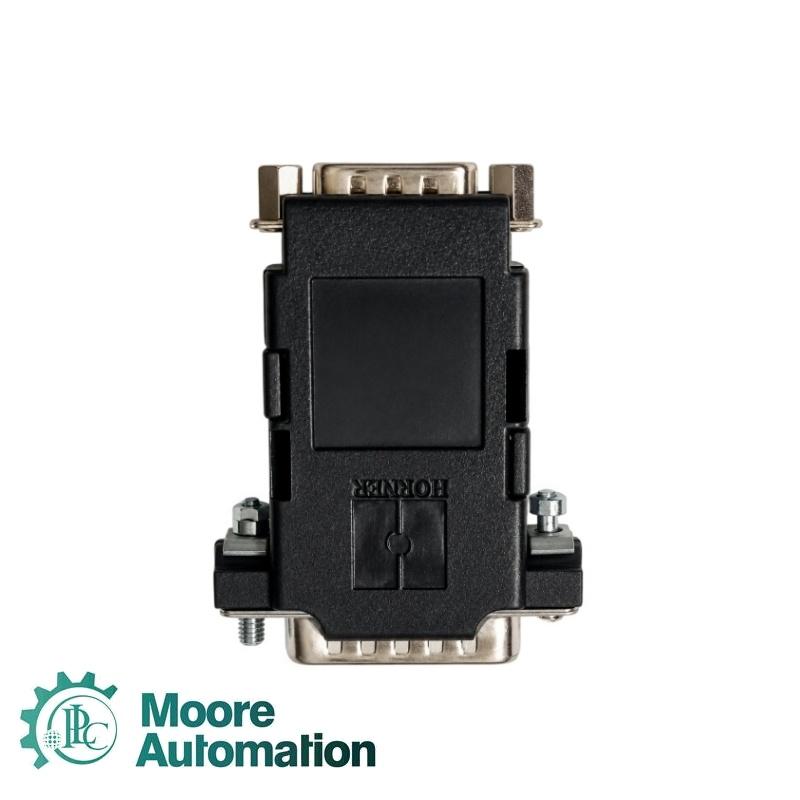

Horner APG HE693SNP232A SNP to RS-232 Adapter

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Mode of transport:

  • HS CODE:

  • Warranty:

    1 Year

  • Product Origin:

  • Lead Time:

  • Service:

Contact Us

  • Product Detail

Specifications
The Horner APG HE693SNP232A is an SNP-to-RS-232 adapter for connecting an RS-232 device to the Series 90 PLC programmer port. The adapter plugs directly into the 15-pin SNP port, receives power from that programming port, and provides a 9-pin RS-232 interface for a straight-through PC serial cable.
Product typeSNP to RS-232 adapter
PLC interfaceSNP / RS-422
Device interfaceRS-232
Serial ports2
PLC-side connector15-pin D-sub
RS-232 connector9-pin D-sub
Supply voltage5 V DC
Maximum current100 mA
Power sourcePLC programmer port
Data signalsTXD and RXD
Handshake signalsCTS and RTS
PC cableStraight-through, 1:1
Application Industry
01
Series 90-30 PLC programmingConnects an RS-232 computer interface to the rack power-supply programmer port.
02
Series 90 Micro communicationsSupports the serial cable-and-converter arrangement identified in GE application documentation.
03
SNP service connectionsProvides access between a 15-pin SNP interface and standard 9-pin RS-232 equipment.
04
PC commissioning linksUses a straight-through serial cable for compatible PC programming and setup tasks.
FAQ
Which PLC port accepts the HE693SNP232A adapter?
Use the 15-pin SNP programmer port on the CPU rack power supply.
How is the HE693SNP232A adapter powered?
Power is supplied directly by the programming port, with a maximum specified load of 100 mA at 5 V DC.
What PC cable should be used with the HE693SNP232A adapter?
Use a straight-through, one-to-one cable to a compatible 9-pin RS-232 port.
Which RS-232 signals are available on HE693SNP232A?
The 9-pin interface provides TXD, RXD, ground, CTS and RTS on the documented serial pins.
What compatibility check is required before installing HE693SNP232A?
Confirm that the target rack provides the documented 15-pin SNP programmer connection and that the RS-232 device matches the published pinout.
