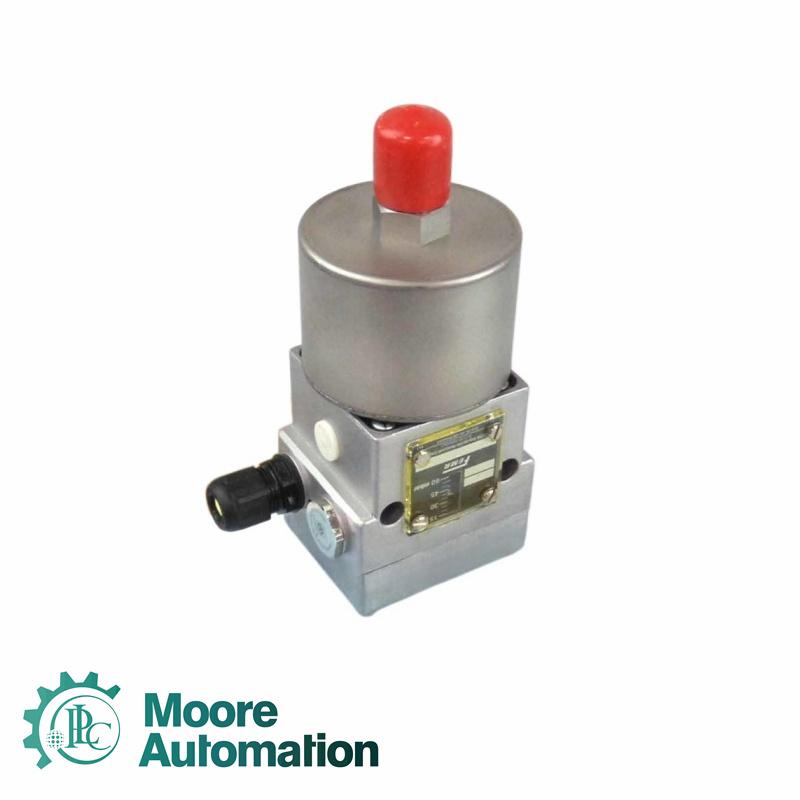

Honeywell EX-DGM506 Pressure Switch

For more information about EX-DGM506

Sale Manager

Email

Mobile(WhatsApp)

John Yang

sales3@askplc.com

86-18150117685

Full Details of EX-DGM506

Origin:USA

Delivery time: 1-3 days

Brand name:Honeywell

Payment method: T/T

Model: EX-DGM506

Quality: 100% original new

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

Main Parametersof EX-DGM506

Degree of Ex-protection: CE 0035 Ex II 2G Ex db eb IIC T6 and CE 0035 Ex II 2D Ex tb IIIC IP65 T85oC.
Kind of pressure: overpressure, relative
Pressure connection: internal thread G1/4, external thread G1/2
Electrical connection: terminal connection M16x1,5
Protection class: IP65
Housing material: rugged housing of seawater resistant aluminium die casting GD Al Si 12
Sensing element material: 1.4104 + 1.4571
Media temp.: -15...60C
Media temp. limit: temperatures up to 80 oC are allowable for short periods. Higher temperatures are possible, provided that the limit is safeguarded by suitable measures (e.g. water tube trap, see Accessories for Pressure Switches / Transmitters)
Ambient temperature: -15...60C
Ambient temp. limit: at temperatures below 0 oC, ensure that no water condensation can arise in the sensor and in the switching device
Switch function/capacity: SPDT Microswitch 250 Vac; capacity 2 A inductive, 3 A resistive
Certificates: NG-4346 AP 1011 according DIN EN 1854
CE-0085 AQ 1088 according EU/2009/142/EG (30.11.2009) and DIN EN 1854 (01.07.2006)
PTB 02 ATEX 1121 according Directive 94/9 EC
SIL2 according IEC 61508
Max. pressure: 5bar
Pressure adjustment range: 15...60mbar
Switching differential: 10mbar

Product Outlineof EX-DGM506

The pressure occurring in the sensor housing (1) acts on the measuring bellows (2). Changes in pressure lead to movements of the measuring bellows (2) which are transmitted via a thrust pin (4) to the connecting bridge (5). The connecting bridge is frictionlessly mounted on hardened points (6). When the pressure rises the connecting bridge (5) moves upwards and operates the microswitch (7). A counterforce is provided by the spring (8) whose pretension can be modified by the adjusting screw (9) (switching point adjustment). Turning the setting spindle (9) moves the running nut (10) and modifies the pretension of the spring (8). The screw (11) is used to calibrate the microswitch in the factory. The counter-pressure spring (12) ensures stable switching behaviour, even at low setting values.

FAQ of EX-DGM506

What is the Honeywell EX-DGM506?
It is a Pressure Switch.


Is this product brand new?
Yes, Honeywell EX-DGM506 is brand new, original, unused, and factory sealed


Do you have it in stock?
Yes, right now we have Honeywell EX-DGM506 in stock ready for shipment, we can support video inspection.
