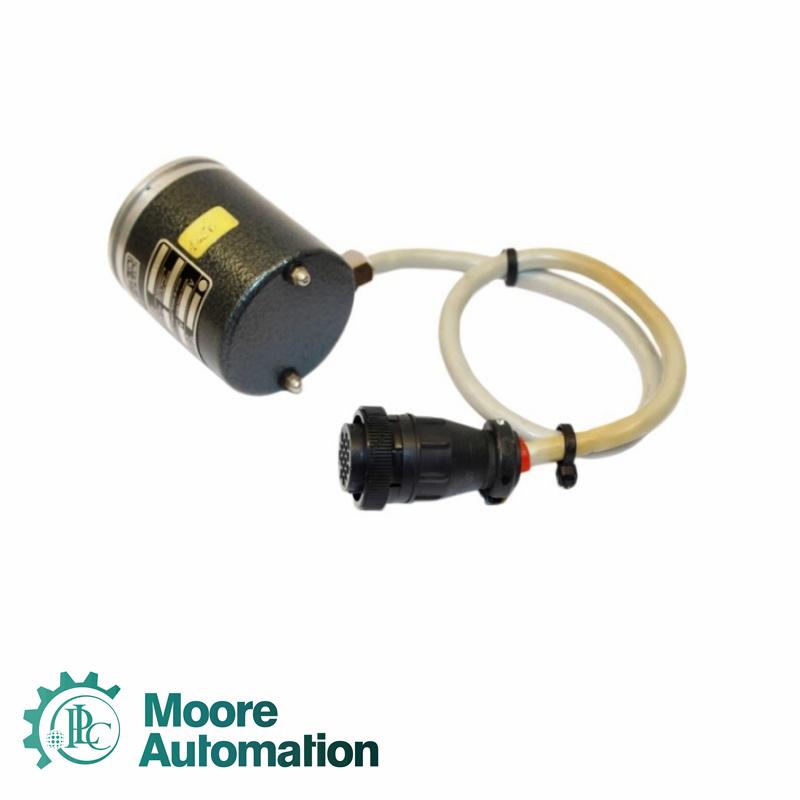

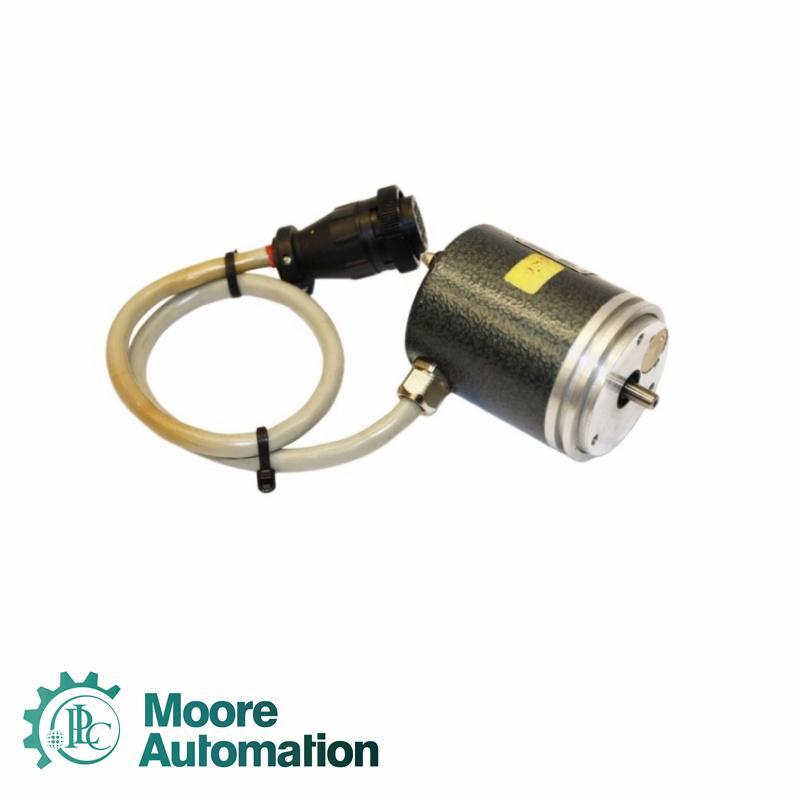

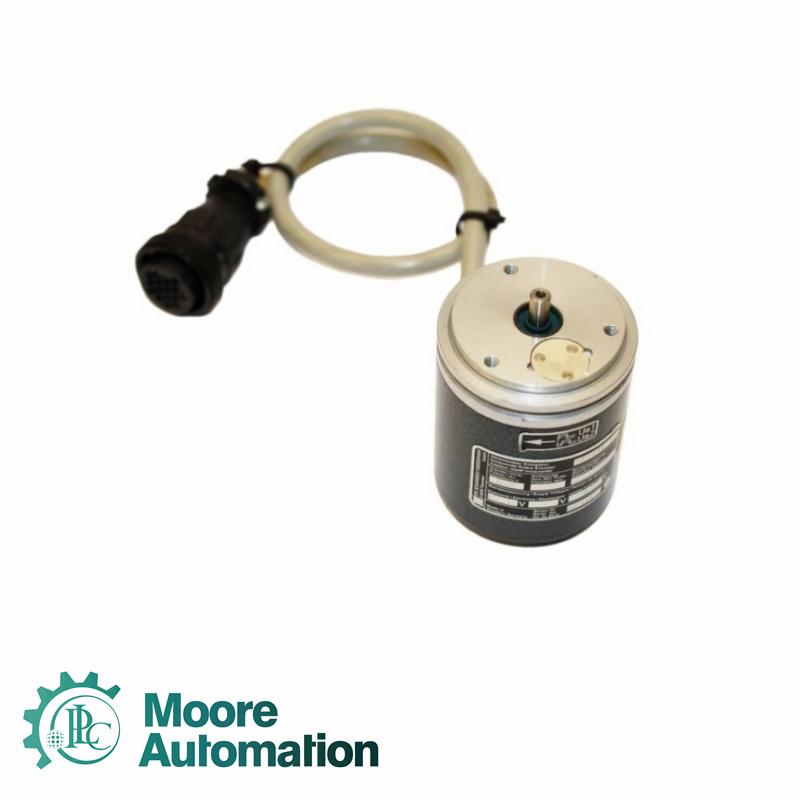

HEIDENHAIN ROD630 900 28S0 Encoder

Top Sales Manager--John Yang

Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Quick Details

Brand name:HEIDENHAIN

Model: ROD630 900 28S0

Delivery time: 1-3 days

Payment method: T/T

Quality: 100% original and 100% brand

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Product Overview

The HEIDENHAIN ROD630 900 28S0 is an incremental rotary encoder designed for industrial automation applications. With 900 signal periods and a maximum scanning frequency of 300 kHz, the ROD630 900 28S0 provides precise position feedback for machine tools and motion control systems. It operates on a DC 10–30 V power supply, delivering HTL output signals and a 90° reference mark. The solid shaft (15 mm diameter, 30.1 mm length) and clamping flange (66 mm) with centering collar enable secure mounting.

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Performance Specifications

Number of Signal Periods: 900
Max Scanning Frequency: 300 kHz
Power Supply: 10 V to 30 V DC
Output Signal: HTL
Reference Mark: 90°
Operating Temperature: -20 to +70 °C
Flange Version: Clamping flange 66 mm, centering collar 50 mm, bolt circle Ø 60 mm, 4 × M3
Shaft: Solid shaft with keyway, diameter 15 mm, length 30.1 mm
Protection Rating: IP66 (EN60529)
Electrical Connection: Flange socket, male, 17-pin, Cannon model
Pin Configuration: D651828
Connecting Direction: Radial
Scanning Frequency Edge Separation a: ≤ 300 kHz
Edge Separation Time: ≥ 0.39 µs
System Accuracy: ±1/20 of grating period
Voltage Supply: DC 10 V to 30 V
Current Consumption without Load: ≤ 150 mA
Mechanical Permissible Speed: ≤ 12,000 rpm
Starting Torque: ≤ 0.05 Nm (at 20 °C)
Moment of Inertia of Rotor: ≤ 11×10⁻⁶ kg·m²
Shaft Load Axial: 75 N
Shaft Load Radial: 75 N at shaft end
Vibration: 55 Hz to 2000 Hz
Shock 6 ms: ≤ 200 m/s² (EN 60068-2-6)
Shock 6 ms High: ≤ 2000 m/s² (EN 60068-2-27)
Max Operating Temperature: 85 °C
Min Operating Temperature: -20 °C
Relative Humidity: ≤ 93 % (40 °C/4 d, EN 60068-2-78) without condensation
Protection Standard: EN 60529 IP66

★ Brand new   ★ In stock   ★ competitive price ★ Email: sales3@askplc.com

Key Features of the ROD 600 Series
Incremental Rotary Encoder with Integrated Bearings
Solid Shaft with Separate Shaft Connection
Positioning Accuracy Down to ±13"
Up to 5000 Signal Cycles per Rotation
Maximum Operating Temperature: 85 °C
Protection Rating: IP66
Interfaces: HTL and TTL
House Diameter ≈ 66 mm
