GE IS200TVBAH1ACC Analog Terminal Board

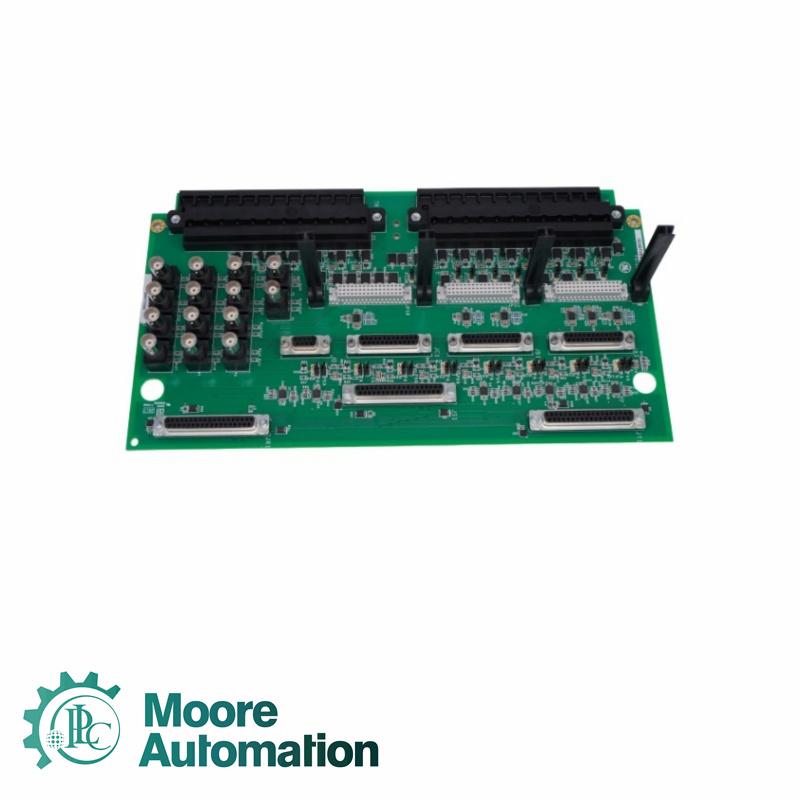

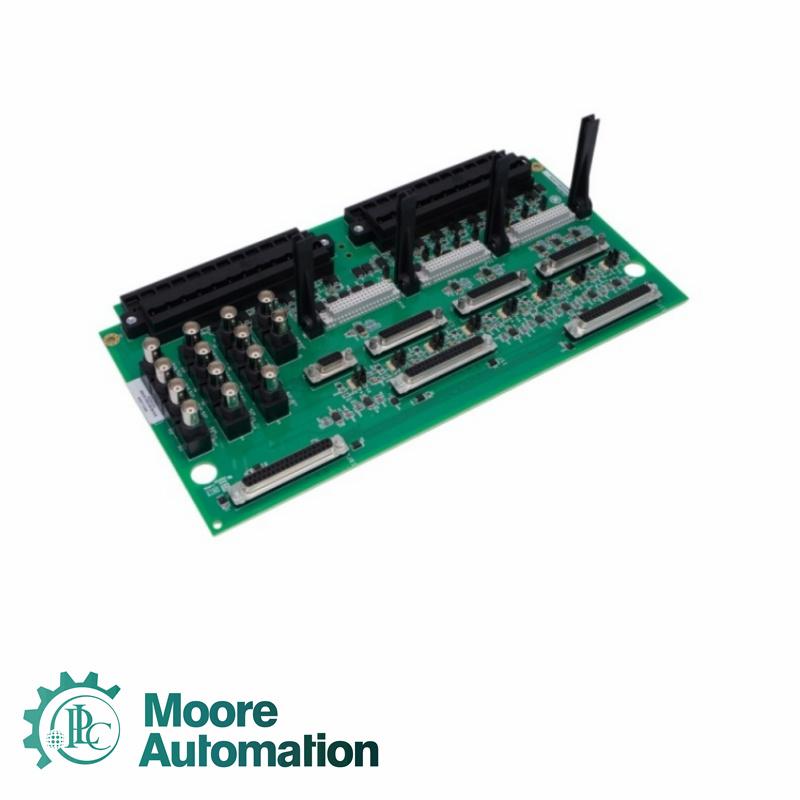

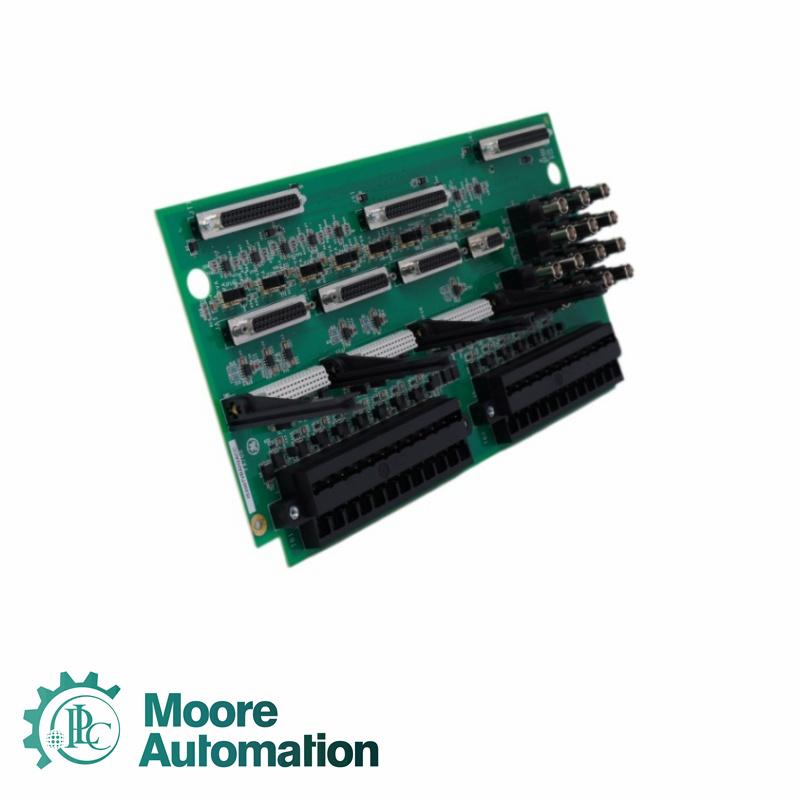

IS200TVBAH1ACC is a Analog Terminal Board developed by GE.It is a part of Mark Vle control system.The board serves as a signal interface board for the l/O packs Mark Vle PVIB or Mark VleS VIB.Eddy-current (position and velocity), seismic (velocity), Velomitors, and accelerometers with integrated outputs (velocity) sensors have a direct vibration interface.It also gives charge amplifiers a dynamic pressure interface.Transient suppression protects the terminal board input signals entering through the two 24-point screw terminals from high voltages caused by electrical disturbances.Jumpers JPxA and JPxC, located to the left of the 37-pin I/O pack connectors and to the right of the 24-point screw terminals, power the various sensors and detect open circuits.

Manufacturer: GE
Model: IS200TVBAH1ACC
System Compatibility: Mark Vle control system
Function: Vibration Terminal Board, signal interface for I/O packs
Supported Sensors: Eddy-current (position/velocity), seismic (velocity), Velomitors, accelerometers (velocity)
Input Protection: Transient suppression for 24-point screw terminals
Power Supply: +28 V from customer; -28 V via WNPS daughter board for Bently Nevada sensors
I/O Connectors: 37-pin connectors to I/O packs
Buffered Outputs: 9-pin and 25-pin DIN connectors, BNC for third-party monitoring
Configuration Jumpers: JPxA, JPxB, JPxC
Application: Simplex or TMR configurations

The input signals are routed to the I/O packs via 37-pin connectors on the right side. The TVBA is suitable for both simplex and TMR applications. TMR applications distribute the signal across three I/O packs. The input signals' buffered outputs are routed to 9 and 25 pin DIN connectors to feed the Bently Nevada 3xx monitoring system.

A bayonet nut connection (BNC) is also included for each buffered output to feed third-party monitoring equipment. Use the JPxB jumpers to the left of the 37-pin I/O pack connectors to configure the output buffers for the appropriate sensor. Channels 1 through 13 and 14 of the I/O pack are routed to buffered outputs for external use.The l/O pack receives power from a +28 V supply supplied by the customer

The WNPS daughter board supplies the -28 V power required to power the Bently Nevada sensors for the TVBAH#A terminal boards only, one for simplex and three for TMR configurations.The removable daughterboar (s) convert the +28 V power from the source to -28 V power.

What is IS200TVBAH1ACC?
It is a Analog Terminal Board developed by GE

How are input signals routed to the I/O packs?
The input signals are routed to the l/O packs via 37-pin connectors on the right side.

What is the purpose of the WNPs daughter board?
The WNPS daughter board supplies the -28 V power required to power the Bently Nevada sensors for the TVBAH#A terminal boards only, one for simplex and three for TMR configurations.

How are the output buffers configured for the appropriate sensor?
Use the JPxB jumpers to the left of the 37-pin l/O pack connectors to configure the output buffers for the appropriate sensor.

Where are the buffered outputs routed for external use?
Channels 1 through 13 and 14 of the l/O pack are routed to buffered outputs for external use.
