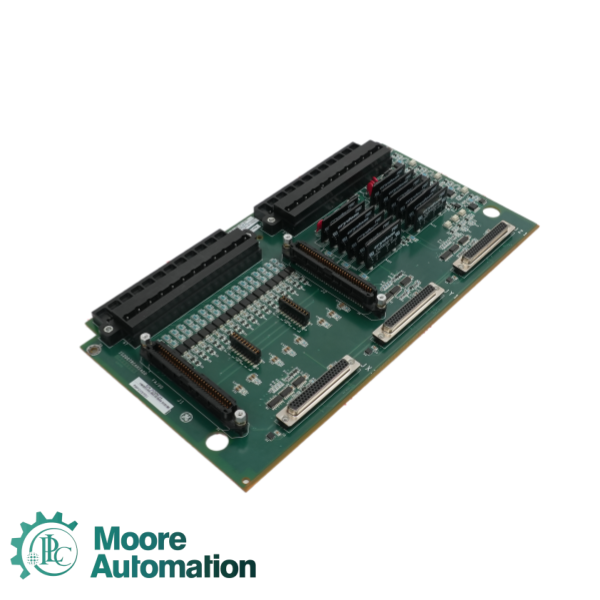

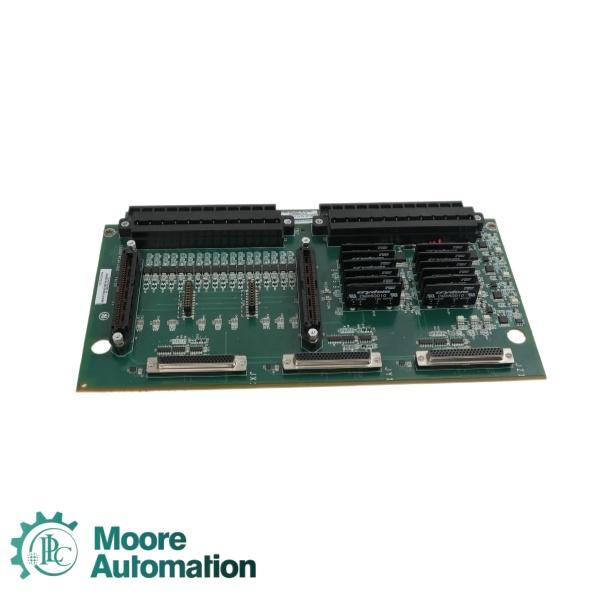

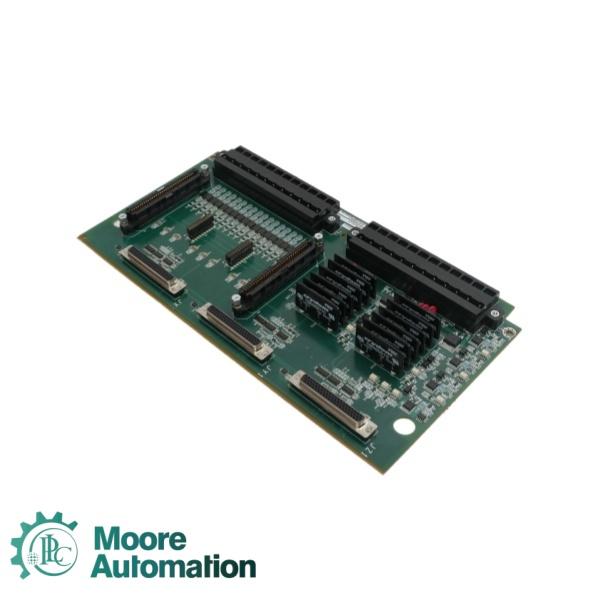

GE IS200TREAH1A TURBINE EMERGENCY TRIP TERMINAL BOARD

Contact info

Sales manager:

Yuki

Email:

sales6@askplc.com

Whatsapp:

+86 17359287459

Product info

Brand:

GE

Product Number:

IS200TREAH1A

Describe:

The GE IS200TREAH1A is a specialized turbine emergency trip terminal board designed as a core component of the GE Mark VIe control system . It serves as a critical interface between field devices (such as speed sensors and trip relays) and the turbine protection I/O packs (e.g., PPRO or YPRO), playing an essential role in ensuring the safe operation of gas and steam turbines .

Data info

Operating Temperature:

-30℃ to +65℃

Storage Temperature:

-40℃ to 85℃

Humidity:

5% to 95% (non-condensing)

Input Channels (Speed):

6 passive pulse rate (MPU) inputs (supporting up to 3 shafts with 2 sensors each)

Speed Pulse Range:

2 Hz to 20 kHz

Output Channels (Trip):

3 TMR voted 24 V DC solid-state output contacts

Trip String Monitoring:

4 circuits, 24-125 V DC range

Communication Interface:

RS-232 / RS-422 (for speed repeater outputs)

Customer Input Terminals:

Two 24-point pluggable barrier terminal blocks

Application

Gas Turbines:

Used in Mark VIe control systems for aero-derivative and heavy-duty gas turbines. It monitors overspeed and processes emergency trip signals to prevent catastrophic rotor failure .

Steam Turbines:

Integrates with turbine protection systems to monitor critical parameters such as differential expansion, bearing vibration, and emergency overspeed, triggering a trip if safety limits are exceeded .

Compressor Trains:

Deployed in large centrifugal or reciprocating compressor applications to monitor shaft speed and vibration, providing a hardwired emergency shutdown (ESD) path for process protection .

We ship globally

The fastest and most competitive service, regardless of size and weight.

We use fast and reliable global companies (UPS, DHL, FedEx, TNT, and DPD)

Provide express delivery services

We can use the customer's shipping account to ship the goods.

FAQ

Q: What is GE's legacy in the industrial automation industry?

GE (General Electric), founded by Thomas Edison in 1889, was a global leader in PLC systems, including the famous Series 90-70, PACSystems RX3i/RXi, and VersaMax I/O platforms. While GE's industrial automation division was acquired by Emerson in 2019, these products remain widely used in factories worldwide .

Q: Does GE support hot-swapping of I/O modules?

Yes, most GE PACSystems and VersaMax I/O modules support hot insertion (hot-swapping) when used with compatible Network Interface Units. This allows module replacement without powering down the entire system. However, always verify your specific NIU configuration before performing

hot-swap .

Q: What is the most common failure mode in GE PLC modules?

Power supply aging (capacitor failure) and communication faults (Ethernet/Profibus dropouts).

Q: What is GE's proprietary communication protocol for PLCs?

GE developed SRTP (Service Request Transport Protocol) for Ethernet communication with PLCs, succeeding the serial SNP/SNPX protocols. It uses default port 18245 .
