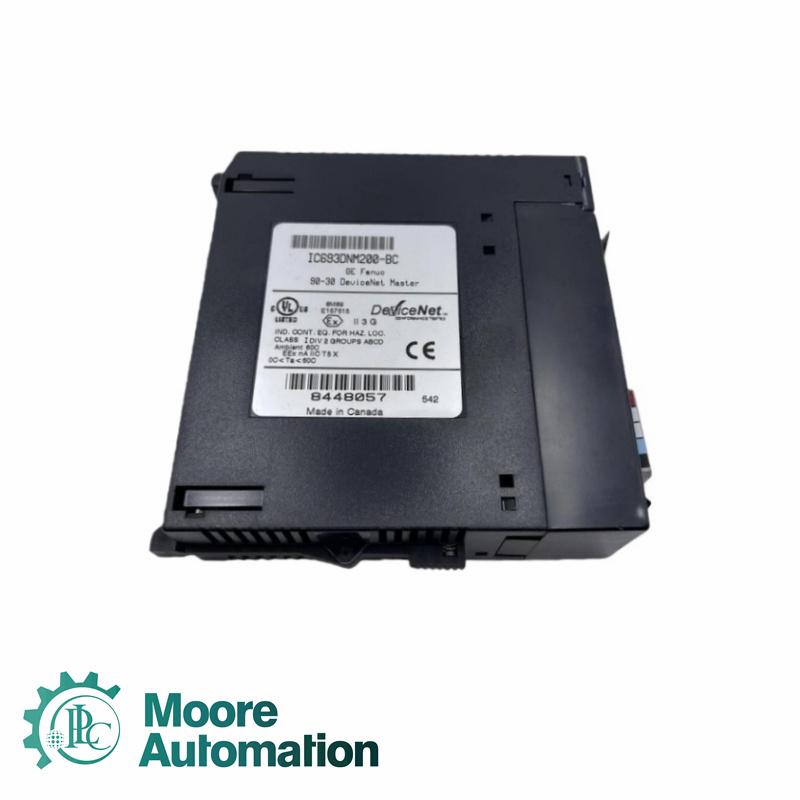

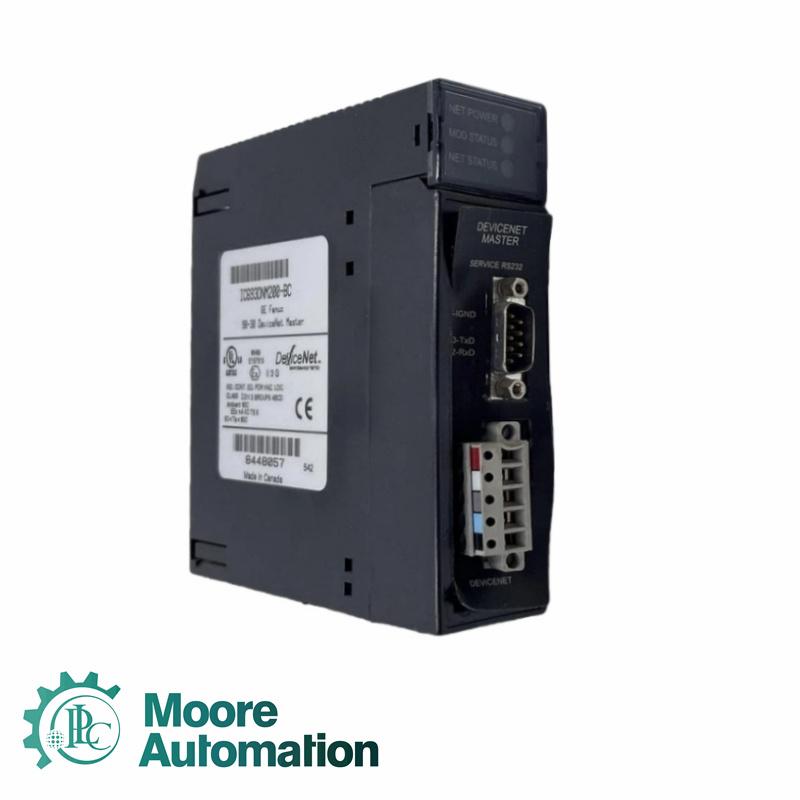

GE IC693DNM200-BC DeviceNet Master Module

24-hour Online Service-IC693DNM200-BC

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Long description-IC693DNM200-BC

Details-IC693DNM200-BC

The DeviceNet Master Module allows a control system CPU to send and receive data over a DeviceNet network. The module can act as master for up to 63 slaves on the DeviceNet network. It can also be configured to simultaneously function as a slave to another master on
the bus.

Storage temperature: -40°C to 85°C
Operating temperature: 0°C to 60°C
Backplane Current Consumption 450mA at 5VDC (typical)
Data rates Supports all standard DeviceNet data rates (125K, 250K, and 500K Baud)
Mounting Location：
1.Series 90-30 Series 90-30 main rack: Any slot except slots 0 and 1.
2.PACSystems RX3i RX3i main rack: Any slot except slot 0.
DeviceNet Master modules cannot be installed in remote or expansion racks.

FAQ-IC693DNM200-BC

Features-IC693DNM200-BC

The DeviceNet Master Module allows a PACSystems RX3i or a Series 90-30 PLC to send and

receive I/O data from a DeviceNet network. Module features include:

▪ Support for all standard data rates (125K, 250K, 500K)

▪ Support for 255 bytes input data transfer and 255 bytes output data transfer per

slave

▪ Support for 3972 bytes of input data transfer and 3972 bytes of output data transfer

per master.

▪ Support for two I/O connections per Slave. Typically, one connection is used for

Polled and the other is used for Strobe, Cyclic, or COS

▪ Support for Poll, Strobe, Cyclic and COS I/O Connections, and Explicit Messaging

▪ Support for Unconnected Message Manager (UCMM) with one proxy connection per

slave device

▪ Support for configuration of the global scan rate

▪ Support for configuration of update rates for Poll and COS/Cyclic on a connection

basis.

▪ Support for PLC-application initiated explicit messaging via a COMMREQ

▪ Master can be configured to operate as a slave simultaneously with master

operation

▪ Configurable fault behavior on loss of communication

▪ Reports loss or reestablishment of communication with slaves in PLC fault table

(configurable)

▪ Support for 64 network device status bits. (Note: the bit for the master itself is always

zero.)

▪ Firmware update via service port on module
