GE IC660ELB906R PCIM Interface Module

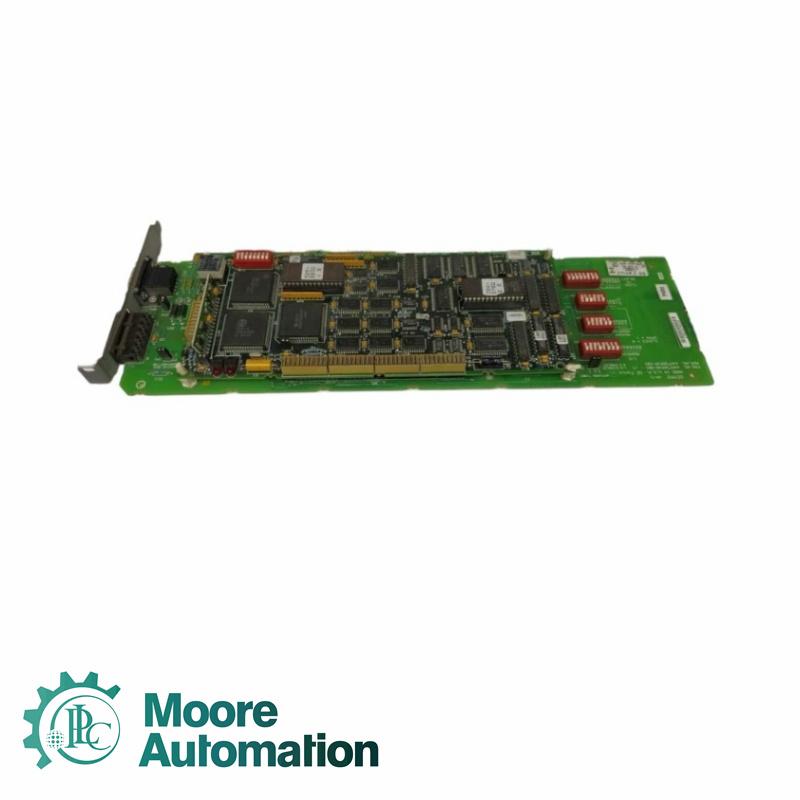

The IC660ELB906R PCIM Interface Module or PCIM which is made by GE Fanuc is made to be installed in an XT-type slot in a personal computer. It is designed to interface a Genius bus to a compatible host computer. It is also designed to integrate with user-developed microprocessor systems. This interface module has a cost-effective design, extensive diagnostic facilities, and high level of reliability and noise immunity, making it ideal for the Genius I/O system. The IC660ELB906R PCIM Interface Module offers control and monitoring functions such as low supply voltage detection, host system address decoding, host interrupt control, signal conditioning, and a built-in watchdog timer. It also provides an onboard DIP switch for configuring the network data rate.

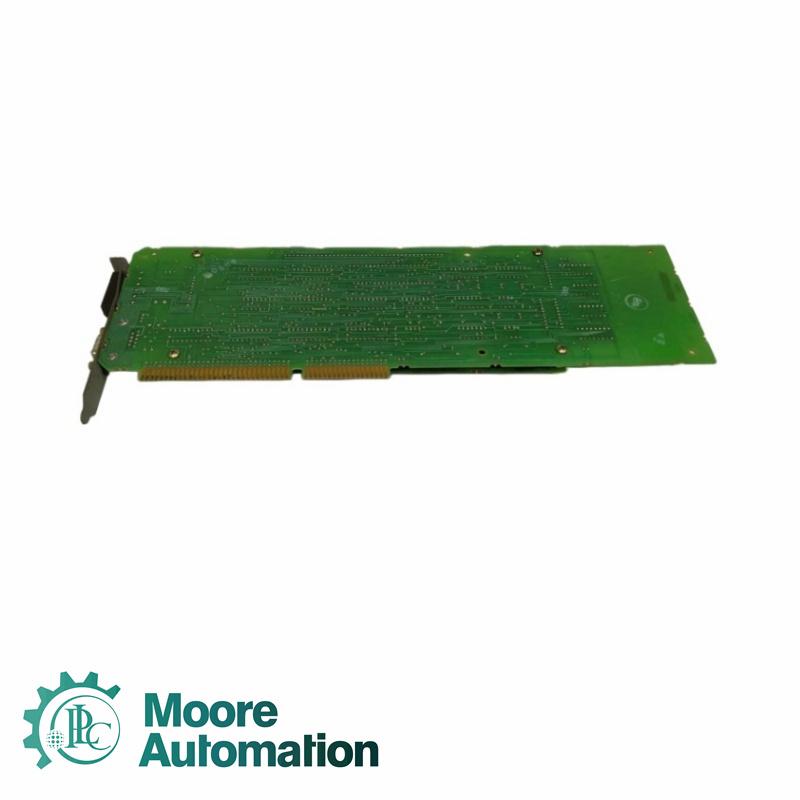

The IC660ELB906R PCIM Interface Module consists of a motherboard and a daughterboard that are made to provide effective interfacing facilities. The motherboard is a 2-layer rectangular board and the daughterboard is a 4-layer rectangular board. Its functionalities consist of 3 main sections which are the serial interface, dual-port RAM, and PCIM manage processor. The required data from the host computer is received into the input table segment for the corresponding serial bus address of the bus interface unit. In order to employ the I/O data of the bus interface unit accurately, the module arrangement of the station and information of the I/O data must be properly entered into the host computer. The I/O data includes the input and output details of the relevant serial bus addresses for the bus interface modules. A personal computer that is equipped with the IC660ELB906R PCIM Interface Module can effectively control the field control station and Genius I/O blocks that are in the same application system.

Manufacturer: GE Fanuc Emerson
Product Line: Genius I-O
Part Number: IC660ELB906R PCIM
Dimensions: 28.6x7.5x5.5 cm
Weight: 0.6 kg
Product Description: Interface Module
Board Type: XT slot, AT type
Power Requirement: 5 V DC, 400 mA
Bus Loading: 1 LS TTL load per input line
Bus Drive Capability: 10 LS TTL load per output line
Status LEDs: 2 (for each daughterboard)
Ambient Operating Temperature: 0 to 60 °C
Hand-held Monitor Connection: External Connector
Host Backplane Interface: ISA Compatible

Automotive: Used for long-distance I/O node monitoring in assembly lines and paint shops, utilizing its single serial bus to cover large production areas.

Water Treatment & Environmental Engineering: Connects pump stations, sensors, and actuators distributed across different plant areas, supporting data transmission over distances exceeding 2200 meters.

Material Handling & Packaging: Responsible for the acquisition and feedback of high-speed discrete signals in large automated warehouses or high-speed packaging lines.

Steel & Mining: Utilizes its strong signal isolation and noise immunity characteristics to ensure the stability of control systems in harsh electromagnetic interference environments.

What is the GE IC660ELB906R PCIM?
It is a Interface Module.


Is this product brand new?
Yes, IC660ELB906R PCIM is brand new, original, unused, and factory sealed


Do you have it in stock?
Yes, right now we have IC660ELB906R PCIM in stock ready for shipment, we can support video inspection.
