Product Infor
Brand name: GE
Model: IC660BBA104
Warranty period: 1 year
Condition: 100% original new
Transportation period: DHL FEDEX EMS UPS TNT
|
Full Details |
|
|
Parameter |
Value |
|
Part Type |
I/O Block Unit |
|
Dimensions |
22 x 8 x 9 cm |
|
Weight |
1.8 kg |
|
LED Indicators |
Unit OK, I/O Enabled |
|
Block-to-Block Isolation |
1500 V for 1 minute |
|
Group-to-Group Isolation |
1500 V RMS |
|
Heat Dissipation |
12 W maximum |
|
Block Power (Nominal) |
115 VAC; 125 VDC; 24/48 VDC |
|
Power Supply Voltage (AC) |
98–132 VAC |
|
AC Current |
250 mA |
|
AC Frequency |
47–63 Hz |
|
AC PS Dropout Time |
1 cycle |
|
Power Supply Voltage (DC High) |
105–145 VDC |
|
DC Current |
140 mA |
|
DC Ripple |
10% max |
|
DC Dropout Time |
10 ms min |
|
Power Supply Voltage (Low DC) |
18–56 VDC |
|
Low DC Current |
600 mA |
|
Low DC Ripple |
10% max |
|
Low DC Dropout Time |
10 ms min |
|
Input Accuracy (25°C) |
±0.1% of full scale reading |
|
Input Resolution |
1 µA |
|
Input Conversion Time |
16.6 ms to 400 ms (user selectable) |
|
Input Range |
4–20 mA |
|
Overrange Capacity (Input) |
0–25 mA |
|
Input Diagnostics |
Under/Overrange; High/Low Alarm; Open Wire |
|
Channel-to-Channel Isolation |
1500 V RMS |
|
Thermal Drift (25°C reference) |
70 ppm/°C typical |
|
Input Impedance |
100 Ω ±5% |
|
Normal Mode Rejection |
-45 dB at 50/60 Hz |
|
Output Accuracy (25°C) |
±0.15% of full scale reading |
|
Output Resolution |
6 µA |
Qiuck Details

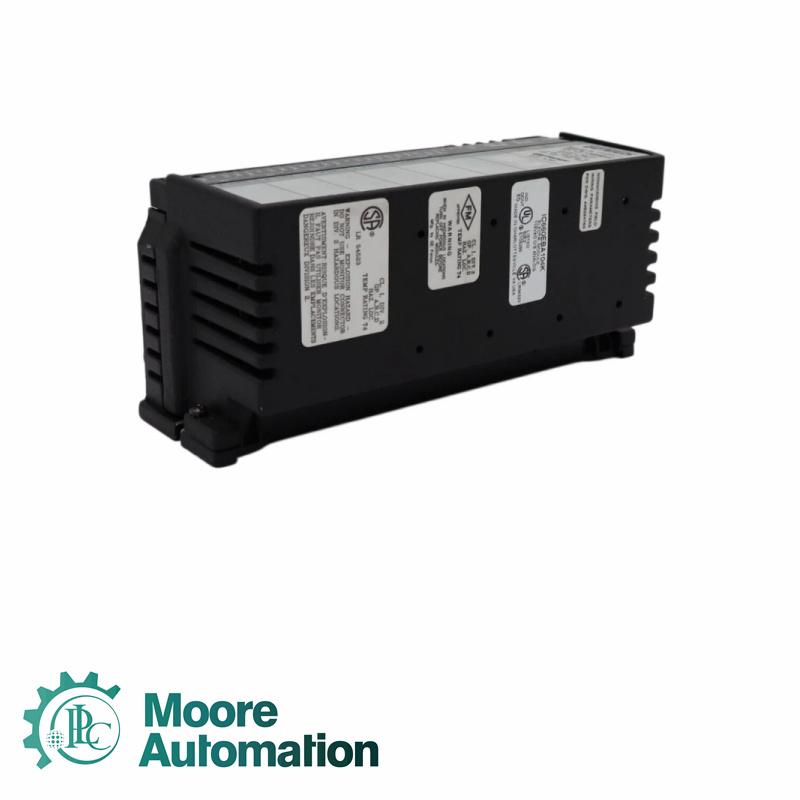

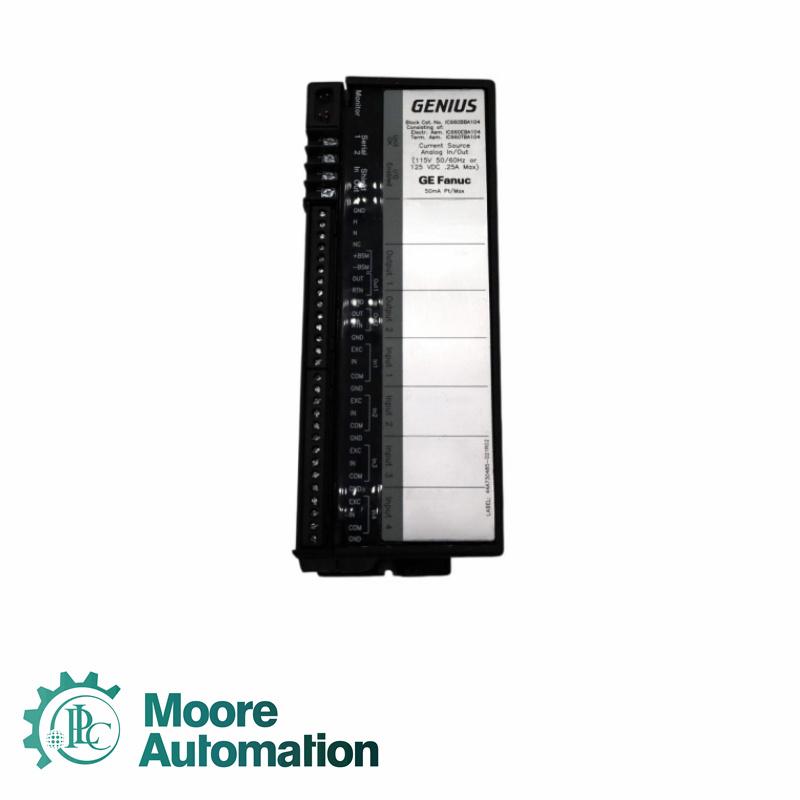

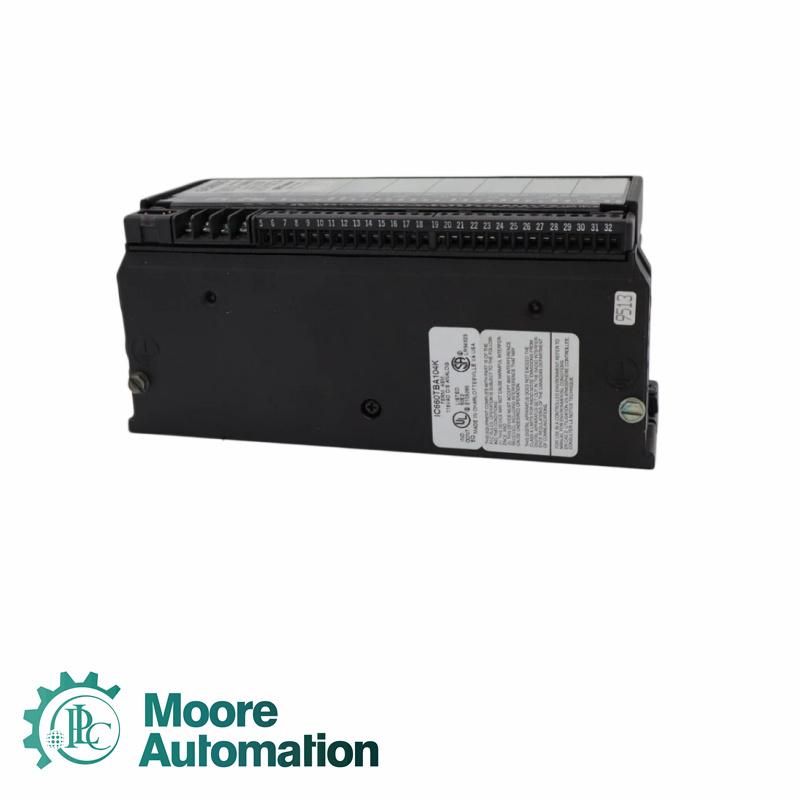

The GE IC660BBA104 is a high-performance current-source analog I/O block designed for industrial automation and process control systems. It combines both analog input and output capabilities within a compact and robust field-mounted design, making it suitable for distributed control applications.
|
Ask for Quotation |
|
|
|
Contact: John Yang |
|
|
Email: sales3@askplc.com |
|
|
Mobile(WhatsApp): 86-18150117685 |
Features
Six 4-to-20 mA analog circuits: 4 inputs and 2 outputs
Isolated channels
No user calibration required for operation
Software configurable
Advanced diagnostics
Dedicated Bus Switching Module control
Diagnostics
input low and high alarm detection
overrange and underrange detection for inputs and outputs
input open wire detection
output feedback error detection
internal fault reporting
Application
Old power plant retrofit facility: used as part of a distributed control network to monitor turbine current transmitter signals, ensuring safe data acquisition in high-voltage isolated environments.
Metal rolling processing plant: designed for installation in heavy-duty machinery cabinets, providing stable current-based control for hydraulic regulation systems under strong vibration conditions.
Paper pulp manufacturing plant: operates reliably in high-humidity environments, with strong channel isolation protecting control systems from electrical interference caused by motor starts.
Water treatment chemical plant: enables precise monitoring of dosing flow transmitters with very high signal resolution, supporting accurate micro-addition logic.
Petrochemical storage facility: supports long-distance field wiring integrity monitoring through open-circuit detection, ensuring reliable loop supervision of remote transmitters.
Careful Customer Service
Over millions spares inventory
Fast lead times deliver uptime globally
100% brand-new and original products
Competitive prices and specific dealer discounts
Frequently Asked Questions
Q: What voltage isolation level does the IC660BBA104 module support?
A: It provides strong protection with up to 1500V RMS isolation between blocks, groups, and channels.
Q: Can the input resolution of the IC660BBA104 reach the microampere level?
A: Yes. It offers very high sensitivity with 1 µA input resolution and 6 µA output resolution.
Q: Can the IC660BBA104 module be directly connected to 24VDC?
A: Yes. It supports multiple supply types, including 115VAC, 125VDC, and 24/48VDC.
Q: Does the IC660BBA104 provide diagnostic prompts if a disconnection occurs in the field?
A: Yes. It includes real-time diagnostics such as open-wire detection, over-range, and alarm reporting.
Q: Is the conversion speed of the IC660BBA104 adjustable?
A: Yes. The input conversion time can be configured between 16.6 ms and 400 ms based on process needs.
