GE DS200TCQAG1BFD DS215TCQAG1BZZ01A Mark V series turbine control systems

/Description/

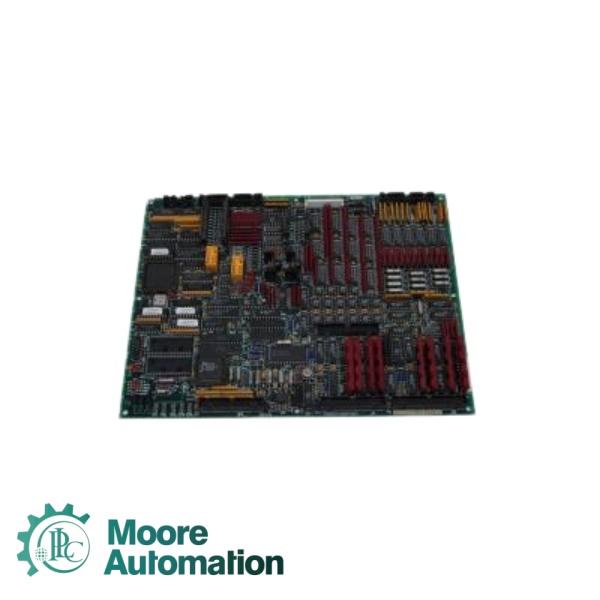

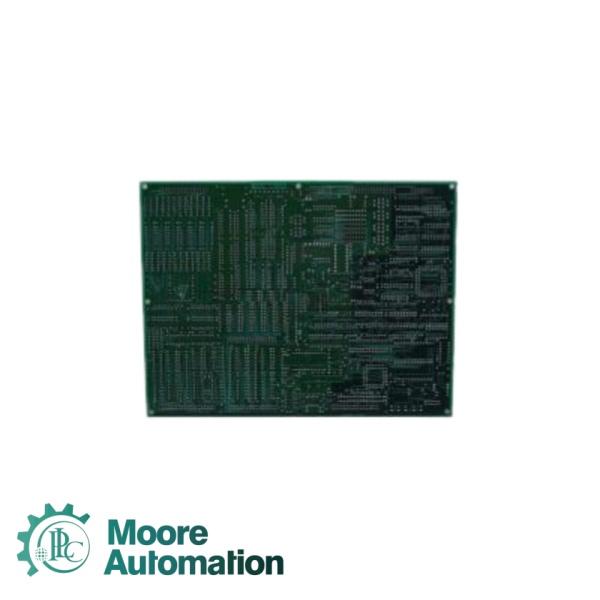

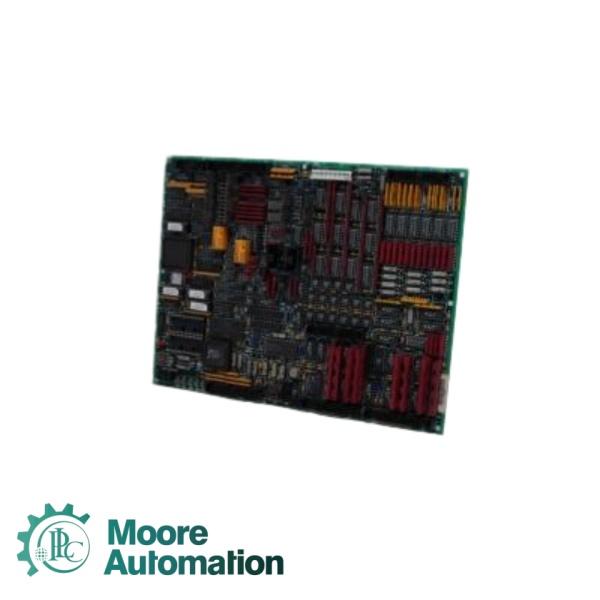

The GE DS200TCQAG1BFD DS215TCQAG1BZZ01A is an industrial-grade Analog I/O (TCQA) Control Board designed for the GE Mark V Speedtronic steam and gas turbine automation system. Functioning as the core signal-conditioning hub within the R1, R2, and R3 control cores, this multi-layered microprocessor module scales, isolates, and translates low-voltage analog field inputs into stable digital data streams for processing. It features six 34-pin connectors, two 40-pin connectors, six hardware-configurable jumpers, and a dedicated row of diagnostic status LEDs to orchestrate complex feedback variables such as servo valve position loops, LVDT tracking, thermocouple grids, and critical generator line frequencies under severe power generation conditions.

/Key Information/

Logic Power Supply Input: +24V DC nominal power rail

I/O Channel Capacity: 8 configurable processing channels

Onboard Resolution Capacity: 12-bit analog-to-digital signal conversion

Operating Ambient Temperature: -40°C to +85°C (-40°F to +185°F) continuous

Permissible Humidity Boundary: 5% to 95% Relative Humidity

/Service/

1.All items are NEW.

2.Any inquiries will be replied within 1 hour.

3.We check them more than three times before we send out the goods!

/Shipping/

1.Item within 1-2 days after the payment is cleared.

2.Item ship By E-packing/FedEx/EMS/TNT/DHL/UPS.

3.All the packing ship with tracking number.

/Faq/

Q: What is GE's legacy in the industrial automation industry?

A: GE (General Electric), founded by Thomas Edison in 1889, was a global leader in PLC systems, including the famous Series 90-70, PACSystems RX3i/RXi, and VersaMax I/O platforms. While GE's industrial automation division was acquired by Emerson in 2019, these products remain widely used in factories worldwide .

Q: Does GE support hot-swapping of I/O modules?

A: Yes, most GE PACSystems and VersaMax I/O modules support hot insertion (hot-swapping) when used with compatible Network Interface Units. This allows module replacement without powering down the entire system. However, always verify your specific NIU configuration before performing hot-swap .

Q: What is the most common failure mode in GE PLC modules?

A: Power supply aging (capacitor failure) and communication faults (Ethernet/Profibus dropouts).
