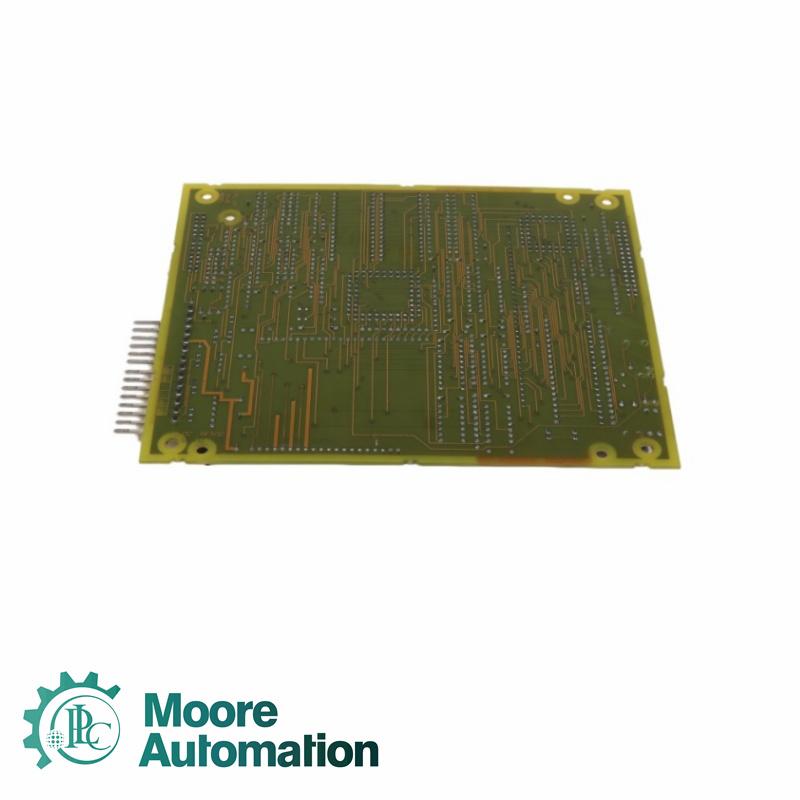

GE DS200SLCCG4AF Communication Module

The DS200SLCCG4AF is designed for GE's Mark V turbine control system, intended for controlling and managing industrial gas and steam turbine systems. The Mark V control system can be configured as a simplex or TMR (Triple Modular Redundancy) system. It is important for customers to know that the DS200SLCC board typically does not include software located in the U6 and U7 EPROMs, as these slots are empty at the factory. If you do not intend to remove the EPROM from your old board to move it to a new one, order a replacement board (DS215 grade) with the EPROM.

The DS200SLCCG4AF board mounts on a bracket on the SDCC board and connects to the keyboard on the card via a KPPL connector.

The DS200SLCCG4AF has a 16-bit alphanumeric display parallel to one edge. Four posts (ST1 to ST4) near the end of this display protect its glass tip. These posts may look like jumpers but should not be confused with jumpers elsewhere on the board. Jumper settings can be modified to change the RS-422 DLNA driver or isolate the DLNA circuitry. In addition, the J19 jumper is used to connect the crystal to the processor.

Input Voltage: 24 V DC
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Communication Interface: Ethernet
Control and Monitoring Functions: Supports various control and monitoring functions for industrial applications
Dimensions: 18.8 x 14.2 x 2 cm
Weight: 0.25 kg
Mounting: DIN rail or panel mount
Certifications: CE, UL, ATEX
Compatibility: Compatible with GE Mark VIe Turbine Control System

Q1: What systems is the DS200SLCCG4AF compatible with?
A1: It is designed for GE Mark V turbine control systems, compatible with both simplex and TMR (Triple Modular Redundancy) configurations.

Q2: What is the operating temperature range of DS200SLCCG4AF ?
A2: The module operates reliably from -40°C to +70°C, suitable for harsh industrial environments.

Q3: What are the mounting options for this DS200SLCCG4AF?
A3: The module can be mounted on a DIN rail or a panel, providing flexibility for different control cabinet setups.

Q4: Does the module include pre-installed software?
A4: No. The U6 and U7 EPROM slots are empty at the factory. Users can transfer EPROMs from old boards or order a replacement board with pre-installed software (DS215 grade).
