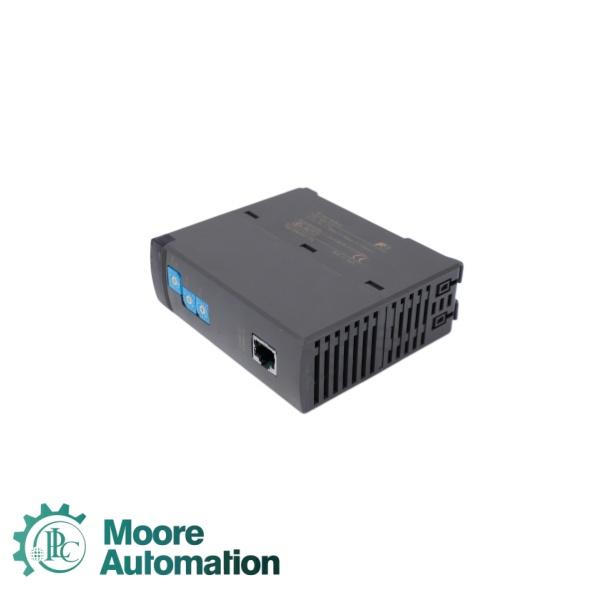

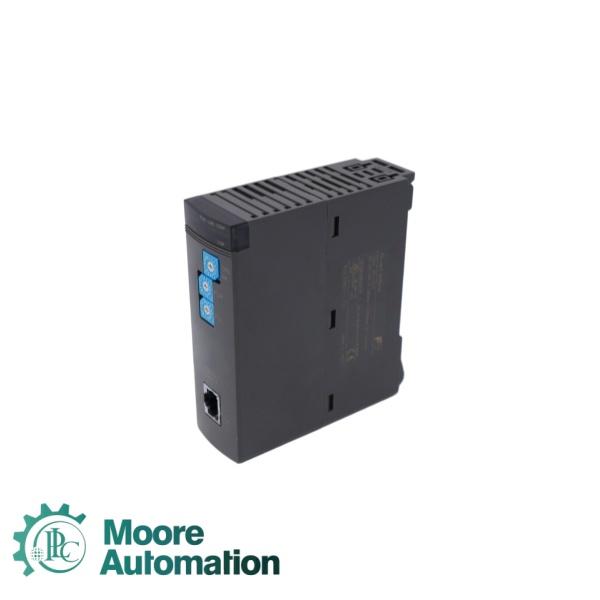

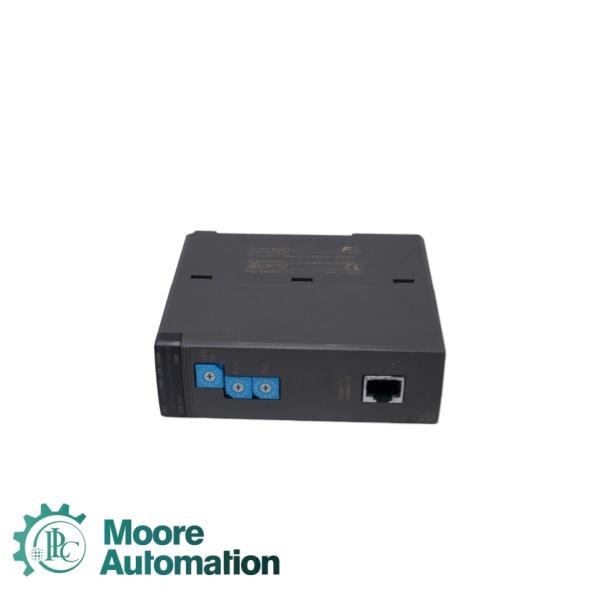

FUJI NP1L-TMB TM INTERFACE MODULE

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
JAPAN
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
JAPAN
Lead Time:
3-5 days

Product Detail

Sale Manager:	Email:	Mobile(WhatsApp):
Yuki Huang	Sales6@askplc.com	+86-17359287459

Item Details

Rated Supply Voltage:	24 V DC
Input Voltage Range:	21.6–26.4 V DC
Power Consumption:	≤6 W
Rated Current:	≤0.25 A
Operating Temperature:	0°C to +55°C
Storage Temperature:	-20°C to +70°C
Ambient Humidity:	5–95% non-condensing

Features

The FUJI NP1L-TMB is a dedicated communication interface module designed for industrial automation environments. It acts as a bridge to ensure stable data exchange and coordinated operation between TM series modules and the main control system .

·Core Function: Provides reliable connectivity between TM series expansion modules and the main PLC rack/system .

·Electrical Specifications:

Rated Supply Voltage: 24 V DC

Input Voltage Range: 21.6–26.4 V DC

Power Consumption: ≤ 6 W

Rated Current: ≤ 0.25 A

·Environmental Durability:

Operating Temperature: 0°C to +55°C

Storage Temperature: -20°C to +70°C

Ambient Humidity: 5–95% (Non-condensing)

·Physical Characteristics:

Dimensions: 3.4 x 9.8 x 10.5 cm

Weight: Approx. 0.15 kg

Q & A

Q: In the FUJI PLC ecosystem, what is the primary purpose of the NP1L-TMB Interface Module?

A: The primary purpose of the NP1L-TMB is to serve as a rack/coupler interface. When you need to expand input/output modules but lack physical space for extra modules in the main rack, you must connect a secondary rack to the main rack. The NP1L-TMB is the dedicated module used to connect these secondary racks to the main rack to communicate with the CPU .

Q: What are the specific power requirements for installing the FUJI NP1L-TMB?

A: The NP1L-TMB requires a rated supply voltage of 24 V DC. It is important to note that the module accepts a specific input voltage range of 21.6 to 26.4 V DC to account for industrial fluctuations. The module typically consumes less than 6W of power and draws a rated current of ≤ 0.25 A .

Q:What are the environmental limitations for deploying the FUJI NP1L-TMB module?

A: For reliable operation, the FUJI NP1L-TMB should be installed in environments ranging from 0°C to +55°C (operating temperature). If the system is powered down, the module can withstand storage temperatures from -20°C to +70°C. The allowable ambient humidity for both operation and storage is 5% to 95%, provided there is no condensation .

Q: How does the NP1L-TMB fit into the rack configuration of a FUJI PLC system?

A: The NP1L-TMB acts as the master interface for the expansion rack. In a standard configuration, the CPU resides in the main rack (often referred to as the "CPU Rack" or "Main Base"). When you require more I/O slots, you add an expansion rack. The NP1L-TMB is mounted on this expansion rack and connects back to the main rack via a dedicated cable, allowing the CPU to recognize and control the I/O modules on that secondary rack .
