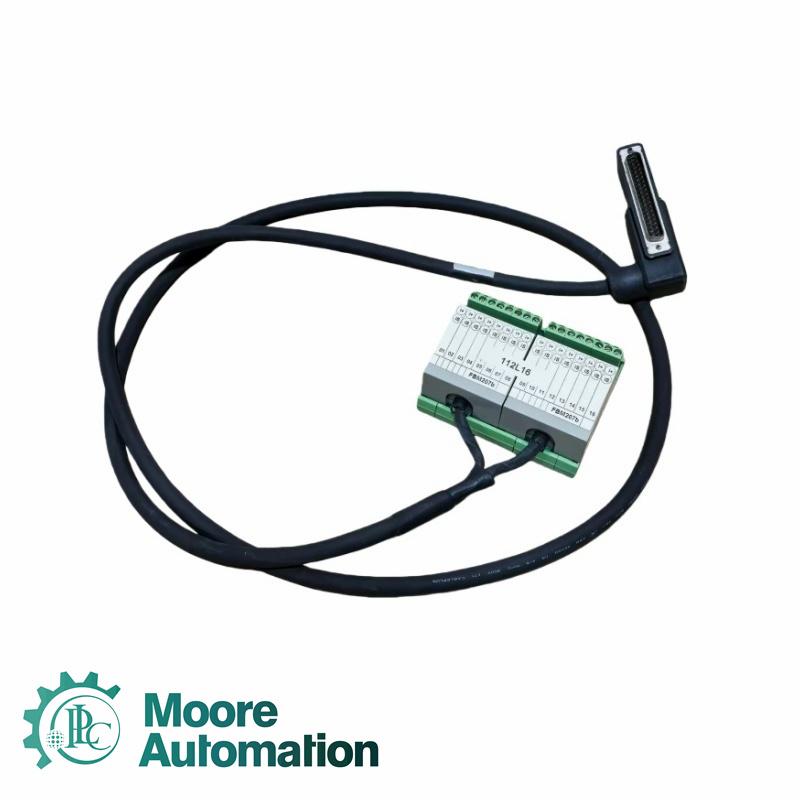

FOXBORO AD916JS FBM207b Voltage Monitor/Contact Sense Input Module

Sale Manager: John Yang →Email: sales3@askplc.com

                                        → Mobile(WhatsApp): 86-18150117685

Details------------------------------------------------------------------------------------------------------------------------

Input Channels: 16 isolated and independent
Open-Circuit Voltage: FBM207b 24V DC ±15%, FBM207c 48V DC ±15%
Short-Circuit Current: 3.2 mA (typical)
Logic One On-State Resistance: 1.0 kΩ (maximum)
Logic Zero Off-State Resistance: 100 kΩ (minimum)
Source Resistance Limits: Logic One 1 kΩ max at 15V DC, Logic Zero 100 kΩ min at 60V DC
Input Voltage Range (Redundant): 24V DC +5%, -10%
Maximum Power Consumption: 4 W
Maximum Heat Dissipation: 4 W
Loop Power Supply Protection: Current limited at 3.2 mA (typical)
Operating Temperature: -20 to +70°C (-4 to +158°F)
Relative Humidity (Operating): 5–95% (non-condensing)
Storage Temperature: -40 to +70°C (-40 to +158°F)
Relative Humidity (Storage): -5–95% (non-condensing)
Vibration: 7.5 m/s², 5–500 Hz
