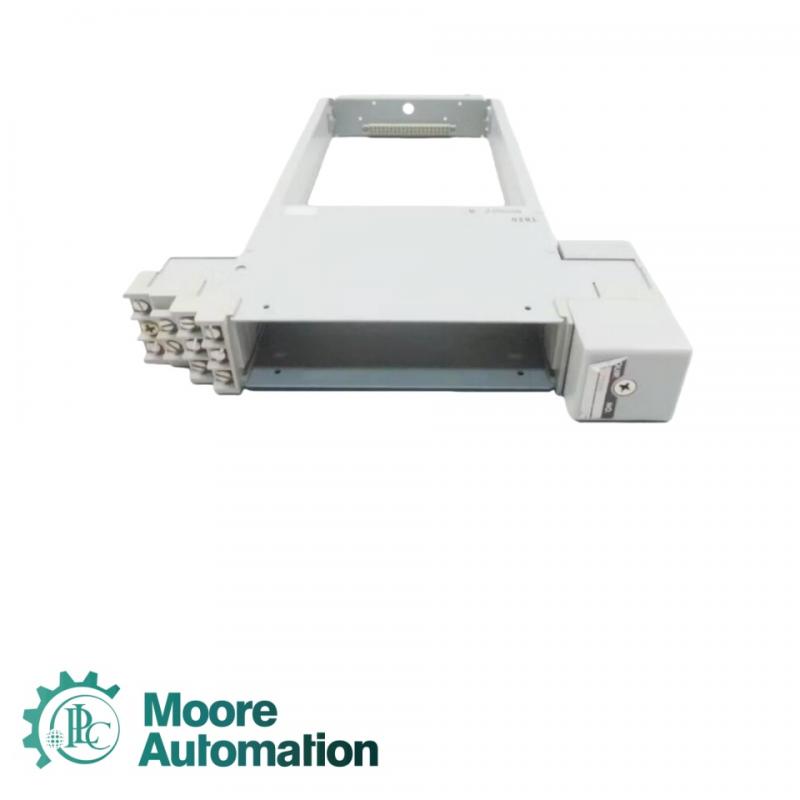

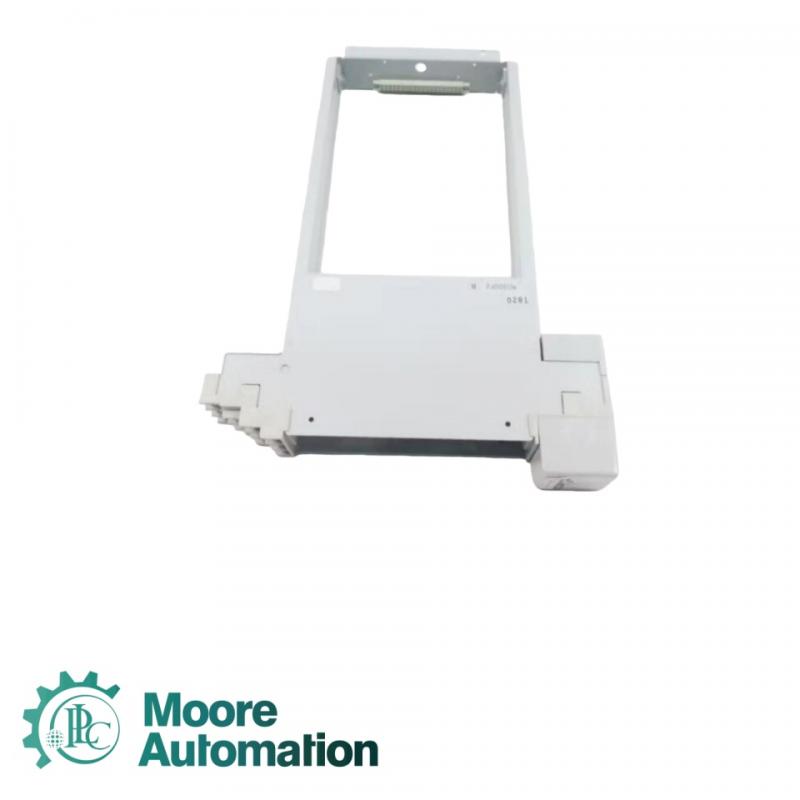

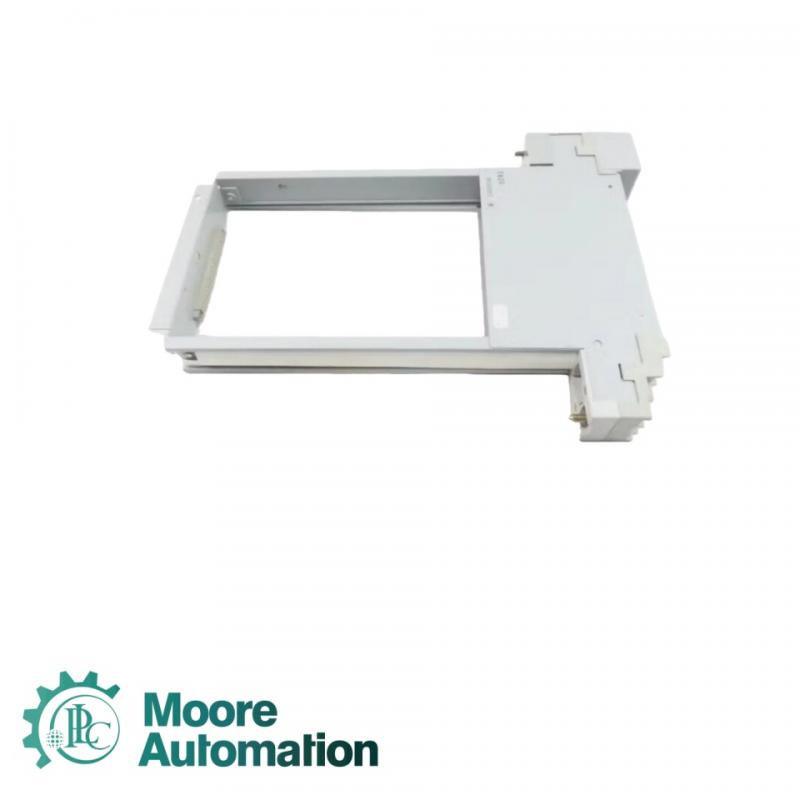

Foxboro 2AP N0300FZ Chassis Module

❖Please consult with John Yang

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

Foxboro 2AP N0300FZ Chassis Module is a rack mounted carrier/module framework designed specifically for industrial process control systems. It provides power bus, backplane connection, module slot positioning, and signal distribution as the basic structure for inserting and using various functional cards (such as I/O modules, power modules, communication modules) in the system. This module supports reliable rail installation, cooling management, and modular maintenance, and is suitable for chemical, oil and gas, power, pharmaceutical, and other large-scale automation systems.

Q1: What is the voltage range of the module?
A1: The module supports dual power supply of+5V DC and+24V DC, allowing for ± 5% and ± 10% voltage fluctuations, respectively used for low-voltage logic circuits and auxiliary power modules.

Q2: How much current can the module bus provide?
A2: The+5V bus can carry a maximum current of about 5A, and the+24V bus can carry about 2A. The total power consumption needs to be calculated based on the actual number of modules and load to avoid overload.

Q3: Does the module itself consume a lot of power?
A3: The self power consumption is about 5 watts. With 16 slots fully loaded, the total power consumption of the+5V bus can reach about 100 watts, and the+24V bus is about 48 watts.

Q4: Is the power supply evenly distributed between slots?
A4: Yes, the backplane bus design can provide stable power for each slot, but it is recommended to evenly distribute high-power modules to avoid single slot overload.

Moore Automation is committed to supplying high-quality automation control system components to the global manufacturing industry, ensuring the stable and continuous operation of customer production lines. The company maintains a strong internal inventory and also acts as a trusted distribution partner for multiple suppliers, dedicated to providing customers with the most suitable solutions. Even if a specific product is temporarily unavailable, you can submit a quotation request, and we will typically locate and deliver the required item promptly.
